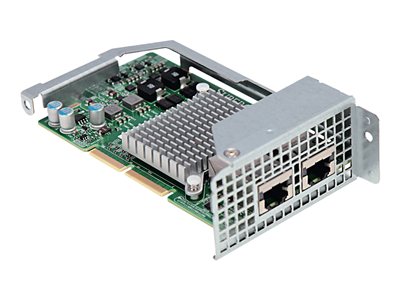

Supermicro AOC-CTG-I2T – network adapter – PCIe 2.1 x8 – 10Gb Ethernet x 2
Supermicro AOC-CTG-I2T – Network adapter – PCIe 2.1 x8 low profile – 10Gb Ethernet x 2
AED1,599.00
The Supermicro AOC-CTG-i2T is one of the lowest power and most cost effective 10GBase-T adapter solutions in today’s data center marketplace. The auto-negotiation feature between 1 GbE and 10 GbE provided by the AOC-CTG-i2T offers users the backwards compatibility they need for a smooth transition to 10 GbE. It reliably addresses the demanding needs of bandwidth intensive applications at a fraction of the cost of traditional 10 GbE adapters by utilizing cost-effective RJ-45 connectors at a much longer cabling distance.
| General |
|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express 2.1 x8 |
| PCI Specification Revision | PCIe 2.1 |
| Networking |
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Remote Management Protocol | SNMP, RMON |
| Features | Load balancing, packet filtering, MAC address filtering, Jumbo Frames support, Virtual Machine Device Queues (VMDq), PXE support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), checksum offload support, Intel QuickData Technology, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, iSCSI remote boot |
| Compliant Standards | IEEE 802.1Q |
| Processor / Memory |
| Processor | 1 x Intel x540 |
| Expansion / Connectivity |
| Interfaces | 2 x 10GBase-T – RJ-45 |
| Miscellaneous |
| Compliant Standards | RoHS |
| Power |
| Power Consumption Operational | 13 Watt |
| Software / System Requirements |
| Software Included | Intel PROSet |
| OS Required | FreeBSD, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Vista (32-bit versions), Microsoft Windows Server 2003 x64 Edition, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 32-bit Edition, Microsoft Windows Server 2012 x64 Edition |
| Dimensions & Weight |
| Depth | 4.8 in |
| Height | 1.6 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
