The Supermicro AOC-S100G-m2C provides exceptionally high performance at 100Gb/s Ethernet connectivity. Utilizing the Mellanox ConnectX-4 EN chipset with features that such as VXLAN and NVGRE, this card offers network flexibility, high bandwidth with specific hardware offload for I/O virtualization, and efficiently optimizes bandwidth demand from virtualized infrastructure in the data center or cloud deployments. The AOC-S100G-m2C supports the RoCE specification with CPU offload, delivering low-latency and high-efficiency over Ethernet networks. Supermicro Asset Management and thermal detection provide an extra layer of controller health management and peace of mind. The Supermicro AOC-S100G-m2C is the building block of choice for the next generation of high speed Ethernet data center networks.
Network Adapters

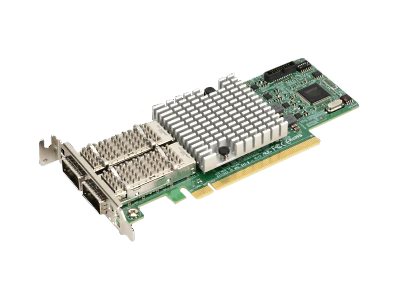

Supermicro AOC-S100G-M2C – network adapter – PCIe 3.0 x16 – 100 Gigabit QSFP28 x 2
Supermicro AOC-S100G-M2C – Network adapter – PCIe 3.0 x16 low profile – 100 Gigabit QSFP28 x 2
4,999.00 د.إ
General |
Device Type | Network adapter |
Form Factor | Plug-in card – low profile |
Interface (Bus) Type | PCI Express 3.0 x16 |
PCI Specification Revision | PCIe 3.0 |
Networking |
Ports | 100 Gigabit QSFP28 x 2 |
Connectivity Technology | Wired |
Data Link Protocol | 100 Gigabit Ethernet |
Data Transfer Rate | 100 Gbps |
Capacity | Jumbo frame size: 9.6 KB, Number of virtual functions: 256, Physical functions per port: 16, Ingress and egress QoS levels: 1000 |
Network / Transport Protocol | TCP/IP, UDP/IP |
Features | PXE support, LSO, LRO, RSS, SR-IOV, MSI-X, TSS, iSCSI boot, RoCE, NC-SI, VXLAN, NVGRE, RAID offload, Enhanced QoS, Erasure Coding offload, GENEVE support, NetQueue, MultipleQueue |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.3bm |
Processor / Memory |
Processor | 1 x Mellanox Technologies Mellanox ConnectX-4 EN |
Expansion / Connectivity |
Expansion Slots | 2 (total) / 2 (free) x QSFP28 |
Miscellaneous |
Compliant Standards | RoHS, IEEE 1588v2 |
Package Type | Retail |
Power |
Power Consumption Operational | 16.3 Watt |
Dimensions & Weight |
Depth | 6.6 in |
Height | 2.7 in |
Weight | 4.1 oz |
Environmental Parameters |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 131 °F |
