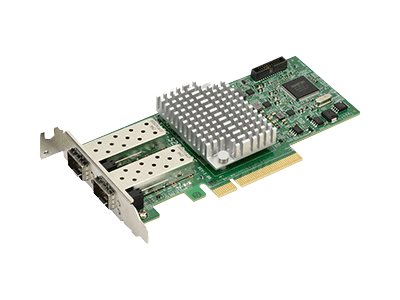

Supermicro AOC-S25G-m2S – network adapter – PCIe 3.0 x8 – 25 Gigabit SFP28 x 2


Supermicro AOC-S25G-m2S – Network adapter – PCIe 3.0 x8 low profile – 25 Gigabit SFP28 x 2

1,999.00 د.إ

The Supermicro AOC-S25G-m2S is an advanced 25GbE controller. Based on the Mellanox ConnectX -4 Lx EN chipset with features that such as VXLAN and NVGRE, it is backward compatible with 10GbE networks and addresses bandwidth demand from virtualized infrastructures in data center or cloud deployments. It supports the RoCE specification with CPU offload, delivering low-latency and high-performance over Ethernet networks. Supermicro Asset Management and thermal detection give an extra layer of controller health management and peace of mind. The Supermicro AOC-S25G-m2S high performance 25GbE adapter solution is an excellent choice to enhance network connectivity in data centers and enterprise environments.

SKU: AOC-S25G-M2S-O 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 3.0 x8
PCI Specification Revision PCIe 3.0
Networking
Ports 25 Gigabit SFP28 x 2
Connectivity Technology Wired
Data Link Protocol 25 Gigabit Ethernet
Data Transfer Rate 25 Gbps
Capacity Jumbo frame size: 9.6 KB
Number of virtual functions: 256
Physical functions per port: 16
Ingress and egress QoS levels: 1000
Network / Transport Protocol TCP/IP, UDP/IP
Features TCP/IP offloading, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, Energy Efficient Ethernet, checksum offload support, MSI-X, UDP/IP offloading, iSCSI remote boot, TSS, RoCE, PFC, NC-SI, VXLAN, NVGRE, Link Aggregation, RAID offload, VMware NetQueue and Microsoft VMQ, VLAN Tagging, Enhanced QoS
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3ax
Processor / Memory Processor: 1 x Mellanox Technologies Mellanox ConnectX-4 Lx EN
Expansion / Connectivity
Expansion Slots 2 (total) / 2 (free) x SFP28
Miscellaneous Compliant Standards: RoHS
Power Power Consumption Operational: 8.7 Watt
Software / System Requirements OS Required: FreeBSD, Microsoft Windows, CentOS, VMware ESX
Dimensions & Weight Depth: 5.6 in
Height: 2.7 in
Weight 3.16 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
