Network Adapters

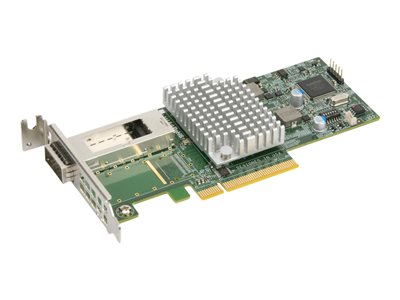

Supermicro AOC-S40G-i1Q – network adapter – PCIe 3.0 x8 – 40 Gigabit QSFP+ x 1
Supermicro AOC-S40G-i1Q – Network adapter – PCIe 3.0 x8 low profile – 40 Gigabit QSFP+ x 1
AED2,279.00
The S40G-i1Q is an advanced, market-leading 40Gb Ethernet controller. It extends virtualization beyond the server level to the network level. This, combined with hardware optimizations and off-loads, allows these controllers to enable rapid network provisioning in an agile data center. For customers who require faster and more reliable networking equipment, the AOC-S40G-i1Q is the best choice.
| Specification | Details |
|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Networking |
| Ports | 40 Gigabit QSFP+ x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 40 Gigabit Ethernet |
| Data Transfer Rate | 40 Gbps |
| Capacity | VLAN tags: 4096 |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, SCTP |
| Remote Management Protocol | SNMP, RMON |
| Features | Flow control, load balancing, VLAN support, packet filtering, IPv6 support, Accelerated iSCSI, VMDq, IPv4 support, teaming support, PXE support, SR-IOV, checksum offload support, MSI-X, iSCSI remote boot, VXLAN, NVGRE, Intel Flow Director, intelligent offloads |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP) |
| Processor / Memory |
| Processor | 1 x Intel XL710 |
| Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x QSFP+ |
| Miscellaneous |
| Compliant Standards | RoHS |
| Power |
| Power Consumption Operational | 6.5 Watt |
| Software / System Requirements |
| Software Included | Intel PROSet |
| OS Required | Red Hat Linux 7.0, Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2012 R2 (32/64 bits) |
| Dimensions & Weight |
| Depth | 5.9 in |
| Height | 2.7 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
There are no reviews yet.
