Supermicro AOC-STG-b2T – network adapter – PCIe 3.0 x8 – 10Gb Ethernet x 2

Add to Wishlist

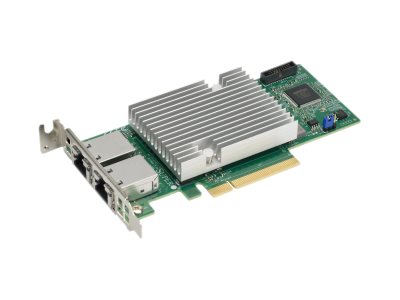

Supermicro AOC-STG-b2T – Network adapter – PCIe 3.0 x8 low profile – 10Gb Ethernet x 2

AED1,899.00

Add to Wishlist

Supermicro AOC-STG-b2T features Broadcom NetXtreme BCM57416 Ethernet controller that is designed for today’s rapid growing datacenter and cloud-scale applications. The auto-negotiation feature offers users backwards compatibility between 1GbE and 10GbE. The AOC-STG-b2T also features VXLAN, NVGRE and Geneve along with Broadcom TruFlow technology that enables users to reduce the CPU load and increase the VM density. In addition, NPAR (NIC Partitioning) technology provides flexible connectivity for different networking requirements. The Supermicro AOC-STG-b2T is a truly exceptional 10GbE Ethernet adapter for your continuously growing cloud applications and datacenters.

SKU: AOC-STG-B2T-O 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 3.0 x8
PCI Specification Revision PCIe 3.0
Networking
Ports 10Gb Ethernet x 2
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-T
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Network / Transport Protocol TCP/IP, UDP/IP, iSCSI
Features IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), PXE support, LRO, RSS, SR-IOV, NPAR, DCB, TSO, MSI-X, TSS, TCP/IP checksum offload, UDP/IP checksum offload, RoCE, VEPA, NC-SI, VXLAN, NVGRE, Link Aggregation, VEB, FLR, VLAN filtering, EEE, Mware NetQueue and Microsoft VMQ, Jumbo Frames support (up to 9600 bytes), VLAN Tagging, MCTP over SMBus, TruFlow, GENEVE support, Low Latency RDMA over RoCE
Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.3az-2010
Processor 1 x Broadcom BCM57416
Expansion / Connectivity
Interfaces 2 x 10GBase-T – RJ-45
Miscellaneous Compliant Standards: RoHS, IEEE 1588, 2011/65/EU
Power Power Consumption Operational: 13.1 Watt
Dimensions & Weight
Depth 5.6 in
Height 2.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
