Network Adapters

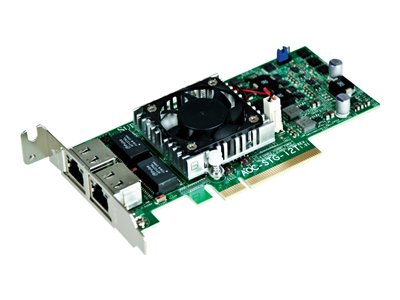

Supermicro AOC-STG-I2T – network adapter – PCIe 2.1 x8 – 10Gb Ethernet x 2
Supermicro AOC-STG-I2T – Network adapter – PCIe 2.1 x8 low profile – 10Gb Ethernet x 2
AED1,999.00
AOC-STG-I2 is a high-performance, dual-port 10 Gb network controller optimized for multi-core processor-based servers and virtualized environments. This adapter addresses the networking bottlenecks associated with server consolidation and is ideal for virtualization and demanding enterprise applications such as storage and high-performance computing. This excellent energy-efficient low-profile card is also an ideal choice to unify storage while maximize performance at the lowest TCO.
| General |
| Device Type | Network adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express 2.1 x8 |
| Bus Voltage | 3.3 V |
| Networking |
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Remote Management Protocol | SNMP, RMON |
| Status Indicators | Port transmission speed, link/activity |
| Features | Auto-negotiation, load balancing, VLAN support, IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), Jumbo Frames support, VMDq, PXE support, RSS, SR-IOV, TSO, Intel QuickData Technology, DCA, MSI-X, UDP/IP offloading, iSCSI remote boot |
| Compliant Standards | IEEE 802.1Q |
| Processor / Memory |
| Processor | 1 x Intel x540 |
| Expansion / Connectivity |
| Interfaces | 2 x 10GBase-T – RJ-45 |
| Compatible Slots | 1 x PCI Express 2.1 x8 – low-profile |
| Miscellaneous |
| Compliant Standards (cont’d) | RoHS |
| Power |
| Power Consumption Operational | 13 Watt |
| Software / System Requirements |
| Software Included | Drivers & Utilities, Intel PROSet |
| OS Required | FreeBSD, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, Microsoft Windows Server 2003 SP2 |
| Dimensions & Weight |
| Depth | 5.4 in |
| Height | 2.5 in |
