The STG-I4S is an advanced SFP+ controller. It expands virtualization beyond the server level to the network level, and combines with hardware optimizations and offloads. It provides incredible features for virtualization, flexibility for LAN and SAN networks, and reliable performance. This is a great choice for rapid provisioning of networks in an agile data center.
Network Adapters

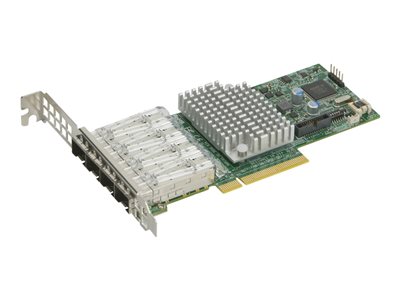

Supermicro AOC-STG-I4S – network adapter – PCIe 3.0 x8 – 10 Gigabit SFP+ x 4
Supermicro AOC-STG-I4S – Network adapter – PCIe 3.0 x8 low profile – 10 Gigabit SFP+ x 4
2,499.00 د.إ
General |
Device Type | Network adapter |
Form Factor | Plug-in card – low profile |
Interface (Bus) Type | PCI Express 3.0 x8 |
PCI Specification Revision | PCIe 3.0 |
Networking |
Ports | 10 Gigabit SFP+ x 4 |
Connectivity Technology | Wired |
Data Link Protocol | 10 Gigabit Ethernet |
Data Transfer Rate | 10 Gbps |
Capacity | Jumbo frame size: 9.5 KB, Tagged VLANs: 4096 |
Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
Remote Management Protocol | SNMP, RMON |
Features | Flow control, load balancing, VLAN support, IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), Jumbo Frames support, temperature sensor, VMDq, teaming support, PXE support, LSO, Energy Efficient Ethernet, tagged VLAN, MSI-X, SNMP support, VXLAN, NVGRE, Intel Flow Director |
Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 1588-2008 |
Processor / Memory |
Processor | 1 x Intel XL710-AM1 |
Expansion / Connectivity |
Interfaces | 4 x 10Gb Ethernet – SFP+ |
Miscellaneous | Included Accessories: Low-profile bracket, full-height bracket |
Compliant Standards | RoHS |
Power |
Power Consumption Operational | 8 Watt |
Software / System Requirements |
OS Required | Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2012 R2 (32/64 bits) |
Dimensions & Weight |
Depth | 5.9 in |
Height | 2.7 in |
Environmental Parameters |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 131 °F |
