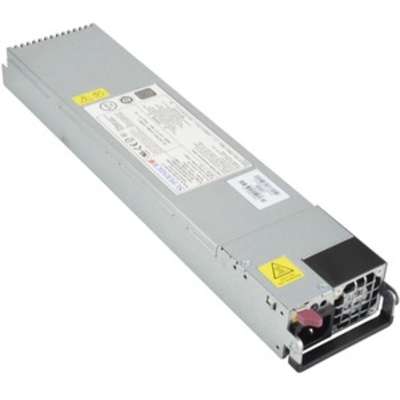

Supermicro PS PWS-920P-1R2 1u Platinum efficiency 920W 100-127 200-240VAC


  • PMBus 1.2 Support for Remote Management
  • Flexible Redundancy Control
  • 80 Plus Platinum
  • Supermicro Certified

AED1,599.00

The Supermicro PWS-920P-1R2 is an 80 Plus Platinum level redundant power supply capable of supplying 920W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

SKU: PWS-920P-1R2 Category: Tag:
Category Specification
Product Name Supermicro PS PWS-920P-1R2 1U Platinum efficiency 920W 100-127 200-240VAC
Product Model PWS-920P-1R2
Product Type Redundant Power Supply
Efficiency 94%
Input Voltage 120 V AC
230 V AC
Number of +12V Rails 1
Output Voltage 12 V DC
5 V DC
Output Voltage Detail 12 V DC @ 75 A
5 V DC @ 4 A
Output Current 75 A
4 A
Output Power 920 W
Form Factor 1U
Height 13.2″
Width 3″
Country of Origin China
Environmentally Friendly Yes
Energy Efficiency Certification 80 Plus Platinum
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
China Restriction of Hazardous Substances (China RoHS)
