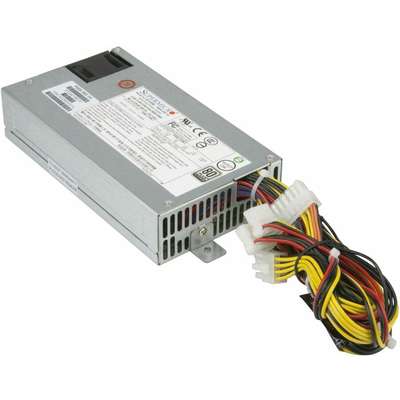

Supermicro PWS-350-1H

The Supermicro PWS-350-1H is an 80 Plus Platinum level power supply capable of continuously supplying 350W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. All materials contained comply with RoHS requirements and are certified by Supermicro.

Cables Included:

• 1x 24 Pin ATX (Motherboard)
• 1x 8 Pin 12V (CPU)
• 1x (4+4) 8 Pin 12V (CPU)
• 2x 4 Pin Legacy HDD


  Compatibility

  Supermicro Super Servers:

  • SYS-1019C-FHTN8
  • SYS-1019D-4C-FHN13TP
  • SYS-1019D-FHN13TP
  • SYS-5018R-M
  • SYS-5019C-M
  • SYS-5019C-M4L
  • SYS-5019C-MHN2
  • SYS-5019P-M
  • SYS-5019P-MT
  • SYS-5019S-M
  • SYS-5019S-M-G1585L
  • SYS-5019S-M2
  • SYS-5019S-ML
  • SYS-5019S-MN4
  • SYS-5019S-MT

  Supermicro Chassis:

  • CSE-512F-350B1
  • CSE-513BTQC-350B
  • CSE-513BTQC-350WB
  • CSE-515-350
  • CSE-813MFTQC-350CB
  • CSE-813MFTQC-350CB2


    Certifications & Standards

    • CRUus
    • CE
    • CCC
    • FCC
