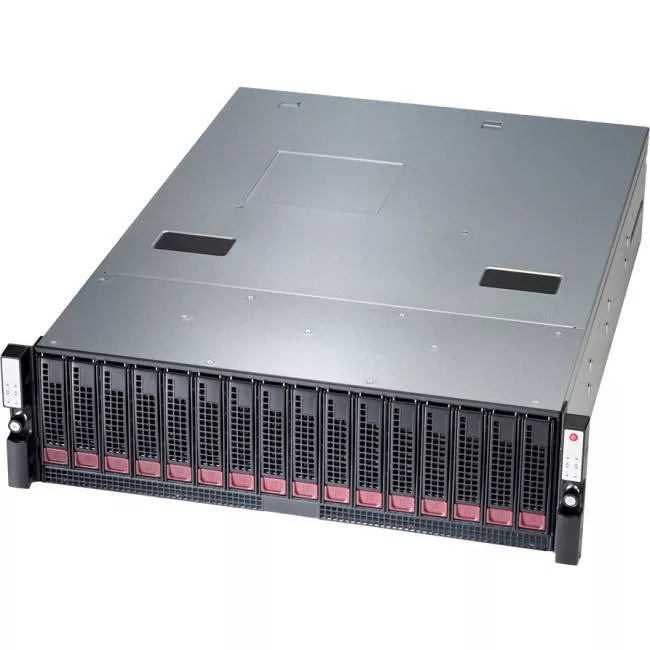

Supermicro SSG-6037B-CIB032 SuperStorage Bridge Bay NAS Server


  • Number of Total Expansion Bays: 16
  • Ethernet Technology: Gigabit Ethernet
  • Network (RJ-45): Yes
  • Processor Core: Quad-core (4 Core)

AED42,499.00

Windows Storage Server 2012 R2 on Supermicro High-Capacity 3U Cluster-in-a-Box

Supermicro’s 3U SuperStorage Bridge Bay running Windows Storage Server 2012 R2 Standard is a fully redundant, fault-tolerant Cluster-in-a-Box designed for mission-critical, enterprise storage.

Mission-Critical, Enterprise Storage at an Affordable Price

Part of Supermicro’s SuperStorage Bridge Bay (Super SBB) line, theSSG-6037B-CIB032is designed to provide reliable, enterprise-grade storage for SMB and remote office environments at an affordable price. Key features and benefits include:

  • Hot-swappable modules for all active components– including storage controllers, power supplies, and disk drives.
  • Ready-to-deploy– delivered with Windows Storage Server 2012 R2 Standard preinstalled and Failover Clustering preconfigured across the two compute nodes.
  • Native integration with Active Directory– enabling fast and easy deployment in existing Windows Server-based IT infrastructures.
  • Easily expanded– built-in expansion ports make it easy to connect up to four Super SBB 937R-E2JB JBODs, each of which supports 16x 3.5 SAS2/SATA3 drives. With theSSG-6037B-CIB032running Windows Storage Server 2012 R2 Standard, you’ll have access to the latest storage innovations from Microsoft, including:
  • Data Deduplication and Storage Spaces– for maximizing and scaling your storage capacity.
  • Storage Tiers, SMB Direct, SMB Multichannel, and NIC Teaming– for maximum performance.
  • Enhancements to Failover Clustering and Hyper-V– for improved reliability. For more information on all the capabilities built into Windows Storage Server 2012 R2 Standard.
SKU: SSG-6037B-CIB032 Category:
General Information
Manufacturer Supermicro Computer, Inc
Manufacturer Part Number SSG-6037B-CIB032
Manufacturer Website Address http://www.supermicro.com
Brand Name Supermicro
Product Line SuperStorage Bridge Bay
Product Name SuperStorage Bridge Bay NAS Server
Product Type NAS Storage System
Storage
Number Of Hard Drives Supported 16
Number Of Hard Drives Installed 8
Total Hard Drive Capacity Installed 32 TB
Hard Drive Interface Near Line SAS (NL-SAS)
Hard Drive RPM 7200
Hard Drive Configuration 8 x 4TB
Number Of Boot Drives 1
Processor & Chipset
Number Of Nodes 2
Number Of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2403 v2
Processor Core Quad-core (4 Core)
Processor Speed 1.80 GHz
Cache 10 MB
Memory
Standard Memory 32 GB
Memory Technology DDR3 SDRAM
Network & Communication
Ethernet Technology Gigabit Ethernet
I/O Expansions
Number Of Total Expansion Bays 16
Number Of 3.5″ Bays 16
Number Of Total Expansion Slots 3
Number Of PCI Express X8 Slots 3
Controllers
Controller Type Serial ATA/600, 6Gb/s SAS
RAID Supported Yes
RAID Levels JBOD
Interfaces/Ports
Network (RJ-45) Yes
Software
Operating System Windows Storage Server 2012 R2 Standard
Management & Protocols
Protocols IPMI 2.0
Power Description
Maximum Power Supply Wattage 920 W
Physical Characteristics
Product Color Black
Height 5.2″
Width 17.2″
Depth 25.5″
Form Factor Rack-mountable
Rack Height 3U
