Microscopes
Swift Advanced Trinocular Microscope M10T-P
Availability:
10 in stock
AED5,799.00
10 in stock

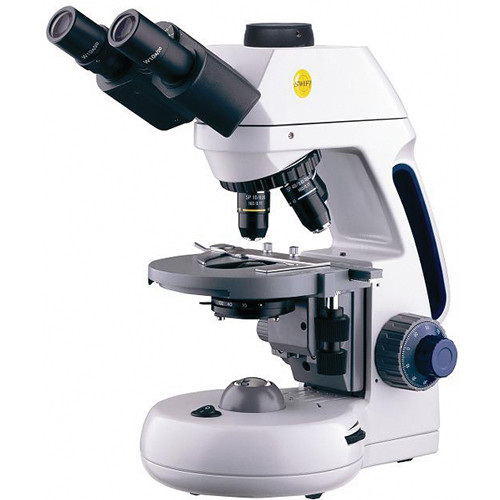

Swift M10T-P Advanced Trinocular Microscope
Product Highlights
- Plan Objectives
- 45 Degree Head
- 20mm Eyepieces
- Variable 3W LED Illumination
- Abbe 1.25 Condenser
- Coaxial, Fine, and Course Focusing
- Built-In MechanIcal Stage
- Limited Lifetime Warranty
Swift M10T-P Overview
The Swift Optical M10T-P Advanced Trinocular Microscope was designed with students in mind, featuring a durable body and a limited lifetime warranty. The M10T-P also features 4xd, 10xd, 40xrd, and 100xrd Plan; as well as ergonomic viewing, thanks to the 45° inclined head. The 3 eyepieces provide a 20mm field of view, and the Abbe 1.25 condenser and variable 3W LED light help to provide accurate views of specimens on the built-in mechanical stage.
- Ergonomic Siedentopft head with 45° incline
- 20mm eyepieces for increased field of view
- Integrated carry handle
- Energy-efficient LED illumination
- Objective options
- Variable, 3W LED provides bright, white illumination
- LED technology provides cool, energy-efficient light for up to 50,000 hours
- Abbe 1.25 condenser with iris diaphragm increased contrast for sharp, crisp images
- Coaxial, fine, and course focusing system offers ‘feather touch’ sensitivity
- Built-in low-drive, mechanical stage with smooth-moving, coaxial controls
- All-metal internal parts ensure long-term durability
- 142mm x 140mm stage with low profile ball-bearing mounted mechanical specimen holder with low-position coaxial controls
- Multi-phase condenser has rack & pinion focusing. Unit can be used for phase,dark field, bright field microscopy
- Swift Optical limited lifetime warranty covers defective parts and workmanship for the life of the product
Swift M10T-P Specs
| Microscope Type | Trinocular compound |
| Eyepiece | Widefield 10xd, 20mm |
| Objective(s) | 4xd, 10xd, 40xrd, 100xrd Plan |
| Light Source | Corded, 3V LED with dimmer switch |
| Focus Control | Coaxial coarse and fine focusing controls with tension adjustment (coarse) |
| Specimen Stage | Built-in mechanical |
| Lens (Condenser) | Abbe 1.25 rack and pinion |
| Power Supply | 110-220VAC |
| Dimensions | 14.5 x 10.2 x 6.7″ (37 x 26 x 17 cm) |
| Weight | 30.9 lb (14 kg) |
