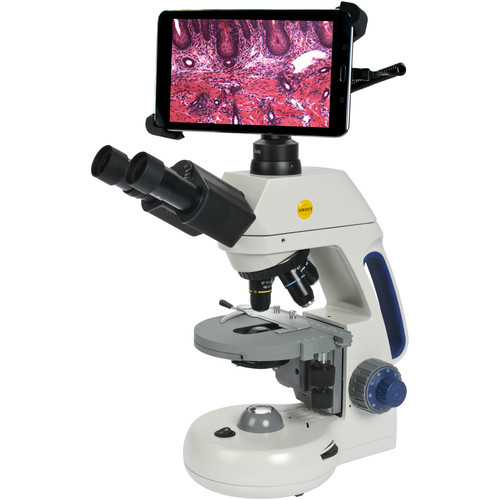

Swift Advanced Trinocular Microscope with 8″ Tablet M10T-BTW1-MP

Swift M10T-BTW1-MP Advanced Trinocular Microscope with 8″ Tablet

The Swift M10T-BTW1-MP digital binocular tablet microscopes offer a 5 mega pixel integrated digital camera with a 8″ LCD screen. Images and video files can be captured directly onto an SD card without the need for a computer. The LCD screen allows easy viewing of specimen and materials between lab partners sharing the microscope. The WiFi digital tablet creates a WiFi hotspot.

• Objective Lenses: Reversed quadruple nosepiece includes DIN standard 4x, 10x, 40xr and 100xr phase contrast objective lenses. All objectives are parfocaled, parcentered and color-coded.
• Eyepieces: Trinocular head with widefield 10x eyepiece with 20mm field of view. Diopter and interpupilary adjustment from 54mm – 76mm. Accepts 21mm diameter reticle, retaining ring required.
• Total Magnification: 40x, 100x, 400x, 1000x magnification.
• Condenser: Abbe 1.25 NA  condenser with rack and pinion focusing and iris diaphragm.
• Specimen Stage: Large 5.75″ x 5.5″ (142mm x 140mm) stage with a built-in, low profile ball-bearing mounted mechanical specimen holder with low-position coaxial controls.
• Focusing: Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.
• Illumination: Variable 3w LED illumination is a cool, energy efficient light that lasts up to 50,000 hrs. 110V~220V switching power supply.
• Size & Weight: 14.5″ (369mm) H x 10.25″ (261mm) D x 6.75″ (172mm) W, 31 lbs (14 kgs).
• Warranty: Swift Optical lifetime limited warranty covers defective parts and workmanship for the life of the instrument.
