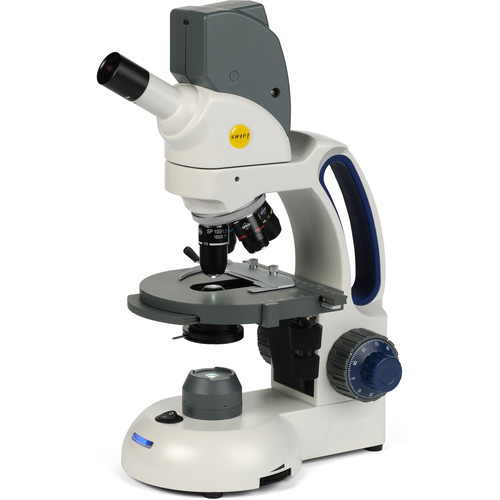

Swift Monocular Microscope M3702C-3DGLX

Swift M3702C-3DGLX Monocular Microscope M3702C-3DGLX

The Swift M3702C-3DGLX is a digital WiFi monocular compound microscope.  The built-in 1.3mp streaming WiFi camera creates its own wireless network that can be logged on to from an Android or iOS device to view, capture and edit live images from your microscope using the free MotiConnect app. The Swift WiFi M3700 also is equipped with its own on-board software that can be controlled with a web browser that allows image capture as well as measurement. The WiFi microscope also works with a WiFi enabled laptop running Windows XP or higher and using the included Motic Images software.

• Objective Lenses: DIN standard 4x, 10x, 40xR objectives.  All objectives are achromatic, parfocalled, parcentered and color-coded. Microscope objectives are mounted in ball-bearing quad turret in reverse position.
• Eyepiece: Monocular head holds widefield 10x / 18mm eyepiece. Eyetube is inclined 45°. Accepts 20mm diameter reticle.
• Total Magnification: 40x, 100x, 400x.
• Specimen Stage: Large 5.75″ x 3.75″ (143mm x 120mm) stage; built-in, low-profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.
• Condenser: 1.25 N.A. Abbe condenser with rack and pinion focusing, iris diaphragm.
• Focusing:  Separate coaxial coarse and fine focus knobs. Coarse focusing has tension adjustment, fine focus is graduated.
• Illumination: LED light rated up to 50,000 hours of life. 110V~220V switching power supply, shipped with American plug. Rechargeable batteries included and allow up to 500 recharges for a total of 20,000-25,000 hours use from a single set of 3 AA rechargeable nickel hydride batteries. Battery charger is included and automatically shuts off when batteries are fully charged. Single 8-hour charge provides up to 50 hours of use.
• Warranty: Lifetime warranty excluding bulb and cord. Camera – 1 yr. warranty, software, 90-day warranty.
