OPTICAL SYSTEM

• Widefield 10x /20mm eyepieces.

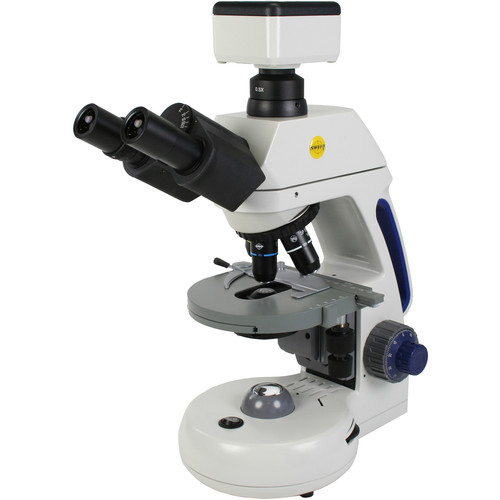

• Trinocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm.
• DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) plan objectives. All are parfocalled, parcentered and color-coded.
• Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides.

• Variable, 3 watt LED provides bright, white illumination.
• LED technology provides cool, energy-efficient light for up to 50,000 hours.

• 110V – 220V switching power supply, unit shipped with American plug.

• Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.

• Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.
• Multi-phase condenser has rack & pinion focusing. Unit can be used for phase, dark field, bright field microscopy.

• Base dimensions: 10-1/4 in. x 6-3/4 in. (261mm x 172mm)
• Height: 14-1/2 in. (369mm). Net wt. 30.9 lbs (14.0 kgs).

• Head and frame in molded styrofoam container with vinyl dustcover.
• Individual: Ship wt. 22 lbs (9.98 kgs), Dimensions 23x17x13 in. (58x43x33 cm.)
• Master carton pack 1 each: Ship wt. 49 lbs (19.05 kgs), Dimensions 24x21x16 in. (61x43x33 cm.)
