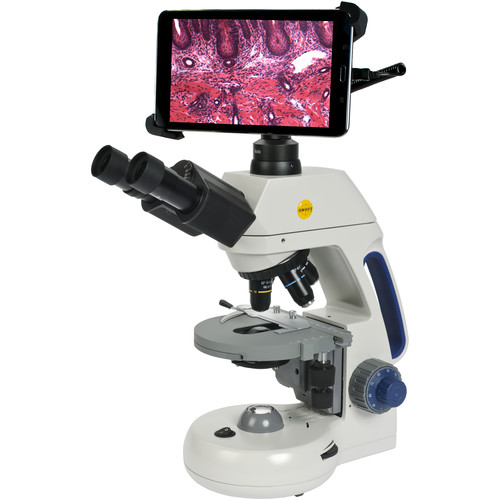

Swift Trinocular Microscope with 8″ Tablet M15T-BTW1-P

Introducing Swift Optical’s new line of digital compound microscopes with detachable 8″ tablet. The M15T-BTW1-P features infinity corrected optics, ideal for college laboratories, veterinary and medical applications. Supplied with Android based tablet system, this research level microscope also incorporates a halogen illumination system and wide field 20mm eyepieces for a very crisp image and unlimited possibilities.

Like the Moticam X3, this WiFi dgitial tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images with colleagues using WiFi tablets, wireless laptops, and HD-ready LCD monitors/projectors through HDMI. Tablet includes preloaded Motic apps.

• Widefield 10x /20mm eyepieces.
• Trinocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm.
• Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. (Only the 100xR objective is oil immersion.) PLAN lenses. All are parfocalled, parcentered and color-coded.
• Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides.
