SWIT S-4601 HDMI to SDI Converter

Add to Wishlist

1,199.00 د.إ

Add to Wishlist

The S-4601 Converter from SWIT is an HDMI to 3G/HD/SD-SDI converter. It supports HDMI audio embedded into SDI output and analog audio (3.5mm socket) input, embedded into SDI output. Protecting the BNC connectors, the S-4601 is housed in a heavy-duty housing. It features various screw threads at the bottom for convenient installation. The unit ships with a power supply.

Portable HDMI to 3G/HD/SD-SDI converter

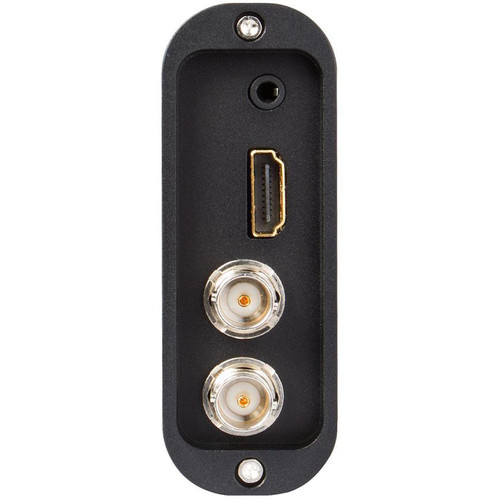

One HDMI input and two SDI outputs
One analog audio input via 3.5mm earphone socket
Embed HDMI audio to SDI output
Embed analog audio (3.5mm) to SDI output
Power/input/output status indicator
Heavy-duty housing

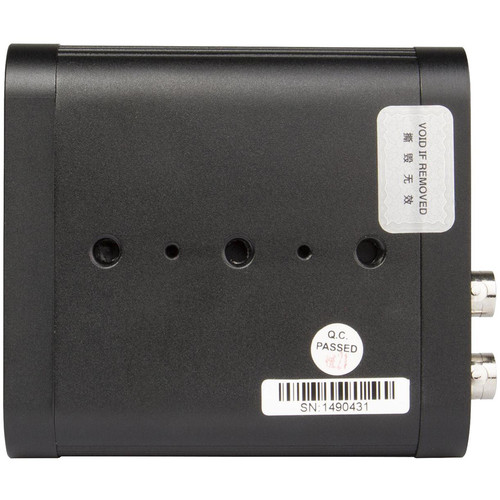

Bottom screw threads for convinient installation
SKU: S-4601 Category: Tag:
Input / Output
Input
1 x HDMI (1.3)
1 x analog audio via 3.5 mm connector
Output
2 x 3G/HD/SD-SDI via BNC
Format Support
SDI
SMPTE-425M:
1080p (60 / 59.94 / 50)

SMPTE-274M:
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-RP211:
1080PSF (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M:
720p (60 / 59.94 / 50)

SMPTE-125M:
480i (59.94)

ITU-R BT.656:
576i (50)
HDMI
480i
576i
720p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDCP
No
General
LED Indicators
Power: Red
HDMI Input Status: Green
SDI Output Lock: Yellow
Operating Voltage
6 to 18 VDC
Power Adapter (Included)
12 VDC; 5.5 mm barrel connector; center-pin positive
Power Consumption
ā‰¤3 W
Operating Temperature
32 to 158Ā°F (0 to 70Ā°C)
Operating Humidity
10 to 90%
Dimensions
2.9 x 2.9 x 1.1 cm (7.3 x 7.4 x 2.9 cm)
Weight
4.9 oz (138.5 g)
Packaging Info
Package Weight
1.1 lb
Box Dimensions (LxWxH)
6.5 x 4.7 x 3.2″
