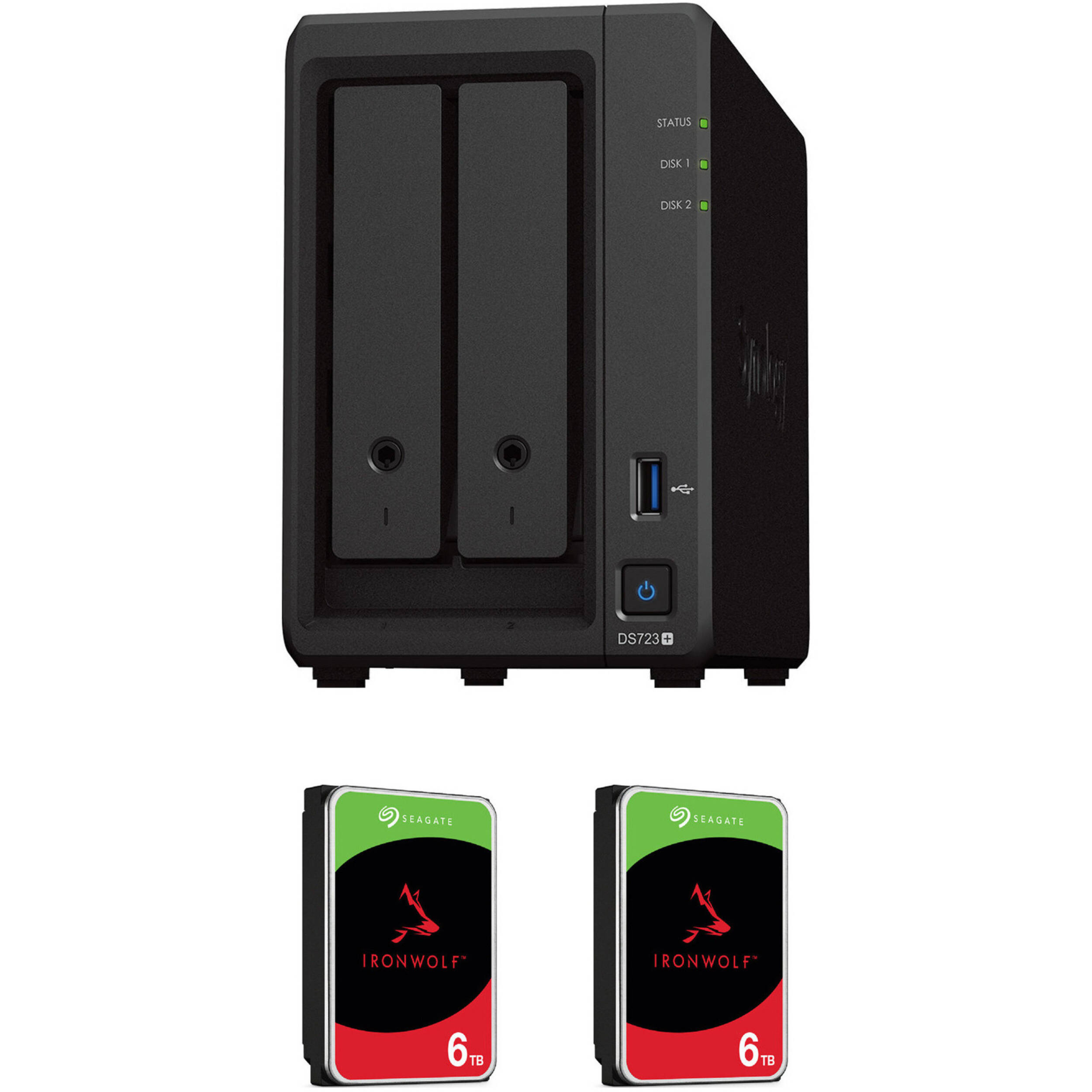

Synology 12TB DiskStation DS723+ 2-Bay NAS Enclosure Kit with Seagate NAS Drives (2 x 6TB)


Enjoy strong performance and versatility while expanding your storage capacity with theĀ Synology DiskStation DS723+ 2-Bay NAS Enclosure. Up to two separately purchased 2.5″ / 3.5″ SATA drives may be installed into this compact enclosure and configured for RAID 0, 1, Synology Hybrid, or JBOD modes. Two M.2 2280 SSD cache drives may also be installed to enhance performance, achieving maximum read and write speeds of 471 MB/s and 225 MB/s, respectively. The two Gigabit Ethernet ports may be linked together with link aggregation, allowing you to quickly backup and share data with connected devices.

AED3,545.00

Synology DS723+ IronWolf External HDDĀ Overview

ThisĀ B&H KitĀ combines theĀ Synology DiskStation DS723+ 2-Bay NAS EnclosureĀ with two Seagate 6TB IronWolf 5400 rpm SATA III 3.5″ Internal NAS HDDs for a storage capacity of 12TB.

Synology DiskStation DS723+ 2-Bay NAS Enclosure

Enjoy strong performance and versatility while expanding your storage capacity with theĀ Synology DiskStation DS723+ 2-Bay NAS Enclosure. Up to two separately purchased 2.5″ / 3.5″ SATA drives may be installed into this compact enclosure and configured for RAID 0, 1, Synology Hybrid, or JBOD modes. Two M.2 2280 SSD cache drives may also be installed to enhance performance, achieving maximum read and write speeds of 471 MB/s and 225 MB/s, respectively. The two Gigabit Ethernet ports may be linked together with link aggregation, allowing you to quickly backup and share data with connected devices.

The DiskStation DS723+ is designed for easy expansion so that it can adapt to your changing needs. This includes installing up to 32GB of ECC DDR4 memory and a 10G network upgrade module. The DiskStation Manager (DSM) operating system includes built-in file and photo management, data protection, virtualization, and surveillance solutions.

DiskStation DS723+
Performance
The Synology DiskStation DS723+ is powered by a 2.6 GHz AMD Ryzen R1600 dual-core processor with a 3.1 GHz boost speed and 2GB of ECC DDR4 memory to support fast and reliable data transfers. You can improve performance by installing up to a 32GB ECC DDR4 SO-DIMM memory module.
Network Connectivity
The two Gigabit Ethernet ports may be bonded using link aggregation, providing automatic network failover and load balancing. You may also add a 10G Network Upgrade Module to increase your bandwidth with compatible network devices.
Capacity Expansion
Connecting a separately available DX517 expansion unit to the eSATA port allows for a maximum of seven storage drives. External drives may also be connected to the USB-A 3.2 Gen 1 port.
Synology DiskStation Manager (DSM)
Data Protection & Integrity
Safeguard your critical data with the powerful storage management features of Synology DSM, built on the advanced Btrfs file system.

  • Advanced snapshot technology provides schedulable and near-instantaneous data protection for shared folders and LUNs.
  • File- and folder-level data restoration enables recovery of specific files or folders.
  • Flexible storage quota system helps admins manage available space by specifying storage limits for shared folders.
  • File self-healing detects and recovers corrupted files using mirrored metadata and RAID configurations.
  • Inline compression minimizes storage consumption and extends the life of drives by compressing data before it is written to the storage pool.
Data & Device Backup Solutions
Synology DSM comes standard with a complete package of backup solutions.

  • Active Backup Suite consolidates backup tasks and offers rapid restoration of Windows and Linux endpoints, VMs, Synology NAS, and SaaS applications.
  • Snapshot Replication creates point-in-time copies of shared folders and LUNs to protect them from accidental modifications or ransomware incidents.
  • Hyper Backup backs up your NAS data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options.
  • C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data.
Collaboration and Sharing Tools
Synology’s productivity suite provides a private cloud solution for on-site and remote workers to concurrently edit documents, share files, manage emails, send instant messages, and more.

  • Synology Drive is a cloud file management solution that supports file sharing, remote data access, cross-device and cross-site synchronization, on-demand file restoration, and backup.
  • The Synology Office extension lets users collaborate on documents, spreadsheets, and presentation slides in real time, supported by convenient options such as file versioning for easy restoration and password protection.
  • Synology Photos serves as a media organization hub for enthusiasts and professionals looking to efficiently manage and share their photos and videos through intuitive browsing options and secure sharing methods.
  • Synology Hybrid Share combines reliable on-premises storage and efficient syncing of shared folders in the cloud to enable seamless cross-site synchronization and local file access at LAN speed.
Private Video Surveillance
Synology Surveillance Station transforms the DS723+ into a powerful Network Video Recorder (NVR) solution with support for up to 40 IP cameras.

  • 8,300+ supported camera models.
  • ONVIF support for a broader selection of cameras.
  • Private, subscription-free storage of recordings.
  • Access through web browsers, desktop clients, or mobile apps.
  • Event-based rules to trigger specific actions.
  • Email, SMS, and push notification options.
Virtualization & Certified Storage
Your DS723+ can serve as virtual machine storage, VM backup server, and a lightweight container and VM host. It is fully certified as storage for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments.

  • Synology Storage Console for VMware or Windows platforms lets you manage VM storage components directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer.
  • Host light containers and VMs for testing, sandboxing, and emergency recovery purposes with Docker and Synology Virtual Machine Manager, a native hypervisor that supports Windows, Linux, and Virtual DSM10.

UPC: 846504004447
Seagate 6TB IronWolf 5400 rpm SATA III 3.5″ Internal NAS HDD (CMR, OEM)

Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, theĀ 6TB IronWolf 5400 rpm SATA III 3.5″ Internal NAS HDD (CMR)Ā fromĀ SeagateĀ is built to withstand 24×7 operations, or 8760 hours per year. This 6TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 5400 rpm, a 3.5″ form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 190 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1014Ā non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.

General Features
Optimized for NAS with AgileArray
AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
Reduced Lag Times
Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
Multi-User Environments
IronWolf provides a workload rate of 180TB per year, which means that multiple users can upload and download data to the NAS server, knowning that IronWolf can handle the workload, whether you are a creative professional or small business
Designed for Always-On, Always-Accessible 24/7 Performance
Access data on your NAS virtually any time, whether remotely or on site
Cache Memory
IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
1.0 Million Hours MTBF | Limited 3-Year Warranty
This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
Designed for 24×7 Performance
Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
1-8 bay business network attached storage (NAS)
Desktop RAIDs and servers
Multimedia server storage
Private cloud
Category: Tag:

Synology DiskStation DS723+ 2-Bay NAS EnclosureĀ Specs

Computing
CPU 2.6Ā toĀ 3.1 GHz Dual-Core
Processor AMD Ryzen RĀ 1600
Total Installed Memory 2 GB ECC DDR4
User-Replaceable Memory 1 xĀ 2 GB
Total Memory Slots 1 xĀ SO-DIMM
Maximum Memory Capacity 32 GB
General
Number of Bays 2 xĀ 2.5″/3.5″
2 xĀ M.2 (2280)
I/O 1 xĀ USB-A (USB 3.0 / 3.1/3.2 Gen 1 (5 Gb/s))
1 xĀ eSATA
2 xĀ RJ45 (Gigabit Ethernet)
Compatible Drive Interface SATA
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, JBOD, Synology Hybrid
Hot-Swap Support Yes
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CalDAV
FTP
NFS
SMB
SNMP
SSH
Telnet
WebDAV
iSCSI
iSCSI LUN 256
iSCSI Target 128
Max Concurrent Connections 350
Max Folders 512
Max Groups 256
Max User Accounts 2048
Max Volume Number 64
Max Cameras Supported 40
Software
Installed Operating System Synology DiskStation Manager
Supported File Systems Internal: BTRFS, EXT4
External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility Windows
macOS
Android
iOS
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible Yes
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Safari
Security
Encryption AES-NI
Security Features Kensington Security Slot
VPN Client Connections 40
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 8 to 80%
Operating Altitude 16,400′ / 4998Ā m
Storage Temperature -4 to 140°F / -20 to 60°C
Storage Humidity 5 to 95%
Physical
Status Monitoring LED Indicator
Cooling 1 xĀ Fan
Built-In Speakers None
IR Sensor None
Dimensions 8.8 x 6.5 x 4.2″ / 223 x 166 x 106Ā mm
Weight 3.3Ā lb / 1.5Ā kg
Packaging Info
Package Weight 5.4 lb
Box Dimensions (LxWxH) 11.9 x 11.8 x 4.8″

Seagate 6TB IronWolf 5400 Rpm SATA III 3.5″ Internal NAS HDD (CMR, OEM)Ā Specs

Storage Capacity Total: 6 TB SATA III (6 Gb/s) 3.5″ HDD (5400 rpm)
Read Speed Maximum: 190 MB/s
Write Speed Maximum: 190 MB/s
Buffer 256 MB
Latency 4.2 ms
HDD Specs
Heads 8
Platters 4
Areal Density 900 Gb/in²
Noise Level 2.7 dB (Active)
2.6 dB (Idle)
Reliability / Data Integrity
Annualized Failure Rate (AFR) 0.87 %
Encryption None
Endurance (Total Bytes Written) 180 TB
Load/Unload Cycles 600,000
Mean Time Between Failures (MTBF) 1.0 Million Hours
Non-Recoverable Read Errors per Bits Read 1 in 1014
Electrical
Power Draw 5.3 W (Active)
3.4 W (Idle)
0.25 W (Standby)
Supported Voltage 5 VDC, 12 VDC
Current 1.8 A at 12 VDC
Environmental
Operating Temperature 41 to 158°F / 5 to 70°C
Operating Shock 70 G / 2.0 ms
Storage Shock 250 G / 2.0 ms
Operating Vibration 3.0 G / 5 to 500 Hz
General
Certifications FCC, UL, cUL
*as per Manufacturer
Dimensions 5.79 x 4 x 1″ / 146.99 x 101.6 x 26.1Ā mm
Weight 1.3Ā lb / 610Ā g
Packaging Info
Package Weight 1.68 lb
Box Dimensions (LxWxH) 8.9 x 6.1 x 3″
