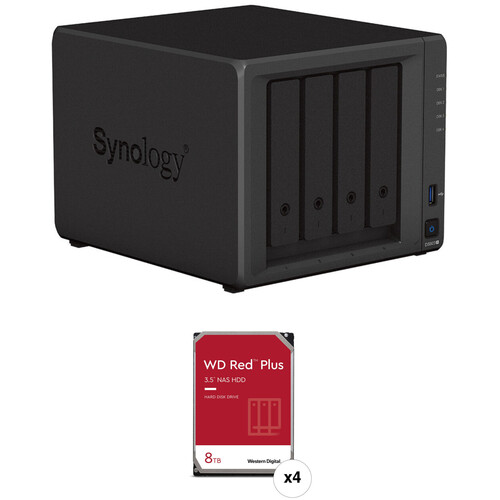

Synology 32TB DS923+ 4-Bay NAS Enclosure Kit with WD NAS Drives (4 x 8TB)

Add to Wishlist

This B&H Kit combines the Synology DS923+ 4-Bay NAS Enclosure with four WD 8TB Red Plus 5640 rpm SATA III 3.5″ Internal NAS HDDs for a storage capacity of 32TB.

6,200.00 د.إ

Add to Wishlist

This B&H Kit combines the Synology DS923+ 4-Bay NAS Enclosure with four WD 8TB Red Plus 5640 rpm SATA III 3.5″ Internal NAS HDDs for a storage capacity of 32TB.

Synology DS923+ 4-Bay NAS Enclosure

The DS923+ 4-Bay NAS Enclosure from Synology is a capable solution that can be adjusted and expanded as your needs change, with optional support for up to nine drives, faster networking, and two M.2 2280 NVMe PCIe 3.0 x4 SSD slots for caching or additional storage pools. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance. The DS923+ is equipped with four drive bays that are capable of natively supporting 3.5″ SATA III hard drives, as well as 2.5″ SATA III hard drives and SSDs.

The DS923+ runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system that helps to simplify managing your Synology NAS. Its CPU is a 2.6 GHz AMD Ryzen R1600 Dual-Core with a burst frequency of up to 3.1 GHz, and its 4GB of DDR4 RAM, which can be upgraded to 32GB, allows frequently used files and applications to be quickly accessed. This NAS is capable of sequential read speeds up to 625 MB/s and sequential write speeds up to 559 MB/s.

Also featured are two USB-A 3.2 Gen 1 ports that allow it to be connected to external storage or other USB devices, an eSATA port for the DX517 expansion unit, and network connectivity is achieved via the dual integrated Gigabit Ethernet ports that support link aggregation and failover, allowing your stored data to be shared with users throughout the network. For those who require RAID support, the DS923+ supports RAID 0, 1, 5, 6, and 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

The DS923+ is engineered to be energy efficient and its dual 92 x 92mm fans to help keep the system running cool at all times. The server supports numerous scheduled power on/off cycles and hard drive hibernation to further minimize power consumption and operation expenses.

The Synology DiskStation DS923+ 4-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, an AC power adapter, an AC power cord, and two RJ45 LAN cables. It is protected by a limited 3-year warranty.

Versatile Storage for Any Purpose
The DS923+ comes out of the box with intuitive and comprehensive file management, media organization, and backup options, making it ideal for IT enthusiasts, creative professionals, and business owners looking for a powerful and compact storage system.
Up to 625 MB/s sequential read and 559 MB/s sequential write performance enable fast file sharing, syncing, streaming, and backup for multiple users.
Supports 4 x 3.5″ or 2.5″ SATA HDD/SSD, expandable to 9 drives with one Synology DX517 expansion unit
Up to 32GB of DDR4 ECC memory offers protection against potential crashes and inadvertent changes in data through automatic correction of data errors.
Two Gigabit RJ45 ports can be bonded using Link Aggregation to provide automatic network failover and load balancing.
Maximize return on investment by upgrading your storage platform as more demanding needs arise with two built-in M.2 NVMe SSD slots and an optional 10GbE RJ-45 Network Upgrade Module.
Built for Data Protection and Integrity
Safeguard your critical data with the powerful storage management features of Synology DSM, built on the advanced Btrfs file system.
Advanced snapshot technology provides schedulable and near-instantaneous data protection for shared folders and LUNs.
File and folder-level data restoration enables recovery of specific files or folders.
Flexible storage quota system helps admins manage available space by specifying storage limits for shared folders.
File self-healing detects and recovers corrupted files using mirrored metadata and RAID configurations.
Inline compression minimizes storage consumption and extends the life of drives by compressing data before it is written to the storage pool.
Complete Data and Device Backup Solutions
Synology DSM comes standard with a complete package of backup solutions available at no extra cost.
Active Backup Suite consolidates backup tasks and offers rapid restoration of Windows and Linux endpoints, VMs, Synology NAS, and SaaS applications.
Snapshot Replication creates point-in-time copies of shared folders and LUNs to protect them from accidental modifications or ransomware incidents.
Hyper Backup backs up your NAS data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options.
C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data.
Powerful Collaboration and Sharing Tools
Synology’s productivity suite provides a private cloud solution for on-site and remote workers to concurrently edit documents, share files, manage emails, send instant messages, and more.
Synology Drive is a cloud file management solution that supports file sharing, remote data access, cross-device and cross-site synchronization, on-demand file restoration, and backup.
The Synology Office extension lets users collaborate on documents, spreadsheets, and presentation slides in real time, supported by convenient options such as file versioning for easy restoration and password protection.
Synology Photos serves as a media organization hub for enthusiasts and professionals looking to efficiently manage and share their photos and videos through intuitive browsing options and secure sharing methods.
Synology Hybrid Share combines reliable on-premises storage and efficient syncing of shared folders in the cloud to enable seamless cross-site synchronization and local file access at LAN speed.
Private Video Surveillance
Synology Surveillance Station transforms the DS923+ into a powerful Network Video Recorder solution with support for up to 40 IP cameras.
8300+ supported camera models.
ONVIF support for a broader selection of cameras.
Private, subscription-free storage of recordings.
Access through web browsers, desktop clients, or mobile apps.
Event-based rules to trigger specific actions
Email, SMS, and push notification options
Virtualization and Certified Storage
Your DS923+ can serve as virtual machine storage, VM backup server, and a lightweight container and VM host. It is fully certified as storage for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments.
Synology Storage Console for VMware or Windows platforms lets you manage VM storage components directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer.
Host light containers and VMs for testing, sandboxing, and emergency recovery purposes with Docker and Synology Virtual Machine Manager, a native hypervisor that supports Windows, Linux, and Virtual DSM.

UPC: 846504004454
WD 8TB WD80EFZZ Red Plus SATA III 3.5″ Internal NAS HDD (CMR, Retail)

Built with the power to handle small- to medium-sized business NAS environments and increased workloads to SoHo (Small Office and Home Office) customers, the 8TB Red Plus SATA III 3.5″ Internal NAS HDD from WD is made for archiving and sharing, as well as RAID array rebuilding on systems using ZFS and other file systems in NAS arrays with 1-8 bays. This 8TB drive operates using a SATA III 6 Gb/s interface, and a 128MB cache, all of which help to ensure uninterrupted data transfers with a sustained rate of up to 185 MB/s. This drive also features high levels of reliability, with 600,000 load/unload cycles, <1 in 1014 non-recoverable read errors per bits read, error recovery controls, and 1 million hours MTBF. Also built into this drive are noise and vibration protection and WD’s NASware 3.0 helps increase system compatibility, allowing WD Red Plus drives to be more easily integrated with your existing network infrastructure.

General Features
Tackle Intensity with WD Red Plus
Packed with the power to handle the small- to medium-sized business NAS environments and increased workloads for SOHO customers, WD Red Plus is madefor archiving and sharing, as well as RAID array rebuilding on systems using ZFS and other file systems. Built and tested for up to 8-bay NAS systems, this drive gives you flexibility, versatility, and confidence in storing and sharing your home and work files.
For Small and Medium Businesses
Stream, backup, share, and organize your digital content with a NAS and WD Red Plus drive designed to share content with the devices at your home or business. NASware 3.0 technology increases your drive’s compatibility with your existing network and devices. For larger businesses with up to 24 bays, upgrade to WD Red Pro drives.
NASware 3.0
Not just any drive will do. Get a large storage capacity in your 8-bay system and with Western Digital’s NASware 3.0 technology, you can optimize each and every drive. Built into every WD Red Plus hard drive, NASware 3.0’s advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.
Built for NAS Compatibility
WD Red Plus drives with NASware technology takes the guesswork out of selecting a drive. Optimized for NAS environments, WD’s algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red Plus drive is compatible with a wide range of NAS enclosures.
3D Active Balance Plus
WD’s enhanced dual-plane balance control technology improves the overall drive performance and reliability. Hard drives that are not properly balanced may cause excessive vibration and noise in a multi-drive system, reduce the hard drive life span, and degrade performance over time.
24/7 Environments
Since your NAS system is always on, a reliable drive is essential. With an MTBF of up to 1 million hours, WD Red Plus is engineered to tackle 24/7 environments.
Premium Support and a Limited 3-Year Warranty
Confidently upgrade your NAS performance with the assurance of a limited 3-year warranty, coupled with the support services included with every WD Red Plus drive.

UPC: 718037900476
SKU: DS923 32TB Category: Tag:

Synology DS923+ 4-Bay NAS Enclosure Specs

Computing
CPU 2.6 to 3.1 GHz Dual-Core
Processor AMD Ryzen R1600
Total Installed Memory 4 GB ECC DDR4
User-Replaceable Memory 1 x 4 GB
Total Memory Slots 2 x SO-DIMM
Maximum Memory Capacity 32 GB
General
Number of Bays 4 x 2.5″/3.5″
2 x M.2 (2280)
I/O 2 x RJ45 (Gigabit Ethernet)
2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1 (5 Gb/s))
1 x eSATA
Compatible Drive Interface SATA III, NVMe
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid
Hot-Swap Support Yes
PCI Expansion 1 x PCIe 3.0 x2
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CalDAV
FTP
HTTPS
L2TP
NFS
OpenVPN
PPTP
Rsync
SFTP
SMB
SNMP
SSH
SSL
TFTP
Telnet
WebDAV
iSCSI
iSCSI LUN 256
iSCSI Target 128
Max Concurrent Connections 1000
Max Folders 512
Max Sync Tasks 32
Max Groups 256
Max User Accounts 2048
Max Volume Number 64
Max Cameras Supported 40
Software
Installed Operating System Synology DSM
Supported File Systems Internal: BTRFS, EXT4
External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility Windows
macOS
Linux
Android
iOS
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Safari
Supported Languages Brazilian Portuguese
Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption AES-NI
Security Features Kensington Security Slot
VPN Server Connections 40
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Power Consumption 35.51 W (Typical)
11.52 W (Standby)
PSU Wattage 1 x 100 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 8 to 80%
Operating Altitude 16,404′ / 5000 m
Storage Temperature -5 to 140°F / -20 to 60°C
Storage Humidity 5 to 95%
Certifications FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC
*as per Manufacturer
Physical
Status Monitoring LED Indicator
Cooling 2 x 92 mm Fan
Noise Level 22.9 dBA
Built-In Speakers None
Dimensions 8.78 x 7.83 x 6.54″ / 223.01 x 198.88 x 166.12 mm
Weight 4.9 lb / 2.2 kg
Packaging Info
Package Weight 7.985 lb
Box Dimensions (LxWxH) 11.6 x 10.3 x 9.7″

WD 8TB WD80EFZZ Red Plus SATA III 3.5″ Internal NAS HDD (CMR, Retail) Specs

Storage Capacity 8 TB SATA III (6 Gb/s) 3.5″ HDD (5640 rpm)
Read Speed Maximum: 185 MB/s
Write Speed Maximum: 185 MB/s
Buffer 128 MB
HDD Specs
Noise Level 30.0 dB (Active)
25.0 dB (Idle)
Reliability / Data Integrity
Encryption None
Endurance (Total Bytes Written) 180 TB
Load/Unload Cycles 600,000
Mean Time Between Failures (MTBF) 1.0 Million Hours
Non-Recoverable Read Errors per Bits Read 1 in 1014
Electrical
Power Draw 6.2 W (Active)
4.1 W (Idle)
0.4 W (Standby)
Supported Voltage 5 VDC, 12 VDC
Current 1.85 A at 12 VDC
Environmental
Operating Temperature 32 to 149°F / 0 to 65°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Shock 70 G / 2.0 ms
Storage Shock 250 G / 2.0 ms
General
Certifications RoHS
*as per Manufacturer
Dimensions 5.79 x 4 x 1.02″ / 147.07 x 101.6 x 25.91 mm
Weight 1.65 lb / 0.75 kg
Packaging Info
Package Weight 1.815 lb
Box Dimensions (LxWxH) 7.9 x 5.6 x 2.5″
