Synology 48TB RX418 NAS Expansion Unit Kit with Seagate NAS Drives (4 x 12TB)

Add to Wishlist
Key Features
  • 48TB Storage Capacity
  • 4 x 12TB 7200 rpm SATA III 3.5″ HDDs
  • For the Synology RS818+ & RS818RP+
  • For the Synology RS815+ & RS815RP+
  • For the Synology RS816 & RS815
  • 4 x 3.5″/2.5″ SATA Drive Bays
  • 1 x eSATA Port
  • Hot-Swappable Drives
  • RAID Management through Synology DSM

AED6,799.00

Add to Wishlist

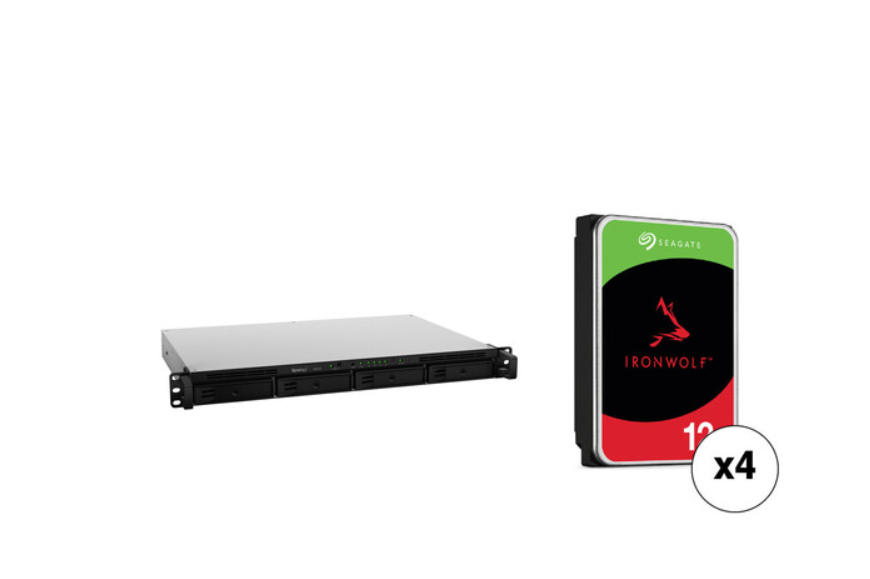

This B&H Kit combines the Synology RX418 4-Bay Expansion Unit with four Seagate 12TB IronWolf 7200 rpm SATA III 3.5″ hard drives for a total storage capacity of 48TB.

Synology RX418 4-Bay Expansion Unit

The RX418 4-Bay Expansion Unit from Synology is designed to provide storage expansion for their RS818+ RS818RP+, RS815+, RS815RP+, RS816, and RS815 NAS arrays. It can also be used as a dedicated local backup destination for Synology 1 RU RackStation arrays for comprehensive data protection.

The four drive bays of the RX418 natively support 3.5″ and 2.5″ SATA hard drives and SSDs. The drives are hot-swappable and there is also RAID management through Synology Disk Station Manager. The RX418 is equipped an eSATA port, which allows for connectivity with your host NAS, and operates using a 100W power supply that run using 100-240 VAC at 50/60 Hz. Included is an accessory pack, an AC power cord, and an eSATA cable.

General Features
Storage Capacity Expansion
When the storage capacity on a Synology 1 RU RackStation reaches its limit, Synology’s RX418 expansion unit provides easy capacity expansion by adding four 3.5″/2.5″ SATA drives to the system. The Synology RX418 can also be used as a dedicated local backup destination of a Synology 1 RU RackStation for comprehensive data protection.
Plug-and-Play Design
Simply connect the Synology RX418 to a corresponding Synology RackStation and it is ready to use. Drives in the connected Synology RX418 operate as though they were internal to the connected Synology NAS and can be managed directly by Synology DiskStation Manager (DSM), with no additional software installation required.
Green and Easy to Manage
Synology’s DSM provides an intuitive user interface for easy system management. Drive hibernation can be configured in DSM to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the installed drives.

UPC: 846504002986
Seagate 12TB IronWolf 3.5″ Internal NAS Drive

Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 12TB IronWolf 7200 rpm SATA III 3.5″ Internal NAS HDD (CMR) from Seagate is built to withstand 24×7 operations, or 8760 hours per year. This 12TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5″ form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.

General Features
Optimized for NAS with AgileArray
AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
IronWolf Health Management
IronWolf Health Management focuses on prevention, intervention, and recovery
Reduced Lag Times
Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
Rotational Vibration (RV) Sensors
IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
Multi-User Environments
IronWolf provides a workload rate of 180TB per year, which means that multiple users can upload and download data to the NAS server, knowning that IronWolf can handle the workload, whether you are a creative professional or small business
Designed for Always-On, Always-Accessible 24/7 Performance
Access data on your NAS virtually any time, whether remotely or on site
Cache Memory
IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
1.0 Million Hours MTBF | Limited 3-Year Warranty
This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
Designed for 24×7 Performance
Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
1-8 bay business network attached storage (NAS)
Desktop RAIDs and servers
Multimedia server storage
Private cloud
SKU: SYRX41848TBI (B&H Kit) Categories: ,
General
Number of Bays 4 x 2.5″/3.5″
I/O 1 x eSATA
Compatible Drive Interface SATA III
Media Card Slots None
Maximum Filled Capacity 48 TB
Hot-Swap Support Yes
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 100 VDC
Power Source AC Adapter
Power Consumption 23.26 W (Typical)
6.39 W (Standby)
Environmental
Operating Temperature 40 to 95°F / 4 to 35°C
Operating Humidity 5 to 95%
Storage Temperature -5 to 140°F / -21 to 60°C
Physical
Cooling 3 x 40 mm Fans
Noise Level 25.1 dBA
Weight 9.4 lb / 4.3 kg
Packaging Info
Package Weight 12.5 lb
Box Dimensions (LxWxH) 20.7 x 15.7 x 5.6″

Seagate 12TB IronWolf 3.5″ Internal NAS Drive Specs

HDD Specs
Heads 15
Noise Level 2.8 dB (Active)
1.8 dB (Idle)
Reliability / Data Integrity
Encryption None
Endurance (Total Bytes Written) 180 TB
Load/Unload Cycles 600,000
Mean Time Between Failures (MTBF) 1.0 Million Hours
Non-Recoverable Read Errors per Bits Read 1 in 1015
Electrical
Power Draw 7.8 W (Active)
5.0 W (Idle)
0.8 W (Standby)
Supported Voltage 5 VDC, 12 VDC
Current 1.8 A at 12 VDC
Environmental
Operating Temperature 32 to 149°F / 0 to 65°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Shock 70 G / 2.0 ms
Storage Shock 250 G / 2.0 ms
General
Certifications FCC, UL, cUL
*as per Manufacturer
Dimensions 5.78 x 4.01 x 1.02″ / 146.81 x 101.85 x 25.91 mm
Weight 1.52 lb / 0.69 kg
Physical
Storage Capacity Total: 12 TB SATA III (6 Gb/s) 3.5″ HDD (7200 rpm)
Read Speed Maximum: 210 MB/s
Write Speed Not Specified by Manufacturer
Buffer 256 MB
Packaging Info
Package Weight 1.75 lb
Box Dimensions (LxWxH) 8.8 x 6.1 x 3″
