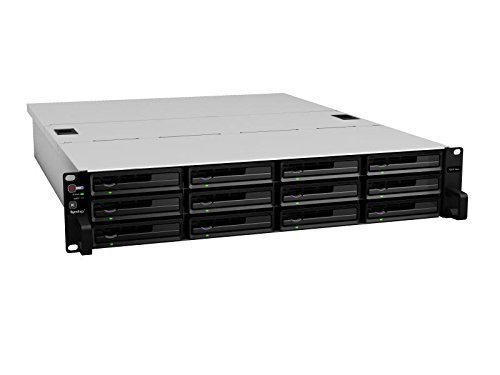

Synology America RackStation 12-Bay Network Attached Storage with iSCSI (RS3614RPxs)
Synology America RackStation 12-Bay Network Attached Storage with iSCSI (RS3614RPxs)

Synology America RackStation 12-Bay Network Attached Storage with iSCSI (RS3614RPxs)

Availability:

30 in stock
Add to Wishlist

AED21,299.00

30 in stock

Add to Wishlist

Synology America RackStation 12-Bay Network Attached Storage with iSCSI (RS3614RPxs)



  • Scale up to 180TB with Synology RX1214/RX1214RP
  • Quad 10GbE support with Dual PCIe slots
  • Expandable ECC RAM module (up to 32GB)
  • SATA III 6Gb/s interface support
  • SSD Cache Technology boosts throughput
  • High Availability and Disaster Recovery solutions
  • Running on Synology Disk Station Manager (DSM)
  • Redundant Power Supply Unit



Ultra-high performance

RS3614xs/RS3614RPxs delivers ultra-high performance at 2,822.58 MB/s throughput and 225,749 IOPS under RAID 5 configuration.1 RS3614xs/RS3614RPxs is equipped with 4GB RAM and up to 32GB ECC RAM expansion support, so enterprises can guarantee data accuracy as well as superior ultra-high performance for the mission-critical tasks of the business.

(Unit: MB/Sec)
3000

2500

2000

1500

1000

500


  Read Write

Robust scalability up to 216TB

With 12 HDD trays and support for adding up to two Synology RX1214/RX1214RP2 expansion units, RS3614xs/RS3614RPxs provides the ability to seamlessly expand up to 216TB3 of total storage capacity and expand a single volume up to 108TB on the fly. When the storage capacity of RS3614xs/RS3614RPxs nears it limit, expansion is easily accomplished as it supports up to 36 HDDs or SSDs. RS3614xs/RS3614RPxs provides enterprises flexible capacity and balanced performance to meet the needs of varying applications and processes.

Four 10GbE ports and SATA III 6Gb/s support

In addition to the default 4 Gigabit ports, RS3614xs/RS3614RPxs comes with dual PCI Express 3.0 x8 slots (white running at x8 mode, black running at x4 mode), allowing installation of dual 10GbE Network Interface Cards (NIC) for maximized bandwidth. Dual PCIe slots for quad 10GbE ports support brings you the superior performance that data-intensive applications demand of your storage system. Coming with native SATA III 6Gb/s support, RS3614xs/RS3614RPxs ensures the optimum data process under heavy system loading.

Reliable redundancy mechanisms

RS3614xs/RS3614RPxs comes with comprehensive redundancy mechanisms to ensure your business continuity. Built-in four LAN ports with failover provides the reliable redundancy in the event of unexpected network failure. The high reliability system design including fan-less CPU heat-sink and passive cooling technologies prevents single point of failure. Other features such as redundant data paths, power supplies, system fans, and network ports with failover support ensure continual service uptime.

Hardware encryption engine enhances file transfer speeds

RS3614xs/RS3614RPxs is equipped with an encryption engine which offloads encryption calculation tasks away from the main CPU. Thus, the CPU can be free for other important tasks. In addition, Advanced Encryption Standard (AES) on shared folders with hardware acceleration ensures security without compromising access performance, providing over 2,485MB/s in reading.

SSD cache technology

RS3614xs/​RS3614RPxs enables the combination of hard drives and read/write-optimized SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache reading and writing support, RS3614xs/​RS3614RPxs offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement.

5 year warranty

Synology RS3614xs/RS3614RPxs is backed with Synology’s 5-year limited warranty. With technical support and hardware replacement service, the five-year warranty maximizes your enterprises’ return on investment. For the entire duration, you will enjoy technical support via e-mail and telephone.

Award winning OS – DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology’s Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Fit into business environments easily

With the support of Windows AD, LDAP, and Domain Trust, RS3614xs/​RS3614RPxs enables seamless account integration. The User Home feature can automatically create a “home” folder for every user account to minimize the administrator’s effort in repeatedly creating “home” folders for all accounts. Windows ACL support on RS3614xs/​RS3614RPxs allows IT administrators to fine tune access controls and set up privileges to files and folders on RS3614xs/​RS3614RPxs through the familiar Windows user interface. With compatibility for major protocols, RS3614xs/​RS3614RPxs can eliminate server configuration overhead and enhance IT administrators’ efficiency. Learn more

Seamless storage solution for virtualization environments

RS3614xs/​RS3614RPxs provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, RS3614xs/​RS3614RPxs helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.

Unified storage system

RS3614xs/​RS3614RPxs enables businesses to cost-effectively manage multi-protocol data by integrating file-level (NAS) and block-level (SAN) storage into one unified storage system. Files can be shared across Windows®, Mac®, and Linux® platforms seamlessly with comprehensive network protocol support (CIFS/SMB, AFP, and NFS). RS3614xs/​RS3614RPxs provides a cost-effective iSCSI solution, allowing large scale businesses to consolidate storage into data center storage arrays. With thin provisioning available for file-level iSCSI LUN, you can maximize storage utilization by oversubscribing provisions and grow storage space as needed.

Protection by LUN backup, snapshot, and clone

RS3614xs/​RS3614RPxs enhances the ease of moving and copying data in a virtualized environment with the features – LUN Backup, LUN Snapshot, and LUN Clone. RS3614xs/​RS3614RPxs offers iSCSI LUN backup at storage level without extra charge. Synology LUN Clone and LUN Snapshot only take up 1/1000 of the original size which highly optimizes storage usage. In addition, Synology’s LUN Snapshot lets you create up 256 snapshots per LUN using point-in-time technology without having any impact on system performance. With better support to servers under VMware vSphere or Windows environment, IT managers can expect guaranteed VM status and data consistency through application-consistent snapshots.

Synology CMS (Central Management System)

For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.

Increase business productivity with cloud solutions

With comprehensive cloud solutions, RS3614xs/​RS3614RPxs lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology’s 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key.

Ensuring business continuity

Uninterrupted availability is a critical goal for all businesses. RS3614xs/​RS3614RPxs supports Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular “heartbeats” between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, RS3614xs/​RS3614RPxs also ensures redundancy in the event of unexpected network failure.

Secure your data

RS3614xs/​RS3614RPxs offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, RS3614xs/​RS3614RPxs provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.




Notes:
_____

  1. Tested with 4 X 10 GbE connections using VLAN and fully loaded with Intel 520 Series 240GB 2.5” SSD. The performance figures vary on different environments.
  2. RS3614xs/​RS3614RPxs supports up to two Synology RX1214/RX1214RP, purchased separately.



CPU
CPU Model INTEL Core i3-4130
CPU Frequency Dual Core 3.4 GHz
Floating Point
Hardware Encryption Engine (AES-NI)
Memory
System Memory 4 GB DDR3 ECC
Memory Module Pre-installed 2 GB X 2
Total Memory Slots 4
Memory Expandable up to 32 GB (8 GB X 4)
Storage
Drive Bay(s) 12
Maximum Drive Bays with Expansion Unit 36
Compatible Drive Type
  • 3.5″ SATA III / SATA II HDD
  • 2.5″ SATA III / SATA II HDD
  • 2.5″ SATA III / SATA II SSD
Maximum Internal Raw Capacity 72 TB (6 TB HDD X 12) (Capacity may vary by RAID types) (See All Supported HDD)
Hot Swappable Drive
External Ports
USB 2.0 Port 2
USB 3.0 Port 2
Expansion Port 2
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
Appearance
Size (Height X Width X Depth) 88 mm X 445 mm X 570 mm
88 mm X 445 mm X 570 mm (for RP model)
Weight 13.3 kg
15.4 kg (for RP model)
Others
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
Wake on LAN/WAN
PCIe x8 Slot for Network Card (See more) 2 (white at x8 mode, black at x4 mode)
System Fan 80 mm X 80 mm X 4 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Wireless Support (dongle)
Noise Level* 40.5 dB(A)
42.2 dB(A) (for RP model)
Power Recovery
Scheduled Power On/Off
Power Supply Unit / Adapter 500W
2 X 400W (for RP model)
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 HZ, Single Phase
Power Consumption* 97.42 W (Access)
57.48 W (HDD Hibernation)
101.02 W (Access, for RP model)
62.73 W (HDD Hibernation, for RP model)
British Thermal Unit 332.41 BTU/hr (Access)
196.12 BTU/hr (HDD Hibernation)
344.69 BTU/hr (Access, for RP model)
214.04 BTU/hr (HDD Hibernation, for RP model)
Redundant Power Supply (for xs+ and RP model)
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class A
  • CE Class A
  • BSMI Class A
Warranty 5 Years
Notes Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
DSM Specifications ( See more )
Storage Management
Maximum Single Volume Size
  • 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
Maximum Internal Volume Number 1024
Maximum iSCSI Target Number 64
Maximum iSCSI LUN 512
iSCSI LUN Clone/Snapshot, Windows ODX
RAID Group
Supported RAID Type
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID 1
  • RAID 5
  • RAID 6
Volume Expansion by Adding a HDD
  • RAID 5
  • RAID 6
  • JBOD
Global Hot Spare Supported RAID Type
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
SSD Support
SSD Read/Write Cache (White Paper)
File Sharing Capacity
Maximum User Accounts 16000
Maximum Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 16
Maximum Concurrent CIFS/AFP/FTP Connections 1024
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
High Availability Manager
Log Center
Syslog Events per Second 3000
Virtualization
VMware vSphere 5 with VAAI
Windows Server 2012
Windows Server 2012 R2
Citrix Ready
Notes Performance figures could vary on different environments.
Add-on Packages (See more)
Antivirus Essential
Antivirus by McAfee (Trial)
Audio Station
Central Management System
Cloud Station
Maximum Concurrent File Transfers 1024
Cloud Sync
Directory Server
DNS Server
Download Station
Maximum Concurrent Download Tasks 80
Glacier Backup
HiDrive Backup
iTunes Server
Java Manager
Mail Server
Mail Station
Media Server
DLNA Compliance
Note Station
Photo Station
RADIUS Server
Surveillance Station
Maximum IP cam (Licenses required) 75 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 2250 FPS @ 720p (1280×800)
650 FPS @ 1080p (1920×1080)
450 FPS @ 3M (2048×1536)
200 FPS @ 5M (2591×1944)
Total FPS (MJPEG)* 600 FPS @ 720p (1280×800)
240 FPS @ 1080p (1920×1080)
150 FPS @ 3M (2048×1536)
150 FPS @ 5M (2591×1944)
Time Backup
Maximum Task Number 16
Video Station
Video Transcoding Group 1 (See more)
VPN Server
Maximum Connections 30
Notes Surveillance Station throughput is tested with Axis P1347 (H.264@1280×720@30FPS), using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. Recording video is saved every 5 minutes with the limit of archive folder up to 1GB.
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Welcome Note X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • AC Power Cord X 2 (for RP model)
Optional Accessories
  • Remote
  • Camera License Pack
  • 4GB (2GB X 2) ECC RAM Module Kit
  • 8GB (4GB X 2) ECC RAM Module Kit
  • 16GB (8GB X 2) ECC RAM Module Kit
  • Expansion Unit: RX1214/RX1214RP X 2
  • VS240HD
  • Synology RKS1314 – Rail Kit Sliding
  • Synology Ethernet Adapter E10G15-F1
