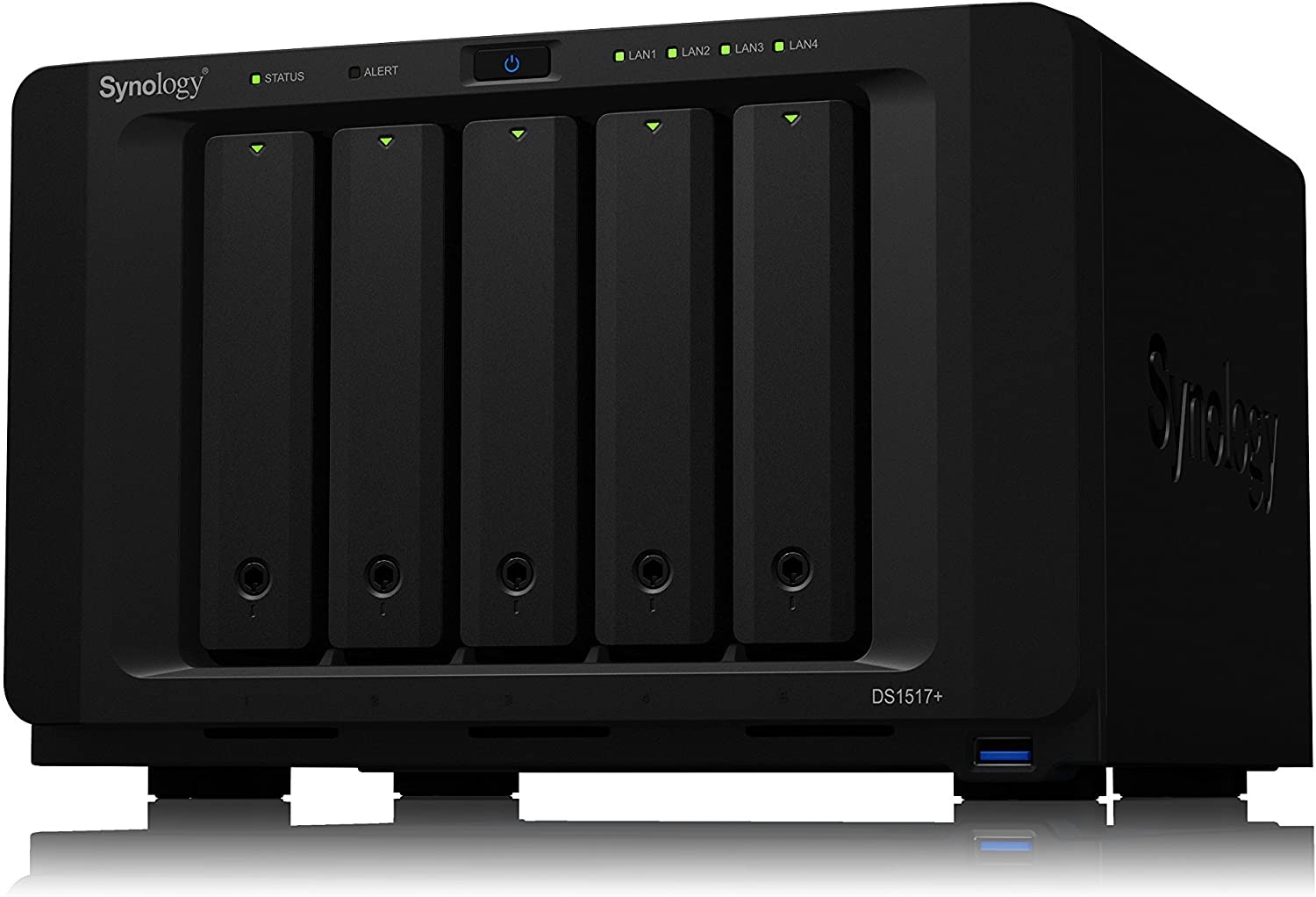

Synology DiskStation DS1517-PLUS NAS Server


4,499.00 د.إ

Synology DiskStation DS1517+ 5-Bay SATA Quad Core AES-NI NAS Server -Brand New

Synology Diskstation DS1517+ 5-bay Network Attached Storage Server includes …

  • 2x USB 3.0 ports
  • 4x eSATA ports
  • 4x Ethernet RJ45 1GbE LAN ports
  • 8GB DDR3 Ram Expandable to 16GB (8GB x 2)
  • 5 drive bays, expandable to 15 when paired with an expansion unit
  • Intel Atom C2538 Quad Core 2.4 GHz CPU
  • Accepts 3.5″ and 2.5″ SATA hard drives and 2.5″ SATA solid state drives.
  • Encryption capable

DiskStation DS1517+

High performance NAS optimized for encryption and intensive tasks

Centralized storage solution with outstanding performance
Synology DiskStation DS1517+ is a 5-bay NAS powered by a quad-core CPU with AES-NI hardware encryption engine. Coming with quad 1GbE LAN ports, it can be installed with a 10GbE network interface card (NIC) or a dual M.2 SSD adapter card, thereby enhancing network speeds or boosting performance with SSD cache.

Supercharge your storage with speedy performance
Equipped with dual-channel memory and a PCIe slot, DS1517+ supports installing the dual M.2 SSD adapter card, M2D17, or the 10GbE NIC, for high-IOPS system cache and ultra-fast data transmission respectively.

Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:

  • Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
  • Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
  • File or folder level data restoration makes data recovery fast and flexible
  • Automatic file self-healing detects and recovers corrupted files without user intervention.

Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any environment.

Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component

SKU: DS1517-PLUS Category: Tags: ,
Model Number DS1517-PLUS
Alt Model Number DS1517+
Bay Provided
Free Qty 5
Total Qty 5
Cable Details
Connectivity Details Type Network cable
Included Qty 2
Chassis
Installed Devices Modules Qty 0
Supported Devices Modules Qty 5
Dimensions & Weight
Depth 9.6 in
Height 6.5 in
Weight 9.83 lbs
Width 9.8 in
Environmental Parameters
Humidity Range Operating 5 – 95%
Max Operating Temperature 104 °F
Min Operating Temperature 41 °F
Expansion Bays
Form Factor 2.5″ / 3.5″
Form Factor (metric) 6.4 cm / 8.9 cm
Type Hot-swap
Slot Type PCI Express x8
Header
Brand Synology
Compatibility Mac , PC
Manufacturer Synology
Model DS1517+ / DS1517-PLUS
Product Line Synology Disk Station
Miscellaneous
Color Category Black
Compliant Standards BSMI Class B , FCC Class B certified , RoHS
Encryption Algorithm SSL , TLS
Features Built-in 2 cooling fans , Hardware encryption , Wake on LAN
Connectors
  • (4) Type A USB 3.0
  • RJ-45 (2) Ethernet 1000Base-T
  • (2) eSATA
Networking
Compliant Standards DLNA CERTIFIED
Data Link Protocol Ethernet , Fast Ethernet , Gigabit Ethernet
Features Access Control List (ACL) support , Anti-malware protection , Anti-virus protection , Apple Time Machine compatible , Backup server , Cloud backup , DLNA support , E-mail alert , File sharing , Firewall protection , FTP server , Hardware encryption , High Availability , iTunes server , LDAP support , PXE support , Samba support , SFTP client , SSH support , Surveillance station , Syslog support , Trivial File Transfer Protocol (TFTP) support , Video server , VPN Server , VPN support , Wake on LAN (WOL) , Web server
Host Connectivity (for SD) Gigabit Ethernet
Network Services Compatibility Apple File Protocol (AFP) , Calendaring Extensions to WebDAV (CalDAV) , File Level Security (ACLs) , FTP , HTTPS , Microsoft Active Directory (AD) , Microsoft CIFS , Network File System (NFS) , Web-based Distributed Authoring and Versioning (WebDAV)
Network Transport Protocol FTP , iSCSI , L2TP , PPTP , TCP/IP
Remote Management Protocol SNMP , SSH , Telnet
OS Provided
Storage Operating System Synology DiskStation Manager
Optical Storage
Type None
Power Device
Frequency Required 50/60 Hz
Nominal Voltage AC 120/230 V
Power Consumption Operational 42.1 Watt
Power Consumption Stand by 23.1 Watt
Power Provided 200 Watt
Type Internal power supply
Processor
Clock Speed 2.4 GHz
Installed Qty 1
Manufacturer Intel
Number of Cores Quad-Core
Processor Number C2538
Type Atom
RAM
Installed Size 2 GB
Max Supported Size 16 GB
Technology DDR3 SDRAM
Security DVR
IP Cameras Supported 40
Software
Type Drivers & Utilities , Synology Assistant
Storage
iSCSI support iSCSI
Max Supported Capacity 50 TB
Network Storage Type NAS Server
Total Storage Capacity 0 GB
Storage Controller
Interface Type Serial ATA-600
RAID Level JBOD , RAID 0 , RAID 1 , RAID 10 , RAID 5 , RAID 6
Type RAID
System Requirements
Min Operating System Apple MacOS X 10.10 or later , Microsoft Windows 7 or later
