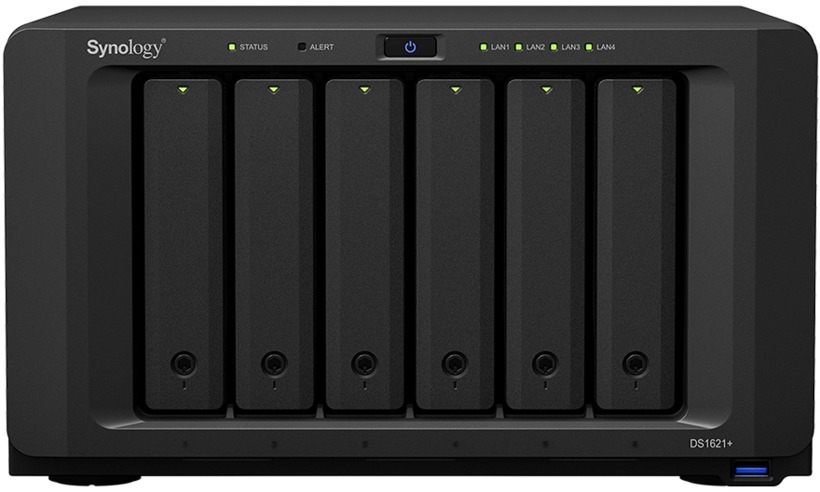

Synology DiskStation DS1621+ 6-bay SATA Quad Core NAS Server – Diskless – Brand New
Synology Diskstation DS1621+ 6-bay Network Attached Storage Server includes …
DiskStation DS1621+
Scalable 6-bay NAS for small- to medium-sized businesses
Ready to Grow as Your Business Thrives
Synology DiskStation DS1621+ is a powerful 6-bay network-attached storage solution designed to store and protect critical data assets. The growing amount of unstructured data requires smarter and increasingly higher performance methods of storing, accessing, and sharing. DS1621+ is a compact desktop form-factor NAS that is beyond evolutionary, featuring over 110K, or 174% higher 4K random read IOPS1, compared to its predecessor. Designed for scalability, the DS1621+ enables you to start small, then expand as your data grows.
Highlights
• Accelerated Performance
174% higher 4K random read IOPS and 76% faster sequential write speeds compared to its predecessor.
• Maximize Performance
Turbocharge HDD arrays by 20x or more2 without occupying drive bays using dual built-in M.2 slots for NVMe SSD cache3
• Easy Expansion
Scale-up on-demand to 16 drives with two DX517 expansion units
• Includes Everything to Protect Your Data
Back up critical data to and from public clouds, Windows PCs and servers, virtual machines, and data on the NAS with Synology Active Backup suite, HyperBackup, and Snapshot Replication
• Ready for 10GbE
Add in a 10GbE SFP+ or RJ-45 NIC to instantly increase network bandwidth based on your existing infrastructure
| Weight | 5.1 kg |
|---|
| SPECIFICATIONS | |
|---|---|
| Model Number | DS1621+/ DS1621-PLUS |
| CPU | |
| CPU Model | AMD Ryzen V1500B Quad Core 2.2GHz |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad Core 2.2 GHz |
| Hardware Encryption Engine | Yes – AES-NI |
| MEMORY | |
| System Memory (BASE) | 4GB DDR4 ECC SO-DIMM |
| System Memory (MAX) | 32GB DDR4 ECC SO-DIMM |
| STORAGE | |
| Drive Bay(s) | 6 |
| Maximum Drive Bays with Expansion Unit | 16 (2x DX517 8-Bay Expansion Units) |
| M.2 Drive Slots | 2 (NVMe) |
| Compatible Drive Type |
|
| Maximum, Internal Raw Capacity | 96 TB (16 TB HDD x 6) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 256 TB (16TB x 16) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drives | Yes |
| EXTERNAL PORTS | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.1 Port | 2 |
| eSATA Port | 2 |
| PCIe | |
| PCIe Expansion | 1 x Gen3 x8 slot (x4 lane) |
| Add-in-card support |
|
| APPEARANCE | |
| Size (Height x Width x Depth) | 166 mm x 282 mm x 243 mm |
| Weight | 5.1 kg |
| OTHERS | |
| System Fan | 92mm x 92mm x 25mm x 2 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan | Yes |
| Brightness adjustable front LED indicators | Yes |
| Scheduled Power On/Off | Yes |
| Wake on LAN/WAN | Yes |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 HZ, Single Phase |
| ENVIRONMENT TEMPERATURE | |
| Operating Temperature |
|
| Storage Temperature |
|
| Relative Humidity | 5% to 95% RH |
| Certification |
|
