Synology DS1522+ Synology External HDD

Add to Wishlist

The DiskStation DS1522+ 5-Bay NAS Enclosure from Synology provides flexible data management for homes and SOHO environments. is designed for small offices and IT enthusiasts. It is easy to scale and expand as your needs change, with optional support for up to 15 drives with two DX517 expansion units, fast networking, and NVMe SSD caching with two M.2 2280 slots. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.

14,750.00 د.إ

Add to Wishlist

Synology DS1522+ Synology External HDD Overview

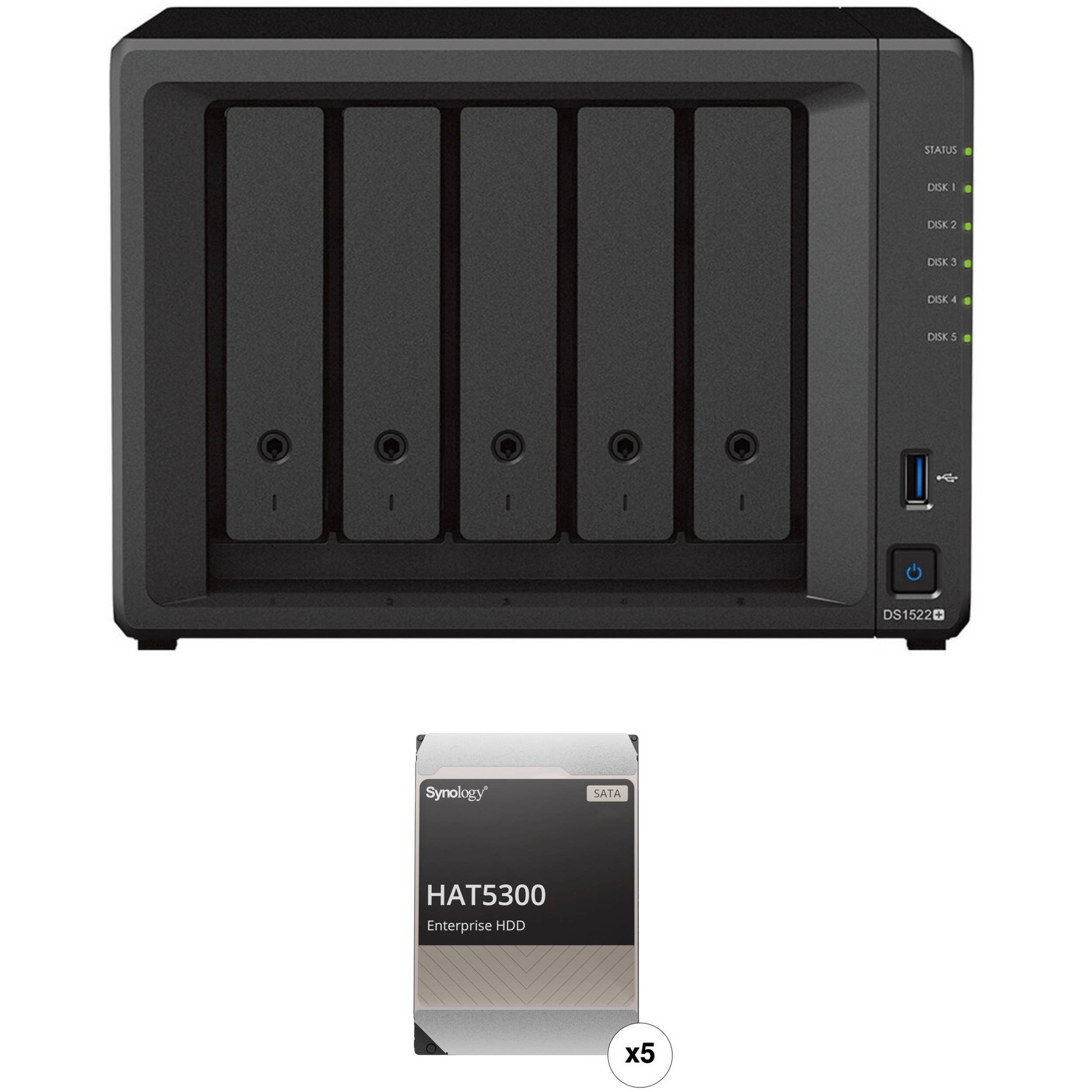

This B&H Kit combines the Synology DiskStation DS1522+ 5-Bay NAS Enclosure with five Synology HAT5300 12TB 7200 rpm SATA III 3.5″ Internal Enterprise HDDs for a storage capacity of 60TB.

Synology DiskStation DS1522+ 5-Bay NAS Enclosure

The DiskStation DS1522+ 5-Bay NAS Enclosure from Synology provides flexible data management for homes and SOHO environments. is designed for small offices and IT enthusiasts. It is easy to scale and expand as your needs change, with optional support for up to 15 drives with two DX517 expansion units, fast networking, and NVMe SSD caching with two M.2 2280 slots. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.

This NAS is equipped with five drive bays that are capable of natively supporting 3.5″ SATA hard drives, as well as 2.5″ SATA hard drives and SSDs for data storage. The data stored on this NAS can include videos, music, photos, and documents with up to 2048 user accounts and 2000 maximum concurrent connections. The CPU is a 2.6 GHz AMD Ryzen R1600 Dual-Core that is paired with 8GB of DDR4 RAM, both of which allow frequently used files and applications to be quickly accessed. The NAS is capable of achieving sequential read speeds of up to 736 MB/s and sequential write speeds of up to 796 MB/s.

Also featured are two USB 3.2 Gen 1 Type-A ports and two eSATA ports, and network connectivity is achieved via the four Gigabit Ethernet ports that support Link Aggregation and Failover, allowing your stored data to be shared with users throughout the network. For those who require RAID support, the DS1522+ supports RAID 0, 1, 5, 6, and 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

The Synology DiskStation DS1522+ 5-Bay NAS Enclosure keeps cool using dual 92mm fans and operates on 100-240 VAC at 50/60 Hz. Included is an accessory pack, an AC adapter, an AC power cord, and two RJ45 LAN cables. Protection is provided by a limited 3-year warranty.

Versatile Storage for Any Purpose
The DS1522+ comes out of the box with intuitive and comprehensive file management, media organization, and backup options, making it ideal for IT enthusiasts, creative professionals, and business owners looking for a powerful and compact storage system.
Sequential read speeds of up to 736 MB/s and sequential write speeds of up to 796 Mb/s enables fast file sharing, syncing, streaming, and backup for multiple users.
Supports five 2.5″ SATA HDDs and SSDs, as well as 3.5″ SATA HDDs, expandable to 15 drives with two Synology DX517 expansion units.
Up to 32GB of DDR4 ECC memory for protection against potential crashes and inadvertent changes in data through automatic correction of data errors.
Accommodate multiple streams or transfer tasks with four Gigabit RJ45 ports, which can be bonded using Link Aggregation to provide automatic network failover and load balancing.
Maximize return on investment by upgrading your storage platform as more demanding needs arise with two built-in M.2 NVMe SSD cache slots and an optional 10GbE RJ45 Network Upgrade Module.
Built for Data Protection and Integrity
Safeguard your critical data with the powerful storage management features of Synology DSM, built on the advanced BTRFS file system.
Advanced snapshot technology provides schedulable and near-instantaneous data protection for shared folders and LUNs.
File and folder-level data restoration enables recovery of specific files or folders.
Flexible storage quota system helps admins manage available space by specifying storage limits for shared folders.
File self-healing detects and recovers corrupted files using mirrored metadata and RAID configurations.
Inline compression minimizes storage consumption and extends the life of drives by compressing data before it is written to the storage pool.
Complete Data and Device Backup Solutions
Synology DSM comes standard with a complete package of backup solutions available at no extra cost.
Active Backup Suite consolidates backup tasks and offers rapid restoration of Windows and Linux endpoints, VMs, Synology NAS, and SaaS applications.
Snapshot Replication creates point-in-time copies of shared folders and LUNs to protect them from accidental modifications or ransomware incidents.
Hyper Backup backs up your NAS data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options.
C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data.
Powerful Collaboration and Sharing Tools
Synology’s productivity suite provides a private cloud solution for on-site and remote workers to concurrently edit documents, share files, manage emails, send instant messages, and more.
Synology Drive is a cloud file management solution that supports file sharing, remote data access, cross-device and cross-site synchronization, on-demand file restoration, and backup.
The Synology Office extension lets users collaborate on documents, spreadsheets, and presentation slides in real time, supported by convenient options such as file versioning for easy restoration and password protection.
Synology Photos serves as a media organization hub for enthusiasts and professionals looking to efficiently manage and share their photos and videos through intuitive browsing options and secure sharing methods.
Synology Hybrid Share combines reliable on-premises storage and efficient syncing of shared folders in the cloud to enable seamless cross-site synchronization and local file access at LAN speed.
Private Video Surveillance
Synology Surveillance Station transforms the DS1522+ into a powerful Network Video Recorder solution with support for up to 40 IP cameras.
8300+ supported camera models.
ONVIF support for a broader selection of cameras.
Private, subscription-free storage of recordings.
Access through web browsers, desktop clients, or mobile apps.
Event-based rules to trigger specific actions.
Email, SMS, and push notification options.
Virtualization and Certified Storage
Your DS1522+ can serve as virtual machine storage, VM backup server, and a lightweight container and VM host. It is fully certified as storage for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments.
Synology Storage Console for VMware or Windows platforms lets you manage VM storage components directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer.
Host light containers and VMs for testing, sandboxing, and emergency recovery purposes with Docker and Synology Virtual Machine Manager, a native hypervisor that supports Windows, Linux, and Virtual DSM.

UPC: 846504004461
Synology 12TB HAT5300 SATA III 3.5″ Internal Enterprise HDD

Designed to tackle demanding, high-volume workloads in 24/7 environments, the 12TB HAT5300 SATA III 3.5″ Internal Enterprise HDD from Synology has been optimized for their storage solutions and enables a high sequential throughput that helps maximize the number of clients a system can sustain. Engineered for improved dependability, the HAT5300 has a Mean Time to Failure (MTTF) rating of 2.5 million hours and a yearly workload rating of 550TB. Also featured is a storage capacity of 12TB, a SATA III 6 Gb/s interface, a 256MB cache, and a rotational speed of 7200 rpm, all of which help to ensure uninterrupted data transfers with sustained speeds of up to 242 MB/s.

Highlights
Enterprise Reliability and Durability
For demanding 24/7 environments, rated for 2.5 million hours MTTF, and up to 550TB per year workloads
Persistent Write Cache Technology
Minimizes the chance of data corruption in the event of sudden power loss
Better Together
Firmware and DiskStation Manager (DSM) optimizations improve multi-client sequential read performance by up to 23%
One-Stop Update
Get automatic firmware updates together through DSM updates, reducing the need for additional maintenance sessions
For Synology, by Synology
Stringent validation and up to 300,000 hours of tests helps ensure greater reliability in Synology systems
General Features
Scale Up Confidently
Synology HAT5300 drives are engineered to provide fast and dependable performance, even for a large number of clients. Firmware and software collaborate to deliver enhanced performance, with sequential read speeds that are 23% higher than drives with a similar capacity. The HAT5300 provides outstanding performance for large-scale video surveillance, multimedia post-production, and enterprise file server environments.
Endurance and Reliability
Designed with Synology’s expertise in storage systems, HAT5300 series drives are backed by a 2.5 million hour MTTF rating, workload support of 550TB per year, and persistent write cache technology. Over 300,000 hours of compatibility and stress testing ensure that the HAT5300 can continuously operate, even under extreme workloads with Synology’s NAS and IP SAN lineup. Combined with data protection solutions running on Synology systems, you can confidently depend on your data 24/7 using HAT5300 series drives.
Simplified Maintenance
DSM updates will ensure that compatible Synology drives will be updated together with the operating system. This reduces the number of maintenance sessions IT teams need to schedule while also increasing the entire system’s service availability. Simplify IT infrastructure planning requirements by getting support for the entire system from Synology.
Category: Tag:

Synology DiskStation DS1522+ 5-Bay NAS Enclosure Specs

Computing
CPU 2.6 to 3.1 GHz Dual-Core
Processor AMD Ryzen R1600
Total Installed Memory 8 GB ECC DDR4
User-Replaceable Memory 1 x 8 GB
Total Memory Slots 2 x SO-DIMM
Maximum Memory Capacity 32 GB
General
Number of Bays 5 x 2.5″/3.5″
2 x M.2 (2280)
I/O 4 x RJ45 (Gigabit Ethernet)
2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1 (5 Gb/s))
2 x eSATA
Compatible Drive Interface SATA (Unspecified Version)
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid
Hot-Swap Support Yes
PCI Expansion 1 x PCIe 3.0 x2
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CalDAV
FTP
HTTPS
L2TP
L2TP/IPSec
NFS
OpenVPN
PPTP
Rsync
SFTP
SMB
SNMP
SSH
SSL
Telnet
WebDAV
iSCSI
iSCSI LUN 256
iSCSI Target 128
Max Concurrent Connections 2000
Max Folders 512
Max Sync Tasks 32
Max Groups 256
Max User Accounts 2048
Max Volume Number 64
Max Cameras Supported 40
Software
Installed Operating System Synology DSM
Supported File Systems Internal: BTRFS, EXT4
External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility Windows
macOS
Linux
Android
iOS
*As of June, 2022: Check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Safari
Supported Languages Brazilian Portuguese
Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption AES-NI
VPN Server Connections 40
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Power Consumption 52.06 W (Typical)
16.71 W (Idle)
PSU Wattage 1 x 120 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Storage Temperature -5 to 140°F / -20 to 60°C
Storage Humidity 5 to 95%
Storage Altitude 16,404′ / 5000 m
Certifications FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC
*as per Manufacturer
Physical
Status Monitoring LED Indicator
Cooling 2 x 92 mm Fans
Noise Level 22.9 dBA
Built-In Speakers None
Dimensions 9.17 x 9.06 x 6.54″ / 232.92 x 230.12 x 166.12 mm
Weight 5.9 lb / 2.7 kg
Packaging Info
Package Weight 10.2 lb
Box Dimensions (LxWxH) 13 x 11.7 x 11.5″

Synology 12TB HAT5300 SATA III 3.5″ Internal Enterprise HDD Specs

Storage Capacity Total: 12 TB SATA III (6 Gb/s) 3.5″ HDD (7200 rpm)
Read Speed Maximum: 242 MB/s
Write Speed Maximum: 242 MB/s
Buffer 256 MB
Pre-Format None
HDD Specs
Disk Sector Format 512e
Reliability / Data Integrity
Encryption None
Endurance (Total Bytes Written) 550 TB
Mean Time Between Failures (MTBF) 2.5 Million Hours
Electrical
Power Draw 7.83 W (Active)
4.25 W (Idle)
Supported Voltage 5 VDC, 12 VDC
Environmental
Operating Temperature 41 to 140°F / 5 to 60°C
Storage Temperature 104 to 158°F / 40 to 70°C
Operating Shock 70 G / 2.0 ms
Storage Shock 250 G / 2.0 ms
Operating Vibration 0.75 G / 5 to 300 Hz
Storage Vibration 3.0 G / 5 to 500 Hz
Operating Humidity 5 to 90%
Storage Humidity 5 to 95%
Operating Altitude -1,000 to 10,000′ / -304.8 to 3048 m
Storage Altitude -1,000 to 40,000′ / -304.8 to 12,192 m
General
Certifications BSMI, CE, EAC, Kcc, RCM, RoHS, TUV, UL
*as per Manufacturer
Dimensions 5.8 x 4.01 x 1″ / 147 x 101.85 x 26.1 mm
Weight 25.4 oz / 720 g
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 8.9 x 6.1 x 3″
