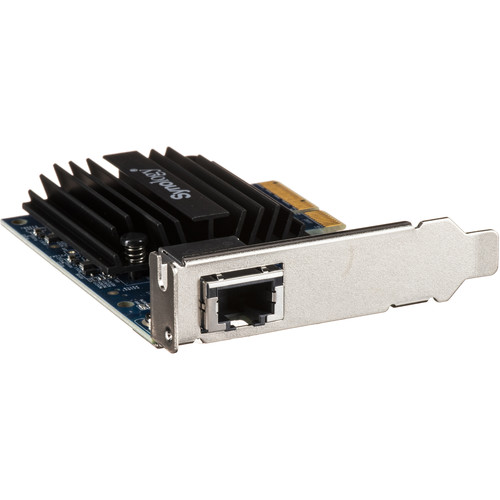

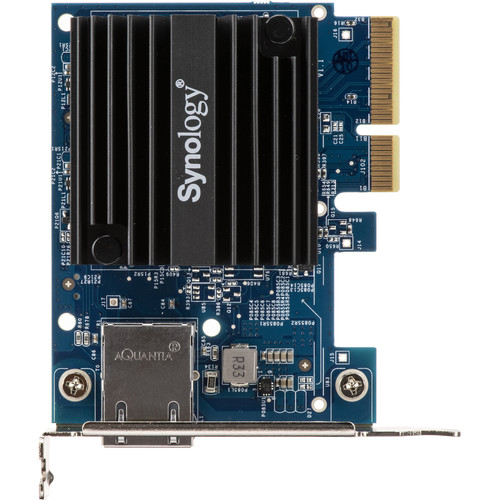

Synology E10G18-T1 10GbE PCIe Expansion Card


Key Features
  • For Select Synology NAS Servers
  • Supports 802.3an 10 Gb/s Ethernet
  • Supports 802.3bz 2.5 & 5 Gb/s Ethernet
  • Supports 802.3ab Gigabit Ethernet
  • Supports 802.3u Fast Ethernet
  • Supports 802.3x Flow Control
  • PCIe 3.0 x4 Interface
  • Full Duplex Network Operation Mode
  • Auto Bandwidth Negotiation

699.00 د.إ

Designed for select Synology NAS servers, theĀ E10G18-T1 10GbE PCIe Expansion CardĀ fromĀ SynologyĀ has a single RJ45 port that supports 802.3an 10 Gb/s Ethernet, 802.3bz 2.5 and 5 Gb/s Ethernet, 802.3ab Gigabit Ethernet (1 Gb/s), 802.3u Fast Ethernet (100 Mb/s), and 802.3x Flow Control. It has a low-profile/full-height bracket, a PCIe 3.0 x4 interface, operates in full duplex mode, and can auto-negotiate between 10 Gb/s, 5 Gb/s, 2.5 Gb/s, 1 Gb/s, and 100 Mb/s speeds.

General Features
Flexible and Economic Solution for 10GbE Adoption
Equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x, the E10G18-T1 helps you smoothly migrate to a 10GbE networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10 Gb/s, 5 Gb/s, 2.5 Gb/s, 1 Gb/s, and 100 Mb/s, the E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.
Built to handle intensive workloads, Synology network add-in-cards are backed by Synology’s
Applied Models
FS3017
FS2017
FS1018
RS18017xs+
RS18016xs+
RC18015xs+
RS10613xs+
RS4017xs+
RS3617xs+
RS3614xs+
RS3413xs+
RS3618xs
RS3617RPxs
RS3617xs
RS3614(RP)xs
RS3412(RP)xs
RS3411(RP)xs
DS3617xs
DS3615xs
DS3612xs
DS3611xs
DS3018xs
RS2818RP+
RS2418(RP)+
RS1219+
RS818(RP)+
DS1817+
DS1618+
DS1517+
SKU: E10G18-T1 Category:

Synology E10G18-T1Ā Specs

Connectivity
Networking I/O
1 xĀ 10Gb Ethernet (RJ45)
System Connection
PCIe 3.0 x4 (Full-Height/Low-Profile Slot)
General
Supported IEEE Standards
802.3ab, 802.3an, 802.3bz, 802.3u, 802.3x
Transfer Rates
Full-Duplex Mode: 10 Gb/s
Electrical
Power Source
Bus Powered
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-5 to 140°F / -20 to 60°C
Operating Humidity
5 to 95%
Physical
Dimensions
2.68 x 3.39 x 0.54″ / 68.1 x 86 x 13.6Ā mm
Packaging Info
Package Weight
0.3 lb
Box Dimensions (LxWxH)
7 x 5.3 x 1.3″
