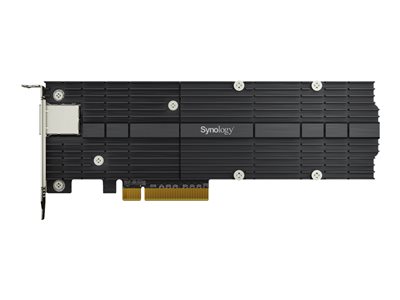

Synology E10M20-T1 – network adapter – PCIe 3.0 x8 – 10Gb Ethernet x 1


Synology E10M20-T1 – Network adapter – PCIe 3.0 x8 low profile – 10Gb Ethernet x 1 – for Synology RS820, SA3400, SA3600; Disk Station DS1618, DS1819, DS2419; RackStation RS820

1,499.00 د.إ

Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.

SKU: E10M20-T1 1 Category: Tag:
Category Detail
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 3.0 x8
PCI Specification Revision PCIe 3.0
Networking
Ports 10Gb Ethernet x 1
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-T
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Network / Transport Protocol TCP/IP, UDP/IP
Features Flow control, auto-negotiation, full duplex mode, TCP/IP checksum offload, UDP/IP checksum offload, Jumbo Frames support (up to 9000 bytes)
Compliant Standards IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz
Expansion / Connectivity
Expansion Slots 2 (total) / 2 (free) x M.2 Card
Interfaces 1 x 10GBase-T – RJ-45
Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Dimensions & Weight
Width 0.7 in
Depth 7.9 in
Height 2.8 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95%
Compatibility Information
Designed For Synology RS820RP+, SA3400, SA3600; Synology Disk Station DS1618+, DS1819+, DS2419+, DS3018xs; Synology RackStation RS2818RP+, RS820+, RS820RP+
