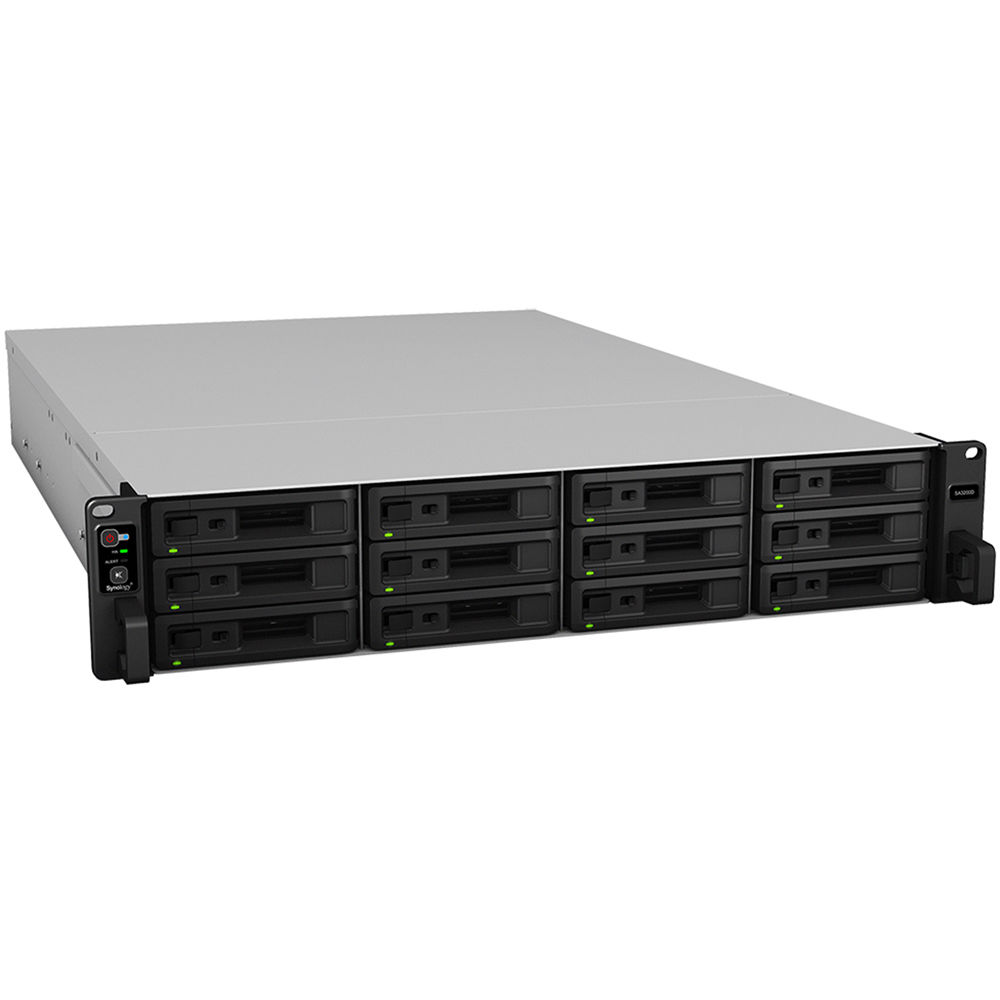

Synology SA3200D 12-Bay NAS Enclosure

Add to Wishlist

Simplify and centralize your data management infrastructure with the SA3200D 12-Bay NAS Enclosure from Synology, a 2U rackmount server that helps minimize downtime with dual-controller architecture, helping to ensure that operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline. The hardware redundancy mechanism leverages controllers, power supplies, and fans to help prevent a single point of failure so that your network, file services, and applications are protected. This unit has 12 drive bays, each of which natively supports 3.5″ SAS hard drives, as well as 2.5″ SAS hard drives and SSDs. Should users need to expand the overall capacity of their SA3200D, two mini-SAS ports can each accommodate one RXD1219sas expansion unit. Between the NAS and two expansion units, up to 36 drives are supported.

34,995.00 د.إ

Add to Wishlist

Synology SA3200D External HDD/SSD Overview

Simplify and centralize your data management infrastructure with the SA3200D 12-Bay NAS Enclosure from Synology, a 2U rackmount server that helps minimize downtime with dual-controller architecture, helping to ensure that operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline. The hardware redundancy mechanism leverages controllers, power supplies, and fans to help prevent a single point of failure so that your network, file services, and applications are protected. This unit has 12 drive bays, each of which natively supports 3.5″ SAS hard drives, as well as 2.5″ SAS hard drives and SSDs. Should users need to expand the overall capacity of their SA3200D, two mini-SAS ports can each accommodate one RXD1219sas expansion unit. Between the NAS and two expansion units, up to 36 drives are supported.

The SA3200D is powered by dual 2.4 GHz Intel Xeon D-1521 Quad-Core processors (one per controller), 16GB of DDR4 ECC RAM (8GB per controller) that can be upgraded to a total of 128GB (64GB per controller). Each controller has four DIMM slots and each slot supports up to 16GB. Network connectivity is achieved via the two 10 Gigabit Ethernet ports (one per controller) or four Gigabit Ethernet ports (two per controller) with failover support, which helps to provide redundancy in the case that a LAN connection malfunction occurs on one port. In addition, link aggregation helps to increase connection speeds beyond the limits of a single network port or cable. If you’re looking to expand this NAS, there are two PCIe Gen 3.0 x8/x8 slots (one per controller) that support 10/25GbE network cards.

The SA3200D runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, as well as accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, Basic, and F1. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

Synology has engineered the SA3200D to be energy efficient. Not only does it offer four 60 x 60mm fans (two per controller) to help keep the system running cool, the server also supports numerous scheduled power on/off cycles and hard drive hibernation to further minimize power consumption and operation expenses. The SA3200 operates using redundant 500W power supplies on 100-240 VAC at 50/60 Hz and includes an accessory pack and two AC power cords. Protection is provided by a limited 5-year warranty.

General Features
Scales Up with You
The SA3200D supports two RXD1219sas expansion units for up to 36 SAS 3.5″/2.5″ drive bays.
Redundant Power Supply
Modularized and swappable 500W power supplies help prevent service downtime in the event of a power supply failure.
Active-Passive Controller Modules
Automatic system failover to the secondary controller, maximizing service uptime.
PCIe 3.0 Slots
Supports 10GbE/25GbE network interface cards for higher throughput.
10GbE and 1GbE Ports
Cost-effective RJ45 networking interface options built in.
Mini-SAS HD Ports
Connect up to two RXD1219sas expansion units for flexible plug-and-play volume expansion.
Processor
One Intel Xeon D-1521 processor on each controller provides enterprise-class reliability, availability, and serviceability.
Four DDR4 Memory Slots
8GB of ECC UDIMM DDR4 memory per controller may be expanded to 64GB per controller for more demanding workloads.
Modularized Cooling
Dual fan modules per controller allow for easy maintenance and replacement.
SATA DOM
Operating system files are isolated from the stored data, providing higher throughput and stability.
Non-Transparent Bridge (NTB)
Faster and lower-latency connectivity between controllers.
Ultimate Backup Solution
The SA3200D integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.
Active Backup for Business
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Synology Drive
Safeguard your computer with Synology Drive Client. You’ll be able to perform real-time data backups and point-in-time file recovery.
Active Backup for Microsoft 365 / Google Workspace
On-premises backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully Certified Storage Virtualization Solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration help offload storage operations and optimize computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Virtual Machine Manager
Virtual Machine Manager enables you to test new software in sandboxes, isolate your customers’ machines, and increase the flexibility of your server. You can easily run Windows, Linux, and Virtual DSM on your Synology NAS by just a few steps.
Snapshots for Virtual Machines
Perfectly clone and restore a virtual machine within seconds.
Multi-Tenant Environment
Create multiple isolated virtual machines for subsidiary business units or departments.
Limited 5-Year Warranty
Synology is committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a limited 5-year warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity.
Powered by Synology DiskStation Manager
Synology High Availability
Real-time system-level protection with automatic failover mechanism to maximize service availability.
Snapshot Replication
Schedulable and instantaneous data protection for shared folders and iSCSI LUNs for disaster prevention.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
Active Backup Suite
Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Microsoft 365, and Google Workspace.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone and restore virtual machines.
SKU: SA3200D 12-Bay Category: Tag:

Synology SA3200D External HDD/SSD Specs

Computing
CPU 2.4 to 2.7 GHz Quad-Core
Processor 2 x Intel Xeon D-1521
Total Installed Memory 16 GB ECC DDR4
User-Replaceable Memory 2 x 8 GB
Total Memory Slots 8 x DIMM
Maximum Memory Capacity 128 GB
General
Number of Bays 12 x 2.5″/3.5″
I/O 2 x RJ45 (10GbE)
4 x RJ45 (Gigabit Ethernet)
2 x Mini SAS (Unspecified)
Compatible Drive Interface SAS (Unspecified Version)
Media Card Slots None
Form Factor Rackmount (2 RU)
RAID RAID 0, 1, 10, 5, 6, F1, JBOD
Hot-Swap Support Yes
PCI Expansion 2 x PCIe 3.0 (x8 Electrical)
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CIFS/SMB
CalDAV
FTP
HTTP
HTTPS
L2TP
NFS
OpenVPN
PPTP
SMB 2.1
SMB 3.0
SNMP
WebDAV
iSCSI
iSCSI LUN 512
iSCSI Target 256
Max Concurrent Connections 6000
Max Folders 512
Max Sync Tasks 32
Max Groups 512
Max User Accounts 16,000
Max Volume Number 64
Max Cameras Supported 100
Software
Installed Operating System Synology OS
Supported File Systems Internal: BTRFS, EXT4
OS Compatibility Windows 7 or Later
macOS 10.11 or Later
Supported Browsers Chrome, Edge, Firefox, Internet Explorer, Safari
Supported Languages Brazilian Portuguese
Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption AES-NI (-Based)
VPN Server Connections 40
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source Internal Power Supply
Power Consumption 417.48 W (Typical)
PSU Wattage 2 x 500 W (Supports Redundancy)
Environmental
Operating Temperature 32 to 95°F / 0 to 35°C
Operating Humidity 5 to 95%
Storage Temperature -4 to 140°F / -20 to 60°C
Certifications BSMI, CCC, CE, EAC, FCC, RCM, RoHS, VCCI, as per Manufacturer
Physical
Status Monitoring LED Indicator
Cooling 4 x 60 mm Fans
Noise Level 51.3 dBA
Weight 43.4 lb / 19.7 kg
Packaging Info
Package Weight 54.6 lb
Box Dimensions (LxWxH) 32.5 x 23.6 x 9.5″
