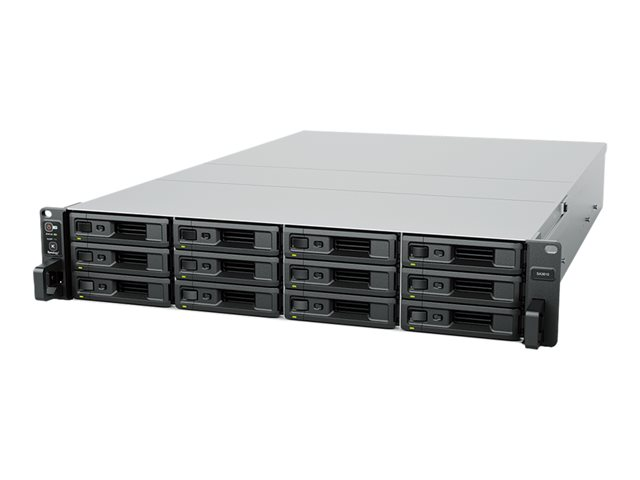

Synology SA3410 – NAS server

Add to Wishlist

12 bays – rack-mountable – SATA 6Gb/s / SAS – RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 – RAM 16 GB – Gigabit Ethernet / 10 Gigabit Ethernet – iSCSI support – 2U

AED42,999.00

Add to Wishlist
Synology Data Management Systems

Explore Synology’s lineup of versatile NAS/SAN systems that already empower millions of individuals
Product image

Petabyte-scale flexibility

The SA and HD6500 series can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment.

Create single volumes of up to 1 petabyte for data archives, video management systems (VMSs), or file servers requiring bulk storage.

Product image
Works with mainstream virtualisation systems

Optimised for virtualisation environments.
  • Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimise computational efficiency.
  • Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
  • Compliance with the ALUA industry standard allows hosts to identify optimised paths to increase data transfer performance and efficiency.
Btrfs: Next generation storage efficiency
The Btrfs file system introduces cutting-edge storage technologies and optimised snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Product image
Product image

Supercharge network performance effortlessly

With built-in dual 10GbE ethernet ports as well as a wide range of both Synology and third-party add-on cards (25GbE, QSFP+, Fibre Channel cards, low profile cards) provide high-speed network transmission to your enterprise storage.
Product image
Out-of-band (OOB) management

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Product image

All the space you will ever need

With 60 bays in a 4U rackmount enclosure and support for up to 300 drives after expansion, the Synology HD6500 is the ideal high-density storage solution for large-scale warm and cold storage applications such as full system backups, video post-production, and large surveillance deployments.

Product image


Choose the best hard drives for your petabyte storage

  • Automatic firmware updates through DSM means that HAT5300 drives always benefit from the latest enhancements.
  • Synology HAT5300 HDD offers class-leading performance thanks to tight integration with DSM and Synology hardware.
  • With over 400,000 hours of in-house validation testing, the HAT5300 series brings unmatched reliability to Synology deployments.
Who is using Synology?
Synology presents an inside look at how UK based production company ‘Face TV’ incorporated Synology products to improve workflow, storage and media redundancy as well as how Palmaz Vineyards usesall-flash and enterprise systems to enhance their winemaking process.
Product image


5-year warranty and next-business day onsite support options available

As we’re committed to improving product innovation and quality, Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximise your return on investment.
Product image
Product image
Product image
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Security
Secure data with comprehensive built-in security tools to protect your devices against evolving threats.
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Product image
Product image
Product image
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.
Surveillance Station

Complete surveillance solution for recording, monitoring, and management.
Synology MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.

The Synology SA3400 series is designed to provide large enterprises and studios with scalable, reliable data storage. Accommodating massive raw storage capacity and different network configurations, these 12-bay rackmount servers are perfect for businesses that need to store large volumes of data without sacrificing performance and dependability. Advanced management, high availability, and data protection solutions are available in the Synology DiskStation Manager (DSM) operating system.

Dependable platform for scalable data management

The extensive scaling capabilities of the SA3400 series enable enterprise data centers, large production studios, and growing businesses to meet their increasing data storage needs by accessing over 1 PB of raw storage capacity on demand. SA3410 deliver stable high throughput, perfect for smooth ingestion of large data volumes, including backups, and video recording or serving tasks. Hardware and software safeguards ensure maximum data and service availability, as well as reliable recovery options in case of disaster or attack.

Designed to keep data available and services online

Built-in solutions help maintain high system availability and facilitate fast recovery if a disaster or major outage occurs.

Powerful sharing and collaboration tools for teams

Synology’s collaboration suite provides a private cloud solution for on-site and remote workers to concurrently edit documents, share files, manage emails, send instant messages, and more.

Certified storage for virtualization and containerization

SA3000 Series units can serve as virtual machine storage, VM backup servers, and alternative container or VM hosts. They are fully certified as storage for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments.

SKU: SA3410 Category: Tag:
Product Description Synology SA3410 – NAS server
Device Type NAS server
Host Connectivity Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type Rack-mountable – 2U
Max Supported Capacity 1.728 PB
Installed Devices / Modules Qty 0 (installed) / 12 (max)
Dimensions (WxDxH) 43.05 cm x 69.2 cm x 8.8 cm
Weight 14.5 kg ()
Processor 1 x Intel Xeon D-1541 2.1 GHz (8-core)
Storage Controller RAID SATA 6Gb/s / SAS RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
Networking 10Mb LAN, 100Mb LAN, GigE, 10 GigE
Performance Sequential read: 6275 Mbps
Sequential write: 3056 Mbps
Random read: 450814 IOPS
Random write: 122675 IOPS
Local user account: 16000
Local group account: 512
Maximum number of shared folders: 512
Maximum concurrent connections: 4000
RAM 16 GB
Power AC 100-240 V (50/60 Hz)
Power Redundancy Yes
Storage Operating System Synology DiskStation Manager
Manufacturer Warranty 5-year warranty
General
Device Type NAS server
Host Connectivity Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type Rack-mountable – 2U
Total Storage Capacity 0 TB
Max Supported Capacity 1.728 PB
Installed Devices / Modules Qty 0 (installed) / 12 (max)
Width 43.05 cm
Depth 69.2 cm
Height 8.8 cm
Weight 14.5 kg ()
Built-in Devices Led panel
Processor / Memory
Processors Installed 1 x Intel Xeon D-1541 2.1 GHz
Number of Cores 8-core
Max Supported Qty 1
Max Turbo Speed 2.7 GHz
RAM 16 GB (installed) / 128 GB (supported) – DDR4
Features Registered, ECC
Storage Controller
Type RAID
Interface Type SATA 6Gb/s / SAS
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1
Networking
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE, 10 GigE
Network / Transport Protocol PPTP, L2TP, iSCSI, FTP, SMB, NFS, OpenVPN
Remote Management Protocol SNMP, Telnet, SSH, LDAP
Network Services Compatibility File Level Security (ACLs), Network File System (NFS), FTP, Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
Performance Sequential read: 6275 Mbps
Sequential write: 3056 Mbps
Random read: 450814 IOPS
Random write: 122675 IOPS
Local user account: 16000
Local group account: 512
Maximum number of shared folders: 512
Maximum concurrent connections: 4000
Features Firewall protection, VPN support, wake on LAN (WOL), reset button, B-tree file system (Btrfs), EXT4 file system, Rsync compatible, wake on WAN (WOW), Let’s Encrypt, SSD read-write cache, shared folder encryption, SMB encryption, login auto block, Kubernetes support
Encryption Algorithm SSL, TLS

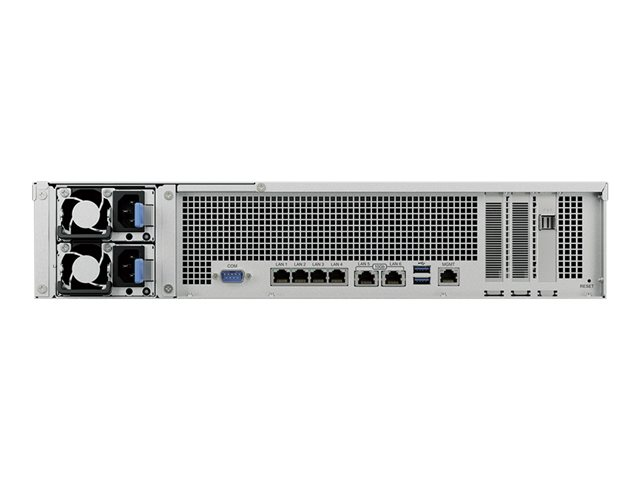

Expansion / Connectivity
Expansion Bays 12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″
Expansion Slots 2 (total) / 2 (free) x PCI Express 3.0 x8
X M.2
Interfaces 2 x USB 3.2 Gen 1 – Type A
1 x expansion port – Mini-SAS HD (SFF-8644)
1 x Ethernet 1000Base-T (management) – RJ-45
2 x Ethernet 10Gb – RJ-45
4 x Ethernet 1000Base-T – RJ-45
Miscellaneous
Features Scheduled power on/off, built-in 4 x 80 mm cooling fans
Compliant Standards RoHS
Included Accessories Accessory pack, 2 x power cables
Power
Power Device Internal power supply
Installed Qty 2
Max Supported Qty 2
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 100-240 V (50/60 Hz)
Software / System Requirements
Storage Operating System Synology DiskStation Manager
Manufacturer Warranty
Service & Support Limited warranty – 5 years
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 35 °C
Humidity Range Operating 8 – 80% RH
