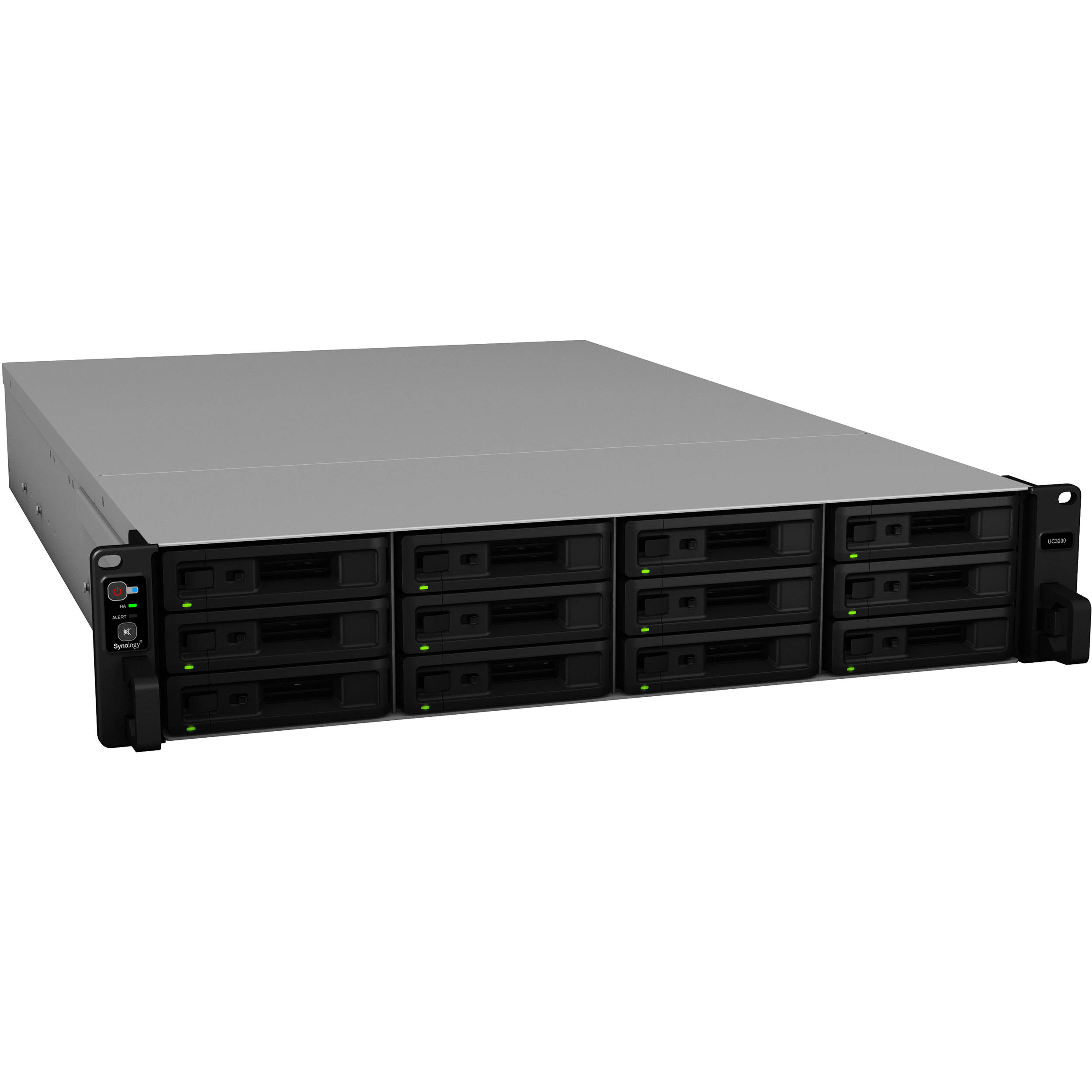

Synology UC3200 12-Bay Unified Controller SAN Enclosure

Add to Wishlist

Expand your network’s storage capacity with the UC3200 12-Bay Unified Controller SAN Enclosure from Synology. This SAN enclosure has a total storage capacity of 192TB across 12 2.5″ / 3.5″ SAS hard drive bays and two controller modules. Each controller is power by a 2.4 GHz Intel Xeon D-1521 Quad-Core processor with 8GB or DDR4 memory for fast and efficient operation. Dual Gigabit Ethernet ports, a 10 Gigabit Ethernet port, and a single PCIe 3.0 x8 slot for a 10GbE / 25GbE network interface card expansion are available to each controller, allowing you to scale up the device as your business grows.

AED30,000.00

Add to Wishlist

Expand your network’s storage capacity with the UC3200 12-Bay Unified Controller SAN Enclosure from Synology. This SAN enclosure has a total storage capacity of 192TB across 12 2.5″ / 3.5″ SAS hard drive bays and two controller modules. Each controller is power by a 2.4 GHz Intel Xeon D-1521 Quad-Core processor with 8GB or DDR4 memory for fast and efficient operation. Dual Gigabit Ethernet ports, a 10 Gigabit Ethernet port, and a single PCIe 3.0 x8 slot for a 10GbE / 25GbE network interface card expansion are available to each controller, allowing you to scale up the device as your business grows.

Drives can be set up in RAID 0, 1, 5, 6, 10, JBOD, and F1 configuration and the UC3200 has AES-NI hardware encryption to help protect your data. Additionally, Synology Snapshot Replication provides schedulable data protection by replicating your data to both offsite servers and local volumes.

Dual Controllers
The Synology UC3200 features two controllers that work together simultaneously, syncing memory data through a non-transparent bridge (NTB), and can automatically fail to each other during catastrophic events to continue operating without interruptions.
Fast and Secure Data Capacity
The SAN supports up to 12 high-speed SAS drives with a raw capacity of 192TB and can be set up in RAID 0, 1, 5, 6, 10, JBOD, and F1 configurations. You can also install self encrypting drives to help further secure your data. Up to two RXD1219sas expansion units can be added via the mini-SAS HD ports for up to 576TB of total raw capacity.
Snapshot Replication
With Snapshot Replication, you can schedule up to 4,096 system-wide snapshots for local volumes or offsite servers. The UC3200 delivers application-aware snapshot protection and virtual machine recovery in iSCSI LUNs in the event of a disaster.
SKU: UC3200 12-Bay Category: Tag:

Synology UC3200 External HDD/SSD Specs

Computing
CPU 2.4 to 2.7 GHz Quad-Core
Processor 2 x Intel Xeon D-1521
Total Installed Memory 16 GB ECC DDR4
User-Replaceable Memory 2 x 8 GB
Total Memory Slots 8 x DIMM
Maximum Memory Capacity 128 GB
General
Number of Bays 12 x 2.5″/3.5″
I/O 4 x RJ45 (Gigabit Ethernet)
2 x RJ45 (10GbE)
2 x 9-Pin (Serial)
2 x Mini SAS (SFF-8644)
Compatible Drive Interface SAS
Media Card Slots None
Maximum Filled Capacity 192 TB
576 TB (with Expansion)
Form Factor Rackmount (2 RU)
RAID RAID 0, 1, 10, 5, 6, F1, JBOD
Hot-Swap Support Yes
PCI Expansion 2 x PCIe 3.0 (x8 Electrical)
Link Aggregation and Failover Support Yes
Software
Installed Operating System None
Supported File Systems Internal: BTRFS
Security
Encryption AES-NI (-Based)
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Power Consumption 417.48 W (Typical)
274.38 W (Standby)
PSU Wattage 2 x 500 W
Environmental
Operating Temperature 32 to 95°F / 0 to 35°C
Operating Humidity 5 to 95%
Storage Temperature -4 to 140°F / -20 to 60°C
Physical
Status Monitoring None
Audible Alarm No
Cooling 4 x 60 mm Fans
Noise Level 51.3 dBA
Built-In Speakers None
IR Sensor None
Weight 43.4 lb / 19.7 kg
Packaging Info
Package Weight 55 lb
Box Dimensions (LxWxH) 32.8 x 23.9 x 9.3″
