Synology Unified Controller UC3200

Add to Wishlist

Hard drive array – 12 bays (SAS) – SAS (external) – rack-mountable – 2U

د.إ39,499.00

Add to Wishlist
Synology Data Management Systems

Explore Synology’s lineup of versatile NAS/SAN systems that already empower millions of individuals
Product image

Petabyte-scale flexibility

The SA and HD6500 series can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment.

Create single volumes of up to 1 petabyte for data archives, video management systems (VMSs), or file servers requiring bulk storage.

Product image
Works with mainstream virtualisation systems

Optimised for virtualisation environments.
  • Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimise computational efficiency.
  • Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
  • Compliance with the ALUA industry standard allows hosts to identify optimised paths to increase data transfer performance and efficiency.
Btrfs: Next generation storage efficiency
The Btrfs file system introduces cutting-edge storage technologies and optimised snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Product image
Product image

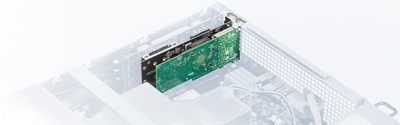

Supercharge network performance effortlessly

With built-in dual 10GbE ethernet ports as well as a wide range of both Synology and third-party add-on cards (25GbE, QSFP+, Fibre Channel cards, low profile cards) provide high-speed network transmission to your enterprise storage.
Product image

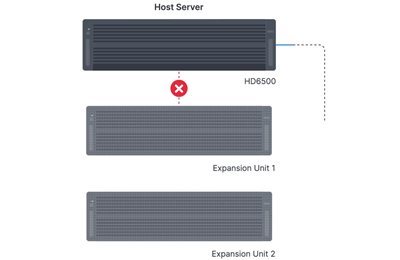

High-reliability expansion architecture
Redundant SAS links prevent single points of failure from affecting other expansion units, ensuring higher data and service availability.
Product image

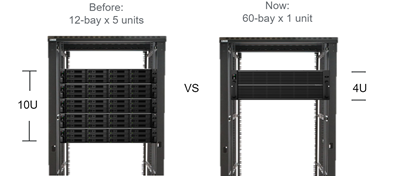

All the space you will ever need

With 60 bays in a 4U rackmount enclosure and support for up to 300 drives after expansion, the Synology HD6500 is the ideal high-density storage solution for large-scale warm and cold storage applications such as full system backups, video post-production, and large surveillance deployments.

Product image


Choose the best hard drives for your petabyte storage

  • Automatic firmware updates through DSM means that HAT5300 drives always benefit from the latest enhancements.
  • Synology HAT5300 HDD offers class-leading performance thanks to tight integration with DSM and Synology hardware.
  • With over 400,000 hours of in-house validation testing, the HAT5300 series brings unmatched reliability to Synology deployments.
Who is using Synology?
Synology presents an inside look at how UK based production company ‘Face TV’ incorporated Synology products to improve workflow, storage and media redundancy as well as how Palmaz Vineyards usesall-flash and enterprise systems to enhance their winemaking process.


5-year warranty and next-business day onsite support options available

As we’re committed to improving product innovation and quality, Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximise your return on investment.
Product image
Product image
Product image
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Security
Secure data with comprehensive built-in security tools to protect your devices against evolving threats.
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Product image
Product image
Product image
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.
Surveillance Station

Complete surveillance solution for recording, monitoring, and management.
Synology MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.

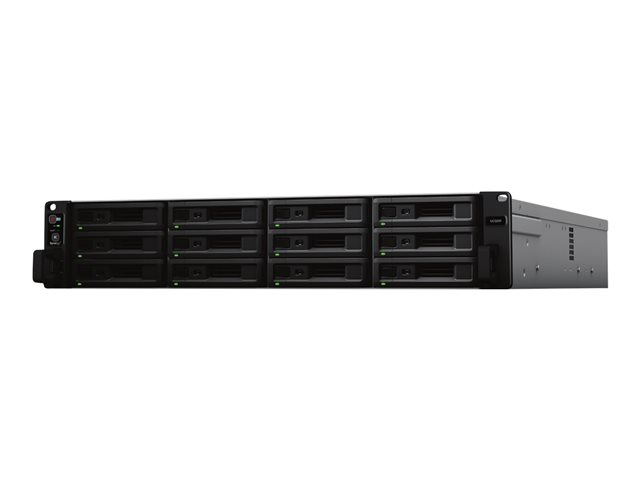

Designed for high-availability SAN environments, Synology Unified Controller UC3200 offers active-active architecture for non-disruptive iSCSI services. It provides resilient data protection solutions with a simplified management interface while maximizing service uptime for critical services.

Powerful and flexible scalability

UC3200 is an affordable yet reliable IP SAN solution for mission-critical environments. It delivers outstanding performance and allows you to start small and grow in the future.

Uncompromising reliability

The active-active controller design maximizes the system uptime for your important applications. The inter-connectivity through high-speed NTB between the two controllers allows one of them to seamlessly take over the service when the other breaks down.

SKU: UC3200 Category: Tag:
Product Description Synology Unified Controller UC3200 – hard drive array
Device Type Hard drive array
Enclosure Type Rack-mountable – 2U
Interface SAS
Maximum LUNs 128
Installed Devices / Modules Qty 0 (installed) / 12 (max)
Supported Drives SAS
Storage Controller RAID (SAS) – RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
Storage Controller Quantity 2
Hard Drive No HDD
Power AC 120/230 V – 50/60 Hz
Power Redundancy Yes
Dimensions (WxDxH) 43.05 cm x 69.2 cm x 8.8 cm
Weight 19.7 kg
Manufacturer Warranty 5-year warranty
General
Device Type Hard drive array
Enclosure Type Rack-mountable – 2U
Chassis
Installed Devices / Modules Qty 0
Supported Devices / Modules Qty 12
Supported Drives SAS
Storage
HDD Array External Interface SAS
Maximum LUNs 128
Processor
CPU 2 x Xeon 2.4 GHz
Storage Controller
Type RAID
Installed Qty 2
Interface Type SAS
Cache / Buffer Size (Max) 8 GB
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1
Storage Controller (2nd)
Installed Qty 2
Hard Drive
Type No HDD
Expansion / Connectivity
Expansion Bays 12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″ shared
Expansion Slots 2 (total) / 2 (free) x PCIe 3.0 x8
Interfaces 2 x SAS
4 x Ethernet 1000Base-T – RJ-45
2 x Ethernet 10Gb – RJ-45
2 x serial – 9 pin D-Sub (DB-9)
Miscellaneous
Features Built-in 4 cooling fans, SNMP support
Compliant Standards RoHS
Included Accessories Accessory pack
Power
Power Device 2 x internal power supply
Max Supported Qty 2
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V – 50/60 Hz
Dimensions & Weight
Width 43.05 cm
Depth 69.2 cm
Height 8.8 cm
Weight 19.7 kg
Manufacturer Warranty
Service & Support Limited warranty – 5 years
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 35 °C
Humidity Range Operating 5 – 95%
