TASCAM BO-32DE Rackmount 32-Channel DB25 to Euroblock I/O Adapter

Add to Wishlist
Key Features
  • For Live Stage & Commercial Installation
  • 32 Channels of I/O
  • 16 x Euroblock Connectors
  • 4 x DB25 Connectors
  • Connectors Function as Inputs or Outputs
  • Rotatable Orientation
  • Reversible Rack Ears
  • Passive Design Requires No Power Source
  • Includes 32 Euroblock Plug Tabs
  • Includes Cable & Screw Kits

1,599.00 د.إ

Add to Wishlist

TASCAM BO-32DE Overview

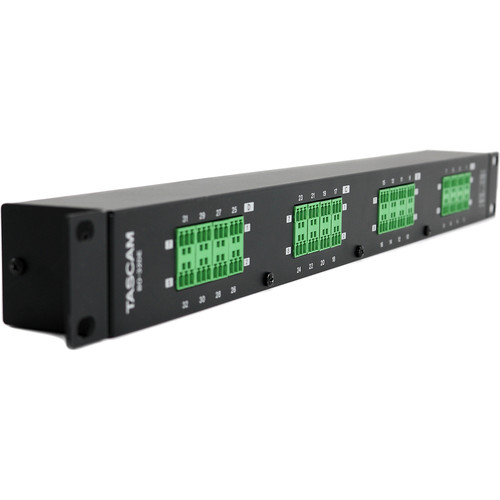

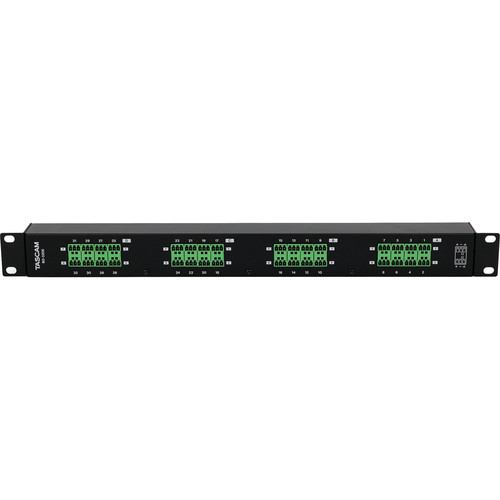

The TASCAM BO-32DE is a passive rackmount 32-channel DB25 to Euroblock I/O adapter designed to deliver multi-channel conversion between D-Sub 25-pin and Euroblock for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 32 channels of I/O include 16 Euroblocks and four DB25 connectors, all of which can be used as inputs or outputs.

The enclosure occupies 1 RU and allows rotatable orientation to avoid unnecessary stress on cables. The reversible rack ears enable the BO-32DE to be positioned with either the Euroblock or DB25 connectors facing forward. 32 Euroblock plug tabs, a cable kit, and a rackmount screw kit are included.

  • Ideal for providing connectivity between CD players, digital audio players, microphone preamps, zone mixers, distribution amplifiers, audio over IP converters, and more
  • 32 channels of I/O
  • 16 Euroblock balanced connectors
  • Four DB25 balanced connectors
  • Connectors function as inputs or outputs to accommodate a range of routing scenarios
  • Mount in either of two 180° rotations to simplify cable runs and avoid unnecessary stress on cables
  • Reversible rack ears can be positioned to face forward or backward so that either the Euroblock or DB25 connectors are front facing
  • Shallow 2″ depth uses minimal rack space
  • Passive design requires no power source
  • Includes 32 Euroblock plug tabs, cable kit, and rackmount screw kit
SKU: BO-32DE Category: Tag:
I/O Connectors
16 x Euroblock balanced connectors, 3.81 mm pitch
4 x DB25 balanced connectors (D-Sub 25-pin)
Other Connectors
8 x 4-40 UNC inch-type attachment screws
Dimensions
19.0 x 1.7 x 2.0″ / 482.6 x 44.1 x 50.8 mm
Weight
2 lb / 0.9 kg
Packaging Info
Package Weight
3.1 lb
Box Dimensions (LxWxH)
21 x 5.5 x 4.9″
