TASCAM DA-6400 Series 64-Channel Digital Multitrack Recorder

Add to Wishlist
Key Features
  • 48 kHz/24-bit Recording & Playback
  • 2.5″ SSD Recording Media
  • Hot-Swappable with Front-Loaded Storage
  • LCD Color Display
  • 2x I/O Slots for Optional Interface Card
  • SMPTE LTC Timecode Input and Output
  • Firmware Upload over USB
  • RS-422 Serial Remote Control
  • iPad & Computer Applications for Remote
  • Includes AC Power Cord

19,999.00 د.إ

Add to Wishlist

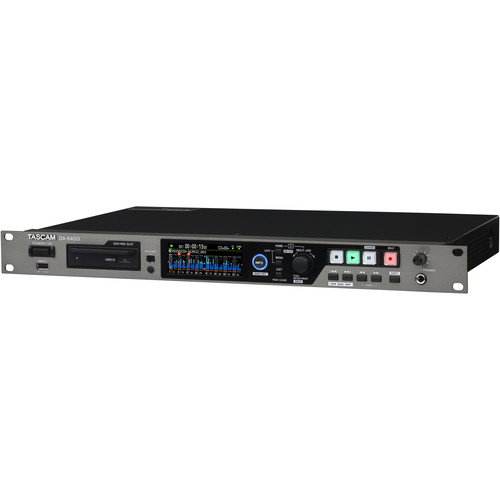

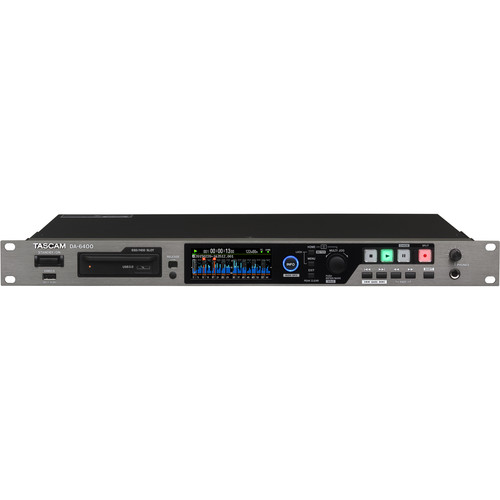

The DA-6400 from TASCAM is a 64-channel digital multitrack recorder/player that records to an internal SSD caddy for live and event recording. With I/O options like MADI and DANTE, it is ideal for live recordings, event capture, or to a backup for critical DAW sessions. In addition, the DA-6400 is a suitable option for professional remote recording.

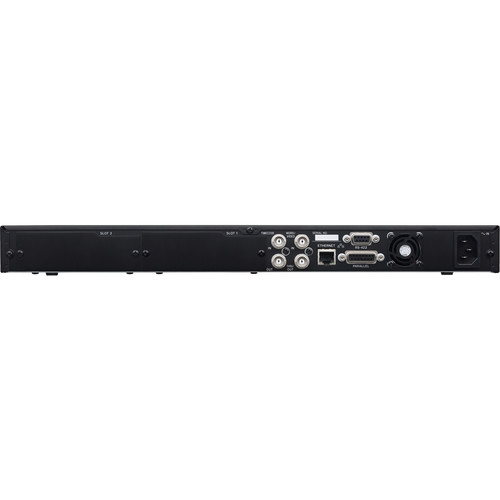

Furthermore, the recorder/player features an AK-CC25 hot-swappable caddy containing a 240GB TASCAM solid-state drive, and the caddy includes a USB-3 jack for stand-alone use. This allows you to hand the drive to the client to offload the BWAV-files into their DAW session. The DA-6400 records 64 tracks at 48 kHz/24-bit or 32 tracks at 96 kHz/24-bit. Also, included on the rear panel are SMPTE timecode, word clock, RS-422, parallel, and Ethernet connections.

The I/O options for the DA-6400 include the IF-MA64/EX interface card (sold separately), with both coaxial and optical MADI connections. This card contains a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions. Additional cards (sold separately) include the IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come.

In conclusion, the TASCAM DA-6400 combines high performance, flexibility, and complete reliability in a solid-state 64-track recorder.

SKU: DA-6400 Category: Tag:
Form Factor
Rackmount
Number of Tracks
64
Maximum Simultaneous Tracks
64x Recording (at 48 kHz)
32x Recording (at 96 kHz)
Display
1x Color LCD (Backlit)
Maximum Sampling Rate
96 kHz / 24-Bit
Number of Microphone Inputs
No
Built-In Microphone
No
Sample Pads
No
Signal Processing
EQ
No
Connectivity
Analog Audio I/O
1x 1/4″ TRS Headphone Output
Phantom Power
No
Digital Audio I/O
No
Host Connection
No
USB (Non-Host)
1x USB-A (USB 2.0)
Sync I/O
1x BNC LTC Input
1x BNC LTC Output
1x BNC Video Sync/Word Clock Input
1x BNC Video Sync/Word Clock Output/Thru
Network I/O
1x RJ45 Ethernet (Gigabit)
MIDI I/O
No
Other I/O
1x DE-15/DB-15 Parallel
1x DE-9/DB-9 RS-422
Performance
Headphone Output Power
45 mW per Channel
Impedance
Time Code Inputs:
10 Kilohms
Time Code Outputs:
600 Ohms
Video/Word Clock Inputs:
75 Ohms
Digital Audio
Audio File Formats
BWF, WAV
Sample Rates
44.1 / 48 / 88.2 / 96 kHz
Bit Depths
16 / 24-Bit
Sync Sources
Internal, SMPTE/LTC, Video, Word Clock
Frame Rates Supported
24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF
Audio Storage & Playback
Supported Media
USB Flash Drive, USB Hard Disk Drive
Media/Memory Card Slot
No
File System Support
FAT32
Compatibility
OS Compatibility
No
Mobile App Compatible
Yes: iPadOS Only
App Name: TASCAM DA-6400 CONTROL
Functionality: Remote Control
Power
Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC/DC Power Adapter
No
Power Consumption
21 W
Physical
Rackmount Size
1 RU
Operating Temperature
32 to 104°F / 0 to 40°C
Dimensions
19 x 12 x 1.8″ / 482.6 x 304.8 x 45.7 mm
Weight
8.6 lb / 3.9 kg
Packaging Info
Package Weight
12.6 lb
Box Dimensions (LxWxH)
21.5 x 16.4 x 5.6″
