TASCAM DP-24SD 24-Track Digital Portastudio

Add to Wishlist
Key Features
  • Record up to 8 Tracks Simultaneously
  • Records to SD/SDHC Cards
  • 19 Faders
  • Up to 24 Track Playback
  • 24-bit/48 kHz Resolution
  • 8 x Combo XLR-1/4″ Mic Inputs
  • Built-In Mixing & Mastering Effects
  • File Sharing via USB
  • 4GB SD Card and Power Supply Included

AED2,599.00

Add to Wishlist

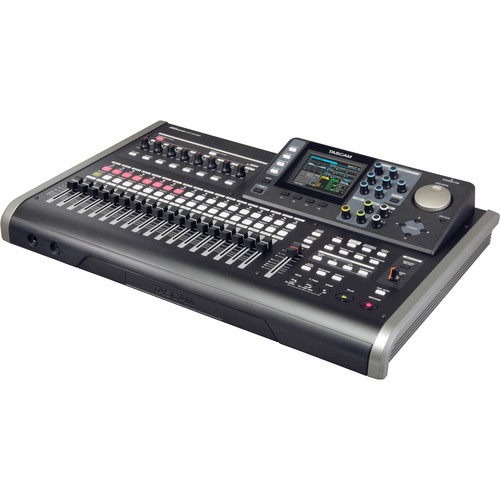

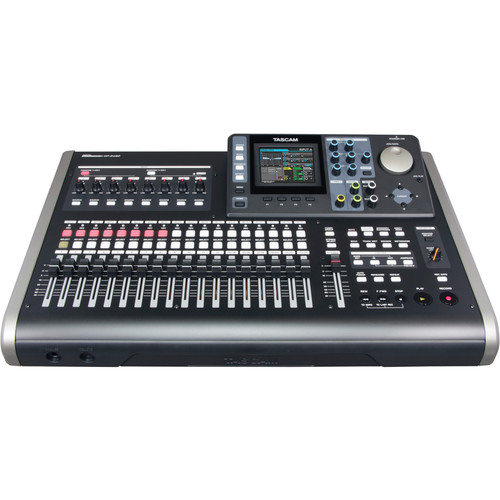

Allowing you to record hands-on without the need for a computer, theĀ DP-24SD 24-Track Digital PortastudioĀ fromĀ TascamĀ can track up to 8 sources simultaneously with support for up to 24 tracks on playback. It features eight combo XLR-1/4″ mic preamplifier inputs, with the eighth input also supporting Hi-Z sources such as guitar and bass. For hands-on control of your mix, the unit has 19 total faders (including the master) as well as a variety of EQ, compression, and guitar-based effects for tweaking your mix.

The unit records directly to SD and SDHC cards. Additionally, you can export your tracks to an external computer via the unit’s USB port. A power supply and 4GB SD card are included.

12 Mono/Stereo Selectable Faders
The recorder has 12 selectable tracks between MONO or STEREO. Use a STEREO track for recording synthesizer, or set the track to MONO when recording guitar or vocal. Not only that, you can create independent settings for each track (set #9 to #12 STEREO, then set #13 to #22 MONO)
19 Faders Eliminates Layer Structuring
The device features 19 total faders, one of which is assigned as the master fader
3.5″ Color LCD and Self-Illuminated Buttons
The DP-24SD has a 3.5″ LCD screen and select self-illuminated buttons, to view your entire creative process. Some of the illuminated buttons include SOURCE, SELECT, REC, MUTE
12 Rotary Knobs
The DP-24SD has employed rotary knobs to control qualities such as EQ, Effect Send and other related features
Records to SD/SDHC Media
The DP-24SD uses SD/SDHC media and a 4GB SD card is included. These cards provide secure shock resistance due to the absence of any moving parts. The file format in the DP-24SD is FAT 16 or 32. You can transfer the recorded files to your computer via USB.

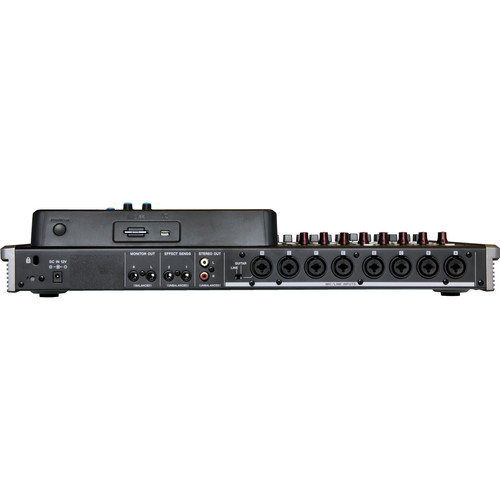

8 x Combo XLR-1/4″ Inputs, 8 Channel Recording,
The DP-24SD has 8 x combo XLR-1/4″ inputs. You can record up to eight sources at one time
3-Band EQ
Input A-H and each track are equipped with 3-band EQ. The equalizer for each track and each input are independent from other effects. Record with EQ for each individual track
8 Dynamic Effects, Guitar Effects, and Mix-Down Effects
Use up to 8 dynamics effects at once, one for each input source. For example, utilize the built-in compressor effect for your bass, guitar, and drum tracks. In addition, the DP-24SD has multiple guitar and mixing effects
Built-In Digital Mastering
The unit is equipped with mastering effects for finished-sounding mixes. There is no need for computers when recording and mixing. The mastering effects section includes a Multi-Band Compressor, EQ, Noise-Shaping Dither, and a Normalize Effects. You can create a 2-track master file for transfer to your computer and delivering to CD mastering or sharing online
Headphone Amplifier
The headphone amplifier provides ample monitoring in loud environments such as a rehearsal studios or live performance
Track bounce function
Virtual tracks (8 virtual tracks per one track)
Locate mark up to 99 at one song
Chromatic tuner
SKU: DP-24SD Category: Tag:
Form Factor
Rackmount
Number of Tracks
24
Maximum Simultaneous Tracks
24x Recording
Display
1x 3.5″ Color LCD
Maximum Sampling Rate
48 kHz / 24-Bit
Number of Microphone Inputs
8
Built-In Microphone
No
Input Level Adjustment
24x Fader
Meters
24x LED
Sample Pads
No
Signal Processing
Pad
No
High-Pass Filter
No
EQ
3-Band Graphic
Dynamic Processing
Compressor
Solo/Mute
Mute per Input Channel
Built-In Effects
Auto-Wah
Phaser
Chorus
Delay
Connectivity
Analog Audio I/O
1x Stereo RCA Coaxial Unbalanced Aux Output
2x 1/4″ TRS Balanced Monitor Output
2x 1/4″ TRS Headphone Output
2x 1/4″ TS Unbalanced FX Send
7x Combo XLR-1/4″ TRS Balanced Mic/Line Input
1x Combo XLR-1/4″ TRS Balanced/Unbalanced Line/Hi-Z Input
Phantom Power
48 V, Selectable On/Off
Digital Audio I/O
No
Host Connection
No
USB (Non-Host)
1x Mini-USB (USB 2.0, External Storage)
Sync I/O
No
Network I/O
No
MIDI I/O
No
Other I/O
1x 2.5 mm TRS Remote Input
Wireless
No
Performance
Frequency Response
20 Hz to 20 kHz Ā±1 dB
Maximum Input Level
XLR Inputs:
+2 dBu
1/4″ Inputs:
+20 dBu
Maximum Output Level
FX Send:
+6 dBV
Monitor Outputs:
+14 dBV
RCA Outputs:
+6 dBV
Headphone Output Power
70 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance
1/4″ FX Send:
200 Ohms
Monitor Outputs:
200 Ohms (Balanced)
RCA Outputs:
200 Ohms
XLR Inputs:
2.4 Kilohms
1/4″ Inputs:
ā‰„ 22 Kilohms
Hi-Z Inputs:
1 Megohm
SNR
ā‰„ 90 dB
THD
ā‰¤ 0.01%
Audio File Formats
WAV
Sample Rates
44.1 / 48 kHz
Bit Depths
16 / 24-Bit
Audio Storage & Playback
Supported Media
SD Card
Media/Memory Card Slot
Single Slot: SD/SDHC
Supported Media Capacity
SD:
512 MB Minimum to 2 GB Maximum
SDHC:
4 GB Minimum to 32 GB Maximum
File System Support
SD:Ā FAT16
SDHC:Ā FAT32
Compatibility
OS Compatibility
Windows XP
Windows Vista
Windows 7
Windows 8
macOS 10.6 or Later
Processor Requirement
PC:
300 MHz Intel Pentium or Better
Mac:
266 MHz PowerPC G3 or Better
RAM Requirements
PC:
128 MB
Mac:
64 MB
Mobile App Compatible
No
Mobile Device Compatibility
Android Smartphone (with USB-C)
Required Hardware
Available USB 2.0 Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC/DC Power Adapter
No
Power Consumption
12 W
Physical
Operating Humidity
0 to 95% (Recommended)
Operating Temperature
41 to 95Ā°F / 5 to 35Ā°C
Storage Temperature
32 to 100Ā°F / 0 to 37Ā°C
Certifications
ICESĀ
Dimensions
20.2 x 13.4 x 4.1″ / 513.1 x 340.4 x 104.1Ā mm
Weight
13.7Ā lb / 6.2Ā kg
Packaging Info
Package Weight
16 lb
Box Dimensions (LxWxH)
23.7 x 17.5 x 7.2″
