TASCAM MM-2D-X 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer

Add to Wishlist
Key Features
  • For PA, SR, and Pro Audio Environments
  • 2 Analog 3-Pin XLR Mic/Line Input/Output
  • 4 Dante Inputs / Outputs
  • Flexible Routing
  • PoE (Power over Ethernet) Power Supply

AED3,499.00

Add to Wishlist

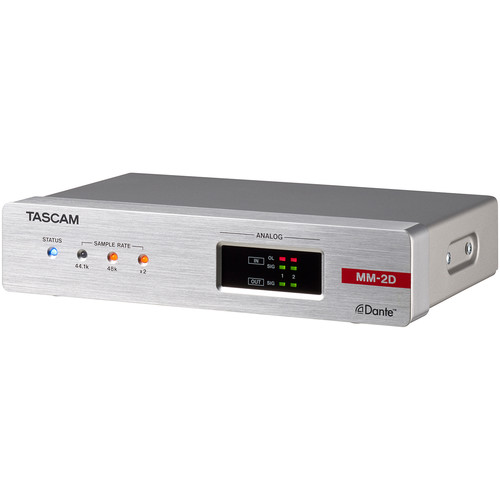

TheĀ MM-2D-X 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP MixerĀ fromĀ TASCAMĀ is a compact half-rack converter that can be used to convert 2-channel mic/line input/output signals on 3-pin XLR connectors into 4 Dante channels or the other way around for pro-audio applications.

The MM-2D-X Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included.

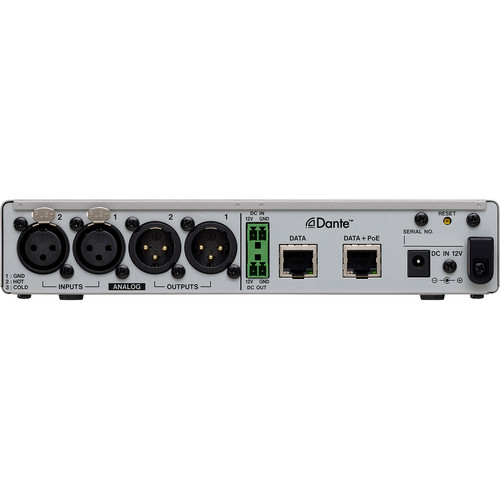

  • 2 analog outputs on 3-pin XLR connectors
  • 4 Dante inputs/outputs
  • Supports PoE (Power over Ethernet)
  • Sample rate up to 24-bit / 96 kHz
  • Supports Dante daisy-chain, which allows two Dante Compact Processor models to be connected without a network switch
  • Compatible with Dante Domain Manager and Dante AES67 mode
  • Flexible scene preset function allows you to work in different area situations (up to 50 presets)
  • Two types of user-control software available for Windows/Mac/iOS/Android devices:

    TASCAM DCP CONNECT, for integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.

    TASCAM EZ CONNECT, for end-users: simple app design for only the necessary functions such as area-volume settings, etc.

  • Remote control via Dante
  • Half-rack mountable size
  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor digital input/output signals
  • Configurable reference level (via remote control only)
  • Surface-mount adapters for installation under desks included
SKU: MM-2D-X Category: Tag:
General
Formats Supported
44.1/48/88.2/96 kHz, 16/24-Bit, 2 Channels
Input/Output
Connector
RJ-45
Transmission Protocol
Dante
Gigabit Ethernet
1000 BASE-T (IEEE 802.3ab)
Cable
Category 5e or Faster STP Cables
Analog Inputs
Connector
3-Pin XLR (1: Gnd, 2: Hot, 3: Cold)
Minimum Input Level
-74 dBu
Maximum Input Level
+26 dBu
Input Impedance
2.0 kOhms or Higher
Analog Outputs
Connector
3-Pin XLR (1: Gnd, 2: Hot, 3: Cold)
Nominal Output Levels
+4 dBu (when Ref. Level not āˆ’9 dBFS)
+6 dBu (when Ref. Level set to āˆ’9 dBFS)
Maximum Output Level
Switchable:
+15 dBu (Ref. Level: āˆ’9 dBFS)
+18 dBu (Ref. Level: āˆ’14 dBFS)
+20 dBu (Ref. Level: āˆ’16 dBFS)
+22 dBu (Ref. Level: āˆ’18 dBFS)
+24 dBu (Ref. Level: āˆ’20 dBFS)
Output Impedance
200 Ohms or Lower
Audio Performance
Mic In to Dante Out
Mic Amp EIN (Equivalent Input Noise): -125 dBu (150 Ohms, 22 kHz LPF+A, JEITA)
Frequency Response
Ā±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
Ā±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)
Distortion
0.005 % (when āˆ’1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Signal to Noise Ratio
105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Crosstalk
100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Dynamic Range
105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Frequency Response
Dante In / Line Out:
Ā±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
Ā±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)
Distortion
0.005 % (when -1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Signal to Noise Ratio
105 dB (44.1/48/88.2/96 kHz Sampling frequency, JEITA)
Crosstalk
100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Dynamic Range
105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Other Features
Power
PoE Class 0
TASCAM PS-P1220E AC Adapter (Sold Separately)
Power Consumption
6 W
Operating Temperature
32 to 104Ā°F / 0 to 40Ā°C
Dimensions
8.4 x 1.8 x 5.4″ / 21.4 x 4.4 x 13.6 cm
Weight
31.0 oz / 878.0 g
Packaging Info
Package Weight
2.925 lb
Box Dimensions (LxWxH)
19.3 x 12.4 x 9.9″
