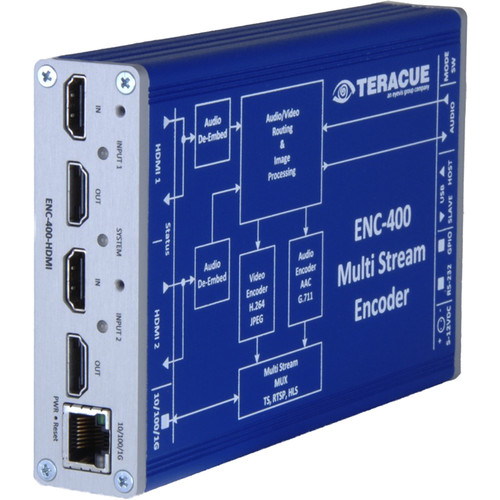

Teracue ENC-400 Single-HDMI HD/SD H.264 and MJPEG Encoder

Add to Wishlist

AED9,599.00

Add to Wishlist

TheĀ ENC-400Ā Single-HDMIĀ HD/SD H.264 and MJPEG EncoderĀ fromĀ TeracueĀ delivers multiple streams, in multiple bit rates and protocols, to multiple destinations. The frame synchronizer stabilizes signal processing. It provides loop-through outputs and can be used for redundancy switching or as sources for individual encoding. Besides the H.264 encoding technology, it also features MJPEG both for live streaming and recording.

Key Features
  • Up to 1920 x 1200 resolution
  • Simultaneous encoding video/audio 3/1
  • H.264 baseline, main, high-profile, and MJPEG
  • Up to 1920 x 1200p60, 3440 x 1440p 24, or 4K @ 15 Hz
  • Embedded and analog audio inputs
  • Logo, time, and text inserter
  • Adjustable frame rate and auto scaler
  • Up- and down-scaling with cropping
  • Frame synchronizer for seamless switching
  • Teracrypt and AES encryption
  • Motion detection app
  • Pro MPEG FEC
  • TS, RSTP, and RTMP streaming
  • HLS with adaptive bit rate support
  • Simultaneously stream and record in various formats
  • WebGUI, Telnet, and SNMP configuration
  • A/V multiplexer, stream container, RTSP, RTMP, TS, HLS
  • Stream synchronization, time stamping, source
  • Adaptive bit rate switching
  • Motion analysis
  • Transport stream with constant bit rate
  • Teracrypt/AES encryption
  • Simultaneous streaming and recording to USB drive (TS and MP4)
  • RS-232 console mode for local control, com-server mode for RS-232 IP bridging
  • 1 x GPI in TTL level, 1 x GPO out 20mA TTL
SKU: ENC-400-HDMI Category: Tag:

Teracue ENC-400Ā Specs

HDMI Input
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2; loop-through (without HDCP)
Video Encoding
Profiles: H.264 (MPEG-4 AVC Part 10; ISO/IEC 14496-10) and MJPEG (ISO/ITU)
Baseline, main profile, high-profile, encoder can be scaled up to 3 instances
Bit Rates: 300 Kb/s to 16 Mb/s, low-latency support, adaptive CBR
HDMI Resolutions
3840 x 2160p 15
3440 x 1440p 24
2560 x 1600p 30
2048 x 1536p 30
2048 x 1080p 60
1920 x 1200p 60
1680 x 1050p 60
1600 x 1200p 60
1600 x 900p 60
1280 x 1024p 60
1280 x 960p 60
1280 x 800p 60
1280 x 768p 60
1024 x 768p 60
800 x 600p 60
640 x 480p 60
Interface
HDMI Graphics
1 x Input
1 x Loop-through output
Resolution
1 x 1920 x 1200p 60
Encoding
1 x 1920 x 1200p 60
1 x 1920 x 1080p 30
1 x 1280 x 720p 60
1 x 1920 x 1080p 60
1 x 720 x 480p 30
Video Resolutions
1920 x 1080p 60/59.94/50/30/29.97/25/24
1920 x 1080iĀ 60/59,94/50
1280 x 720p 60/59.94/50
720 x 576i 50
720 x 480i 59.94
Audio Inputs
1 x Stereo-embedded HDMI
1 x 3.5 mm mini stereo, unbalanced, AC-coupled, 10 kOhms
Mic/Line Level: +4/0/-3/-6 dBU, selectable
Audio Encoding
MPEG-4 AAC LC (ISO/IEC 14496-3), 48 kHz, 16-bit sample rate, 32 to 256 kb data rate
Audio Outputs
1 x 3.5 mm mini stereo, unbalanced, AC-coupled
Output Gain: -78 to +9 dB, 16-bit stereo, PCM, sample rate 48/44.1/32/16/8 kHz
Multiplexer
ISO/IEC 13818-1 transport, ISO/IEC 14496-10 NAL (Network Abstraction Layer)
Streaming
Up to 3 simultaneous unicast or multicast streams
TS over UDP, TS over RTP, TS with Pro-MPEG FEC, TS video only, TS audio only, TS overĀ TCP, RTP/RTSP (UDP or interleaved, RFC 3984), RTMP push, HLS
Protocols
IP: HTTP, TCP/IP control protocol, UDP/RTP/TCP streaming, IGMP, SAP, unicast/multicast, SNMPv2, DHCP, IPV4, DNS, NTP
USB
USB host and slave device (recording or KVM mode)
Network
10/100/1000 TX Ethernet, RJ45, half/full duplex, auto-sensing or manual control
Synchronizer
Up-/down-scaling and cropping for each encoder, adjustable frame rate divider, auto-scaling for seamless switching and fixed resolution, or output-follows-input
Management
SNMP, SSH/Telnet and RS-232
Software updates via web browser
Security
Fault measurement with log generation, authorization via user password, IEEE802.1X, RTC, (Real-Time Clock) support
Housing
Closed, lightweight aluminum case, no fan
Agency Approvals
CE, RoHS
Humidity
Up to 90%, non-condensing
Temperature
32 to 113Ā°F / -0 to 45Ā°C
Power
5 to 12 VDC, <5 W per blade
Dimensions
1.2 x 4.13 x 6.69″ / 3.0 x 10.5 x 17.0 cm
Weight
14.1 oz / 400 g
Packaging Info
Package Weight
2.19 lb
Box Dimensions (LxWxH)
10.6 x 6.1 x 4″
