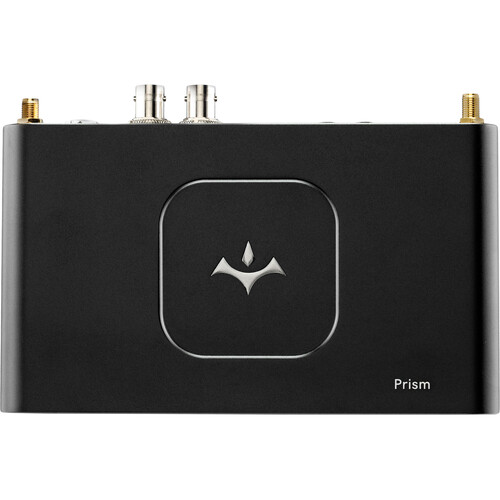

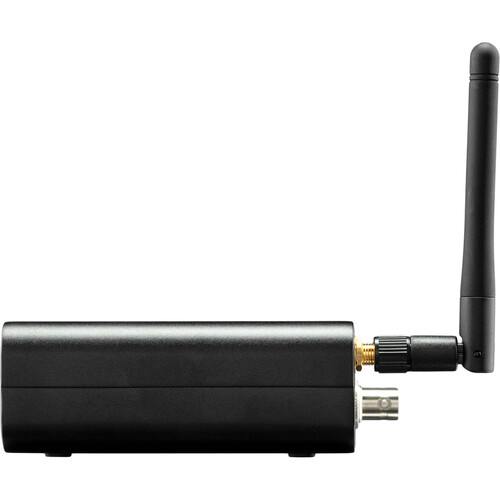

Teradek Prism Flex 855 Portable 4K HEVC/H.264 Encoder

Add to Wishlist
Key Features
  • Encode 4K Video for Streaming
  • 12G-SDI and HDMI Video Inputs
  • Gigabit Ethernet, Wi-Fi & USB Streaming
  • USB Ports Support Cellular Modems
  • Adaptive Bit-Rate Encoding up to 30 Mb/s
  • HEVC/H.265 and AVC/H.264 Codec Support
  • 4:2:2 10-Bit HDR Capable
  • SD Card Slot for Recording
  • Manage Wirelessly on iOS and Android
  • Support for Cellular Network Bonding

17,499.00 د.إ

Add to Wishlist

Encode, stream, and record up to 4K video with the Prism Flex 855 Portable 4K HEVC/H.264 Encoder from Teradek. The Prism Flex allows you to input up to 4K video via HDMI or 12G-SDI and output video via Gigabit Ethernet or Wi-Fi for live monitoring on a LAN, streaming to the Internet, or streaming to a remote destination over a cellular network. It supports encoding high-quality, low-bandwidth HEVC/H.265 and H.264 codecs as well as up to 4:2:2 10-bit HDR video.

The 12G-SDI and HDMI inputs can accept up to 4K resolution video and any resolution that is accepted by either input can be streamed live over hardwired Ethernet, Wi-Fi, or the dual USB ports that can be used to connect cellular modems. The Prism Flex also supports cellular bonding, so you can ensure a strong transmission by bonding both connections. You can also utilize the integrated SD card slot for recording your stream, or you can upload automatically to the cloud. The unit can be managed and monitored using the Prism App for iOS and Android to control resolution, bitrate, and bonding settings.

Key Features
Point-to-point and live streaming
Encode video between 1080p and 4K, 4:2:2 10-bit HDR capable
Stream in HEVC/H.265 and AVC/H.264 codecs via RTMP/RTMPS, SRT, MPEG-TS, and RTSP protocols
SD card slot for recording and automatic uploading to the cloud
Cloud-based IP video management platform Core allows for network bonding, multi-destination streaming, remote management, and monitoring
Manage Prism Flex from afar with the Prism app for iOS and Android and review stats like resolution, bitrate, and network connection
SKU: 10-2855 Category: Tag:
Key Specs
IP Video
H.264/H.265:
3840 x 2160 Encoding
Video I/O
1x HDMI Input
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Loop Output
Embedded Audio
HDMI/SDI
Recording Media
1x SD (Unspecified Type)
IP Encoding/Decoding
IP Video
H.264/H.265:
3840 x 2160 Encoding
Transport Protocols
RTMP, RTMPS, RTSP, SRT, TCP/IP
Wireless
Wireless
Wi-Fi 6 (802.11ax)
Wi-Fi
Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Cellular Support
No
Interfaces
Video I/O
1x HDMI Input
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Loop Output
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Analog Headphone Output
1x 1/8″ / 3.5 mm TRS Stereo Analog Input
Other I/O
1x Unspecified Connector 2.0 Input
1x Unspecified Connector 3.0 / 3.1/3.2 Gen 1 Input
2x RJ45 Gigabit Ethernet Input/Output
Embedded Audio
HDMI/SDI
Internal Recording
Recording Media
1x SD (Unspecified Type)
Power
Power I/O
1x LEMO 2-Pin (7 to 28 VDC up to 3 A) Input
Packaging Info
Package Weight
3.09 lb
Box Dimensions (LxWxH)
8.9 x 6.8 x 5.1″
