TERRAMASTER T12-423 12Bay NAS Storage – High Performance NAS for SMB with N5095 QuadCore CPU 8GB DDR4 Memory, 2.5GbE Ports x 2, Network Storage Server, Diskless

Add to Wishlist
  • Powerful Hardware: N5095 Quad-core 2.0GHz CPU, 8GB RAM DDR4 (expandable up to 32GB). Dual 2.5-Gigabit Ethernet ports – Supports up to 5 Gbps under Link Aggregation. 12Bay NAS designed for SMB High Performance Requirements.
  • Maximum Internal Raw Capacity: 240TB (20 TB drive x 12). Compatible with 3.5″ and 2.5″ SATA HDD, 2.5″ SATA SSD. Supports RAID 0/1/ 5/6/10, Supports online capacity expansion and online migration. The built-in M.2 2280 NVMeSSD slot can realize SSD cache acceleration and increase the storage efficiency of the disk array several times.
  • Multiple Backup Solutions: CentralizedBackup, DupleBackup, Snapshot, CloudSync, enhance the Safety of your Data with multiple backup applications.
  • Easily build file storage servers, mail servers, web servers, FTP servers, MySQL databases, CRM systems, Node.js, and Java virtual machines, as well as a host of other commercial applications.
  • Small-sized compact design, can be used vertically and horizontally. Features an aluminum-alloy shell and intelligent temperature control ultra-quiet fan, good in heat dissipation and Very Quiet.

7,999.00 د.إ

Add to Wishlist

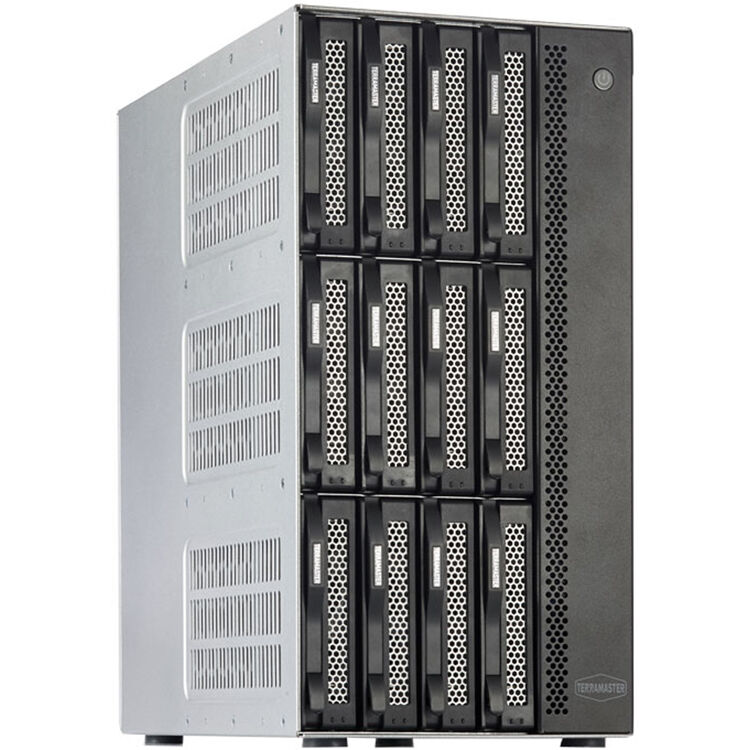

The T12-423 12-Bay NAS Enclosure from TerraMaster is suitable for SMB users who need high-performance storage solutions. It is powered by a 2.0 GHz Intel Celeron 4-Core processor, 8GB of DDR4 RAM (upgradeable to 32GB), integrated Intel UHD graphics, and AES-NI hardware encryption. It runs using TOS, a Linux-based operating system. This unit has twelve SATA drive bays that natively support 3.5″ hard drives, as well as 2.5″ hard drives and SSDs, along with one M.2 NVMe slot for SSD caching. In a RAID 0 configuration, the T12-423 can transfer data at speeds up to 283 MB/s.

Also featured are two USB-A 3.2 Gen 2 Type-A ports, which allow it to be connected to external peripherals. Network connectivity is achieved via two 2.5 Gigabit Ethernet ports with port trunking failover support, which helps to provide redundancy in the case that a LAN connection malfunction occurs on one port. Supported RAID modes include RAID 0, 1, 5, 6, and 10, each of which provides performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD and Single modes are also available, allowing each drive bay to be individually utilized.

TerraMaster has engineered the T12-423 to be energy efficient. Not only does it feature three 80mm fans to help keep the system running cool, the server supports numerous scheduled power on / off cycles and hard-drive hibernation to further minimize power consumption and operational expenses. The T12-423 operates using an internal 500W power supply and also includes a power cord, an RJ45 cable, and screws. Protection is provided by a limited 2-year warranty.

Designed for High Performance Requirements
The 12-bay T12-423 is suitable for SMB users who need high-performance storage solutions. High performance means that users can easily handle high-load assignments, while multiple business-level backup solutions guarantee user’ data safety and prevent the potential risk of data loss.
Excellent Performance
This is a high-performance storage solution for iSCSI virtual storage and database service for SMB users. It features a 2.0 Intel Celeron Quad-Core processor with a 2.9 GHz maximum turbo speed. It also features integrated graphics, AES NI hardware encryption, two 2.5GbE interfaces, and 4 GB of DDR4 dual-channel memory that is expandable up to 32GB.
The Ideal Choice for SMB Data Management
The T12-423 can deal with high-load workflow and a high level of concurrent user access. Rapid document storage and management are facilitated by high-speed document retrieval, efficient transmission performance, and rich TerraMaster disaster backup and recovery solutions.
Higher Transmission Speed
The T12-423 is configured with two 2.5 GbE interfaces, supporting 2.5GbE high-speed network bandwidth. The transmission speed can reach 283 MB/s in RAID 0 . Link Aggregation provides a network bandwidth up to 5 Gb/s, thus providing a cost-effective solution for multi-user and high-concurrent file access.
High Speed Network and Flexible Extension
The T12-423 is configured with two 2.5GbE interfaces and Link Aggregation provides a network bandwidth up to 5 Gb/s. The built-in M.2 NVMe slot realizes SSD cache acceleration and significantly increases the storage efficiency of the disk array. To meet performance enhancement expansion requirements, the memory can be upgraded to a max of 32GB.
Small-Sized Compact Design
Structural optimization has remarkably reduced the space occupied by the T12-423, thus realizing product miniaturization. By adopting both vertical and horizontal designs, the T12-423 better satisfies the usage requirements of small-sized business users with limited space.
Very Quiet
It is essential that a desktop NAS is very quiet. The T12-423 has a high-quality silent fan and optimized internal structure, which increases the equipment’s internal wind pressure and reduces the working temperature of the hard disk. This remarkably reduces resonance between the equipment components and the hard disk, so even in a full-load working environment, the T12-423 maintains a low-noise performance.
Flexible Configuration and Management of Disk Arrays
The T12-423 supports rich RAID types, which can be selected based on your data access and data protection level requirements. Hot Spare can be configured for the disk array and any of the following array types can be chosen according to the number of hard disks: Single, RAID 0, 1, 5, 6, and 10. To reduce the risk of material loss and ensure important materials are kept, the T12-423 supports online capacity expansion and online migration of RAID array.
Across-Platform File Management and Sharing
Supporting most of file services (SMB, AFP, SFTP/FTP, iSCSI, NFS, and WebDAV), the T12-423 can fully satisfy file management requirements in different network environments. TerraMaster’s web file management tool, File Manager, is easily operated with visualized interfaces, while its classification and search functions can make it simple to organize and share data.
Enhance the Safety of Your Data with a Superior File System
Superior storage technology and optimized snapshot technology are the cornerstones of the Btrfs file system, which is what TerraMaster’s T12-423 relies on for advanced data protection, the prevention of data corruption, and minimal maintenance expenses. This file system promotes high data integrity while promoting flexibility and efficiency in the areas of data protection and recovery. The Btrfs file system features data recovery capabilities at the file or folder level for faster data recovery and greater flexibility for businesses.
Virtualization Storage Solutions
TerraMaster iSCSI supports VMware vSphere and Windows Hyper-V virtualization storage solutions. The simple management interface enhances working efficiency and optimizes calculation efficiency, as well as facilitating the shunt of storage operations.
Multiple Backup Solutions

Integrated with multiple backup applications, the T12-423 uses visual user interfaces and reliable storage technologies to protect your precious data.

Centralized Backup
Backups for virtual machines, employees’ PCs, and file servers are managed centrally, facilitating the rapid restoration of data after an incident.

Duple Backup
To provide several offsite backup versions, Duple Backup offers advanced data protection by backing up files to another remote TNAS, file server, or cloud drive.

Snapshot
Take continuous snapshots of your folders or iSCSI LUNs by enabling snapshot schedule. When a disaster occurs, it can roll back to points-in-time and restore to the last backup, ensuring your data is well protected.

CloudSync
Back up your data to a mainstream cloud drive to provide remote backup versions, making your data more secure.

Striving to Satisfy Small and Medium-Sized Businesses
Business users can easily build file storage servers, mail servers, web servers, FTP servers, MySQL databases, CRM systems, Node.js, and Java virtual machines, as well as a host of other commercial applications.
SKU: T12-423 12-Bay Category: Tag:

TerraMaster T12-423 External HDD/SSD Specs

Computing
CPU 2 to 2.9 GHz Quad-Core
Processor Intel Celeron N
GPU Intel UHD Graphics
Total Installed Memory 8 GB
User-Replaceable Memory 1 x 8 GB
Total Memory Slots 2 x SO-DIMM
Maximum Memory Capacity 32 GB
General
Number of Bays 12 x 2.5″/3.5″
1 x M.2 (2280)
I/O 2 x RJ45 (2.5GbE)
2 x USB-A (USB 3.1/3.2 Gen 2 (10 Gb/s))
1 x HDMI
Compatible Drive Interface SATA (Unspecified Version)
Media Card Slots None
RAID RAID 0, 1, 10, 5, 6, JBOD, Single
Hot-Swap Support Yes
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CIFS/SMB
FTP
HTTPS
IPv4
IPv6
NFS
SFTP
SMB
SNMP
SSH
WebDAV
iSCSI
iSCSI LUN 256
iSCSI Target 128
Max Concurrent Connections 500
Max Folders 512
Max Sync Tasks 8
Max Groups 512
Max User Accounts 2048
Max Volume Number 256
Software
Installed Operating System TOS
Supported File Systems Internal: BTRFS, EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS
OS Compatibility Windows
macOS
Linux
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
App Compatible No
Supported Browsers Chrome, Edge, Firefox, Safari
Supported Languages English
French
German
Hungarian
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese
Turkish
Security
Encryption AES-NI (Hardware-Based)
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source Internal Power Supply
Power Consumption 94 W (Typical)
32 W (Standby)
PSU Wattage 1 x 500 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Storage Temperature -5 to 140°F / -20 to 60°C
Certifications FCC, CE, CCC, RoHS, WEEE
*as per Manufacturer
Physical
Status Monitoring LED Indicator
Cooling 3 x 80 mm Fans
Noise Level 31.4 dBA
Built-In Speakers None
Dimensions 13.1 x 11.6 x 6.4″ / 334 x 295 x 163 mm
Weight 22.7 lb / 10.3 kg without Drives
Packaging Info
Package Weight 21.16 lb
Box Dimensions (LxWxH) 17.1 x 14.6 x 9.6″
