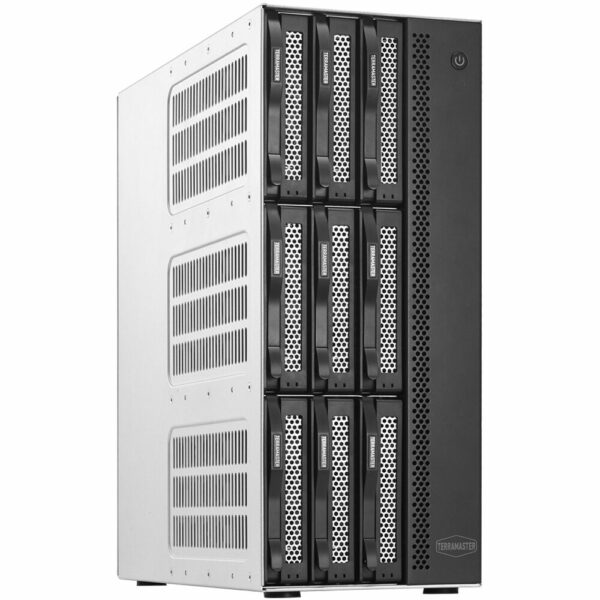

TerraMaster T9-423 Specs
Computing
| CPU | 2 to 2.9 GHz Quad-Core |
| Processor | Intel Celeron |
| Total Installed Memory | 8 GB DDR4 |
| User-Replaceable Memory | 1 x 8 GB |
| Total Memory Slots | 2 x SO-DIMM |
| Maximum Memory Capacity | 32 GB |
General
| Number of Bays | 9 x 2.5″/3.5″ 1 x M.2 (2280) |
| I/O | 2 x RJ45 (2.5GbE) 2 x USB-A (USB 3.1/3.2 Gen 2 (10 Gb/s)) 1 x HDMI |
| Compatible Drive Interface | SATA (Unspecified Version) |
| Media Card Slots | None |
| Form Factor | Rackmount |
| RAID | RAID 0, 1, 10, 5, 6, JBOD, Single |
| Hot-Swap Support | Yes |
| Wake on LAN | Yes |
| Link Aggregation and Failover Support | Yes |
Networking
| Supported Protocols | AFP FTP NFS SFTP SMB WebDAV |
| iSCSI LUN | 256 |
| iSCSI Target | 128 |
| Max Concurrent Connections | 500 |
| Max Folders | 512 |
| Max Sync Tasks | 8 |
| Max Groups | 512 |
| Max User Accounts | 2048 |
| Max Volume Number | 256 |
Software
| Installed Operating System | TOS |
| Supported File Systems | Internal: BTRFS, EXT4 External: EXT3, EXT4, FAT32, HFS+, NTFS |
| OS Compatibility | Windows macOS Linux *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| App Compatible | Yes: Android & iOS *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Supported Browsers | Chrome, Edge, Firefox, Safari |
| Supported Languages | English French German Hungarian Italian Japanese Korean Portuguese Russian Spanish Traditional Chinese Turkish |
Security
| Encryption | AES-NI (Hardware-Based) |
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | Internal Power Supply |
| Power Consumption | 72 W (Typical) 29 W (Standby) |
| PSU Wattage | 1 x 250 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Certifications | CE, CCC, FCC, RoHS, WEEE *as per Manufacturer |
Physical
| Color | Silver / Black |
| Audible Alarm | Yes |
| Cooling | 3 x 80 mm Fans |
| Noise Level | 31.2 dBA |
| Built-In Speakers | None |
| IR Sensor | None |
| Dimensions | 13.1 x 11.6 x 5.3″ / 334 x 295 x 135 mm |
| Weight | 19.6 lb / 8.9 kg |
