Theatrixx Technologies HDMI 2.0 + Ethernet to Fiber 10G xVision Converter

Add to Wishlist
Key Features
  • Plug-and-Play Operation
  • SFP Fiber-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System
  • powerCON TRUE1 Input & Loop Output
  • Designed and Assembled in Canada

11,199.00 د.إ

Add to Wishlist

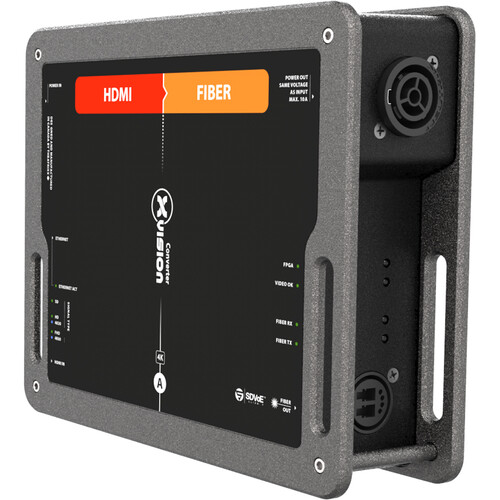

The HDMI 2.0 + Ethernet to Fiber 10G xVision Converter from Theatrixx Technologies is a plug-and-play HDMI + Ethernet to 10G fiber (with optional module) video converter designed to be easily used while on the road. It features an integrated power supply with a locking powerCON TRUE1 connector and a built-in powerCON TRUE1 loop output to power an optional accessory or display.

Key Features
Integrated power supply with locking powerCON TRUE1 connector.
Built-in convenience powerCON TRUE1 loop output.
Magnetic stacking system and non-skid rubber pad for tabletop application. Saves at least 10 gaffer tape rolls a year.
Multiple mounting options including C-clamp, wall-mount adapter, LCD mount adapter, and belt adapter.
Rugged, tour-ready and aesthetic enclosure
Plug-n-play operation with no dip switches, buttons, or menus to fumble with.
Clear and ample status LED indicators for quick troubleshooting.
Easy in-the-field identification with unique color and alphabetic coding system.
SFP-based video transmission for interoperability with standard SDI over fiber devices.
Choice of three optical connectors to add, each available as single-mode and multi-mode types
Designed and assembled in Canada
SKU: XVVHDMI2FIBER Category: Tag:
Inputs / Outputs
Video Inputs
1x HDMI (2.0) Female
Video Outputs
1x ST Fiber Female
Other I/O
1x RJ45 LAN Input/Output
Format Support
Input Video Format
HDMI (8/10-Bit 4:4:4/4:2:2)
DCI 4K at 60 fps
Embedded Audio
HDMI: 8-Channel
Standards
Video Standard Compliance
SMPTE 259M/292M/424M/425M-A/425M-B/ST-2082-1/ST-2082-10
HDR Support
Not Specified by Manufacturer
Hardware
Wireless
No
Power
Power I/O
1x powerCON TRUE1 Input
1x powerCON TRUE1 Output
Power Consumption
Device: 100 to 240 VAC at 10 A (45 W)
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Operating Humidity
0 to 90%
General
Certifications
FCC
Dimensions
8.7 x 7.1 x 2.4″ / 221 x 180 x 62 mm
Weight
4.4 lb / 2 kg
