Theatrixx Technologies HDMI Distribution Amplifier 1 to 4 Video Converter

Add to Wishlist
Key Features
  • Supports up to HDR 4K/2K Resolution
  • Locking HDMI Input
  • Four Locking HDMI Outputs
  • Automatic Downscaling per Output
  • Plug-and-Play Operation
  • Magnetic Stacking System
  • Multiple Mounting Options
  • Locking powerCON Connector
  • Built-In 120V Outlet

2,399.00 د.إ

Add to Wishlist

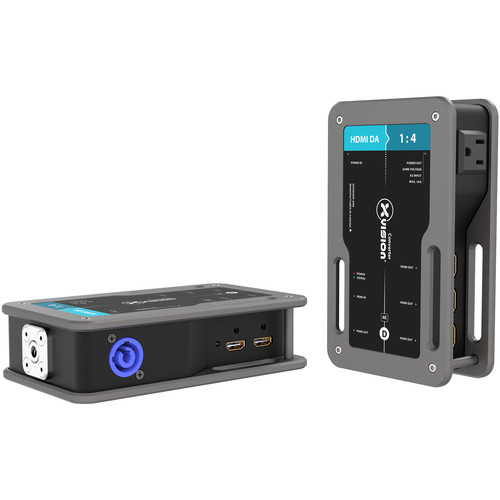

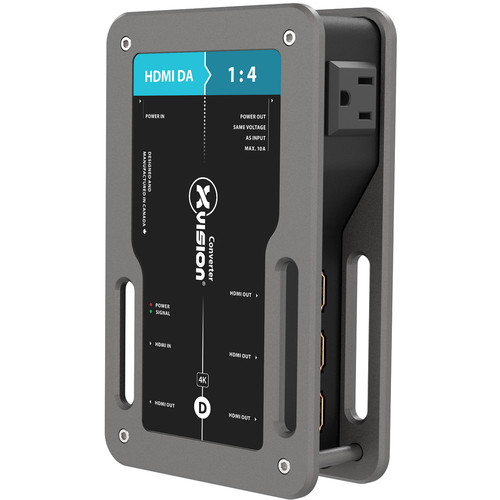

The HDMI Distribution Amplifier 1 to 4 Video Converter from Theatrixx Technologies is designed to be used while on the road and supports video at resolutions up to HDR 4K/2K at 60 Hz. It features an integrated power supply with a locking powerCON connector and a built-in 120V outlet to power a nearby projector, TV, or laptop. There is a locking HDMI input and four HDMI outputs. Embedded audio is supported as well. This converter can be mounted using a C-clamp, wall-mount adapter, LCD mount adapter, or belt adapter (available separately).

Magnetic stacking system and non-skid rubber pad for table top
Rugged, tour-ready aesthetic enclosure
Plug-and-play operation
Clear and ample status LED indicators for quick troubleshooting
HDMI input tested and compatible with Apple computers and iPad
Easy on-the-field identification with unique color and alphabetic coding system
Locking HDMI port prevents accidental disconnection
Automatic downscaling per output allows you to send the same signal to 4K and Full HD displays with a single signal source
Single-link 600 MHz (18 Gb/s) bandwidth
Embedded audio support for DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, and LPCM
Designed and assembled in Canada
SKU: XVV-HDMIDA4 Category: Tag:
Inputs / Outputs
Video Inputs
1x HDMI (2.0a)
Video Outputs
4x HDMI (2.0a)
Format Support
Input Video Format
HDMI (8/10-Bit 4:4:4/4:2:0)
UHD 4K at 60 fps
DCI 2K 60 fps
Output Video Format
HDMI (8/10-Bit 4:4:4/4:2:0)
UHD 4K at 60 fps
DCI 2K 60 fps
Embedded Audio
HDMI
Standards
HDCP Support
Yes, Version 2.2
DTS Compatibility
DTS, DTS-HD Master Audio
Dolby Compatibility
Dolby Digital, Dolby TrueHD
Power
Power I/O
1x powerCON (90 to 250 VDC at 10 A) Input
1x NEMA 5-15R (90 to 250 VDC at 10 A) Output
Power Consumption
Power Supply: 25 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Operating Humidity
0 to 90%
General
Certifications
CAN/CSA-C22.2 NO. 60950, EN 60950-1, 55022, FCC Part 15 Class A, UL 60950
Dimensions
7.09 x 4.21 x 1.97″ / 180 x 107 x 50 mm
Weight
2.2 lb / 1 kg
Packaging Info
Package Weight
3.325 lb
Box Dimensions (LxWxH)
9.3 x 6.4 x 6.1″
