Theatrixx Technologies xVision HDMI 2.0 to 12G-SDI Converter

Add to Wishlist
Key Features
  • Locking powerCON Connector
  • HDMI 2.0 Input with Locking System
  • Dual 12G/6G/3G/HD/SD-SDI Outputs
  • Resolutions up to DCI 4K60
  • 4:2:2 & 4:4:4 Sampling
  • Automatically Detects Incoming Signal
  • HDMI & powerCON Cables Included

4,999.00 د.إ

Add to Wishlist

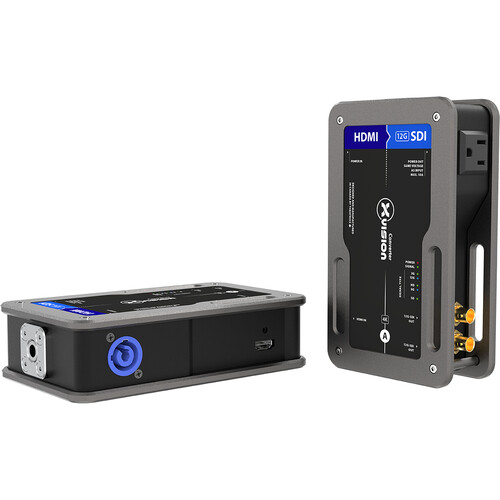

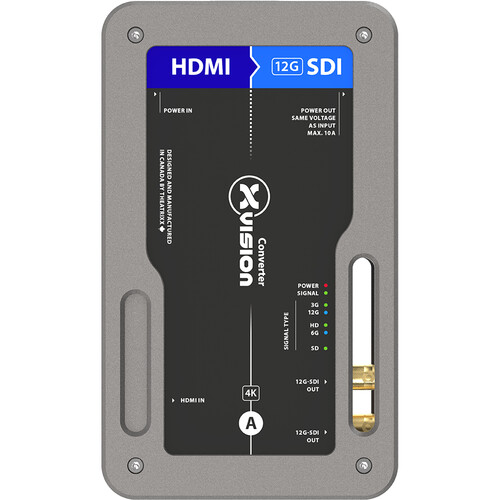

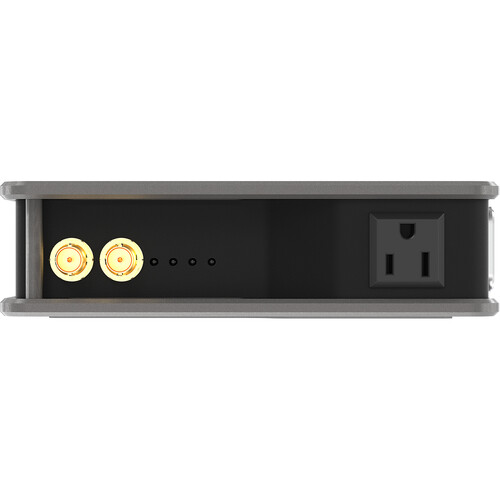

The xVision HDMI 2.0 to 12G-SDI Converter from Theatrixx Technologies is a sturdy and reliable signal converter designed for use when working on the road. It boasts integrated power with a locking powerCON connector and a built-in convenience AC power outlet for powering nearby devices, such as projectors, TVs, or a laptop. The unit has two SDI connectors capable of handling 12G/6G/3G/HD/SD-SDI signals that can be automatically detected and switched, and an HDMI 2.0 port with a locking system to protect from accidental disconnection. Supporting resolutions up to DCI 4K60, the xVision handles 4:2:2 and 4:4:4 video sampling and 48 kHz, 24-bit audio sampling. Included in the package are a 3.3′ HDMI cable and a 5′ AC Mains to powerCON cable.

Features at a Glance
  • Integrated power supply with locking powerCON connector
  • Built-in convenience AC outlet
  • Magnetic stacking system and non-skid rubber pad for tabletop application
  • Multiple mounting options: C-clamp, wall mount adapter, LCD mount adapter, and belt adapter
  • Rugged, tour-ready, and aesthetic enclosure
  • Plug-n-play operation; no dip switches, buttons, or menus to fumble with
  • Clear and ample status LED indicators for quick troubleshooting
  • Easy on-the-field identification with unique color and alphabetic coding system
  • Locking HDMI port prevents accidental disconnection
  • HDMI input tested and compatible with Apple devices
  • Integrated SDI splitter for dual SDI outputs
  • Alternate form factor—also available as a reversible module
SKU: XVVHDMI2SDI-12G Category: Tag:
Video Inputs
1x HDMI (2.0)
Audio Inputs
No
Video Outputs
2x BNC (12G-SDI)
Audio Outputs
No
Expansion Slots
No
Format Support
Output Video Format
SDI
DCI 4K at 23.98/25/29.97/30/50/59.94/60 fps
UHD 4K at 23.98/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
720p at 50/59.94/60 fps
480i / 525 lines at 23.98/29.97 fps
576i / 625 lines at 25 fps
Standards
Video Standard Compliance
SMPTE 259M/292M/424M-A/425M-A/425M-B
HDR Support
Not Specified by Manufacturer
Wireless
No
Power I/O
1x powerCON Input
1x NEMA 5-15R Output
Power Consumption
100 to 120 VAC (15 W)
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
General
Certifications
FCC, C-Tick
Dimensions
7.1 x 4.2 x 2″ / 180 x 107 x 50 mm
Weight
2.2 lb / 1 kg
Packaging Info
Package Weight
3.54 lb
Box Dimensions (LxWxH)
8.9 x 6.7 x 6.2″
