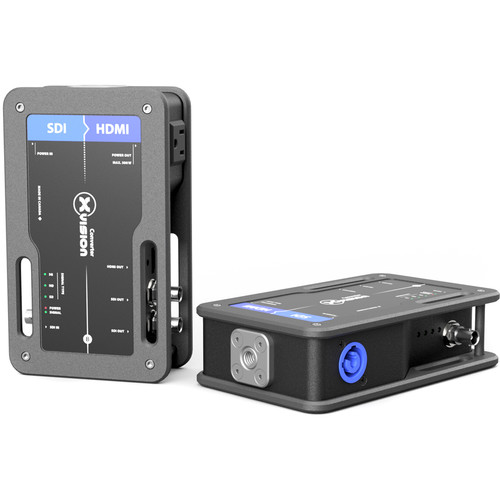

Theatrixx Technologies xVision SDI to HDMI Video Converter

Add to Wishlist

AED2,799.00

Add to Wishlist

The xVision SDI to HDMI Video Converter from Theatrixx Technologies converts an SDI signal to HDMI, and features an integrated power supply with locking PowerCON connector. This converter is equipped with a built-in 120V outlet to power nearby projector, monitor, laptop, and more, while eliminating the need for a power bar to power both the converter and the device. For added convenience, the converter supports reclocked and amplified SDI loop-through output. A locking HDMI port prevents accidental disconnection. The xVision SDI to HDMI converter is ideal for use in professional A/V events, presentations, live shows, and tours.

  • Integrated power supply with locking PowerCON connector
  • Built-in 120V outlet to power nearby device eliminates the need for a power bar
  • Magnetic stacking system and non-skid rubber pad saves on gaffer tape rolls
  • Multiple mounting options include C-clamp, wall mount adapter, LCD mount adapter, and belt adapter
  • Rugged, tour-ready, and durable enclosure
  • Plug-and-play operation avoids DIP switches, buttons, or menus
  • Clear and ample status LED indicators for quick troubleshooting
  • HDMI input tested and compatible with MacBook and iPad
  • Easy on-the-field identification with unique color and alphabetical coding system
  • Locking HDMI port prevents accidental disconnection
  • Reclocked and amplified SDI loop-through
SKU: XVV-SDI2HDMI Category: Tag:

Theatrixx Technologies SDI2HDMI Specs

Video Inputs
1 x 3G/HD/SD-SDI, BNC
Video Output
1 x HDMI 1.2 type A with lock system
2 x 3G/HD/SD-SDI, BNC
Format Support
3G:
1080p: 60/59.94/50

HD:
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD:
625: 25 (PAL)
525: 29.97/23.98 (NTSC)
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Sample rate of 48 kHz, 24-bit
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects incoming signal format
Power Supply
Built-in power supply
PowerCON input
Edison NEMA 5 to 15 output
Power Consumption
25 W
Operational Voltage Range
90 to 125 V
90 to 250 V also available (with PowerCON True1)
Relative Humidity
0 to 90%, non-condensing
Overall Dimensions (H x D x W)
2.0 x 7.1 x 4.2″ / 5.0 x 18 x 11 cm
Weight
2.2 lb / 1.0 kg
Packaging Info
Package Weight
3.55 lb
Box Dimensions (LxWxH)
8.8 x 6.3 x 6.1″
