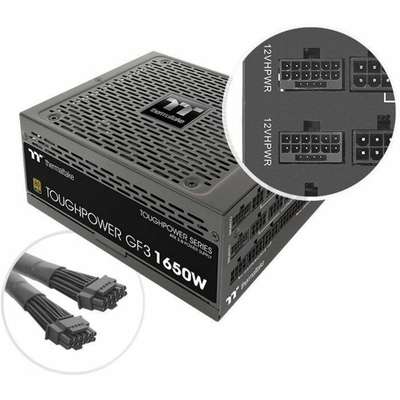

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel’s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. It can pipe up to 600W of power to PCIe 5.0 graphics cards.
| Category | Specification |
|---|---|
| General Information | |

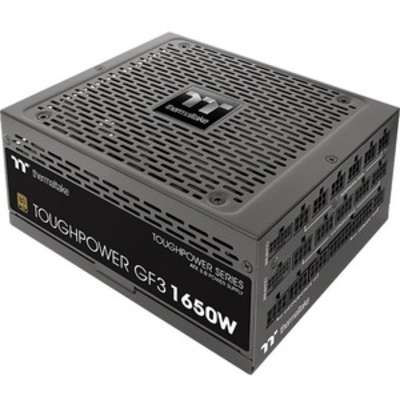

| Product Name | Toughpower GF3 1650W 80+ Gold ATX 3.0 |
| Manufacturer Part Number | PSTPD1650FNFAGU4 |
| Product Line | Toughpower GF3 |
| Product Model | TPD-1650AH3FSG |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.0 |
| Number of Fans | 1 |
| Modular | Yes |
| Power Description | |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V, 5 V, -12 V, 12 V DC |
| Output Voltage Detail | 3.3 V @ 25 A, 5 V @ 25 A, -12 V @ 0.3 A, 5 V @ 3 A, 12 V DC @ 137.5 A |
| Output Current | 25 A, 300 mA, 3 A, 137.5 A |
| Output Power | 1650 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.4″ |
| Width | 5.9″ |
| Depth | 7.1″ |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Other Information | |
| Product Family | Toughpower GF3 |
