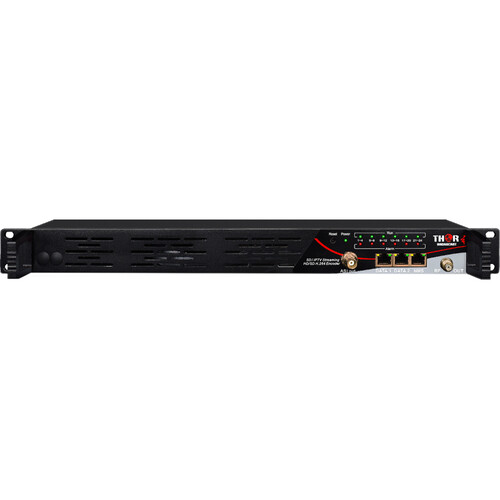

Thor 12 x SDI to 16 x CATV RF QAM (Cable) Modulator with IPTV Output

Add to Wishlist
Key Features
  • 12 x SD/HD/3G-SDI BNC Inputs
  • 16-Output CATV RF QAM (Cable)
  • Simultaneous IP Transport Streams
  • Up to 1080p60 Low-Latency Video
  • 16 x MPTS Outputs over UDP and RTP/RTSP
  • 1 x 1000M Base-T Ethernet Interface
  • PID Remapping, Accurate PCR Adjusting
  • Web Network Management
  • Closed Captioning Input Support

د.إ67,499.00

Add to Wishlist

Thor QAM-IPLL Overview

The Thor 12 x SDI to 16 x CATV RF QAM (Cable) Modulator with IPTV Output supports up to 1080p60 low-latency video. This high-density HD encoder and RF modulator has an all-new platform for modulating up to 12 SDI (BNC) input sources while simultaneously being able to output IP transport streams from those sources.

SDI Inputs/RF QAM Output
  • Input video using up to 12 SD/HD/3G-SDI ports and output up to 16-channel RF QAM (cable) output
  • MPEG2 and MPEG4 AVC/H.264 encoding
Multiplexing
  • 16 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP
  • Eight MPTS IP output over UDP, RTP/RTSP (Data2 port only)—only for DVB-T RF out
Applications
Space-saving solution for hotels, stadiums, malls, theaters, hospitals, military locations, and educational use
SKU: H-12SDI-QAM-IPLL Category: Tag:

Thor QAM-IPLL Specs

Inputs / Outputs
Video I/O
12x BNC (3G-SDI) Input
1x Coaxial F-Type Input
1x Coaxial F-Type Output
1x BNC (HD-SDI) Output
Power
Power Source
AC Input (Built-In)
AC Input Power
110 to 220 VAC, 50 / 60 Hz
Power Consumption
20 W
Physical
Mounting
1x RU
Dimensions
19 x 17.3 x 1.7″ / 482 x 440 x 44 mm
Weight
17.6 lb / 8 kg
