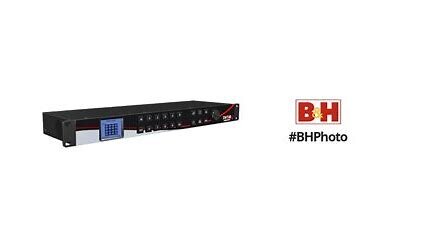

Thor 16×16 SDI Switcher and Multiviewer

Add to Wishlist
  • 16 x SDI Inputs, 16 x SDI Outputs
  • 2 x SDI and 1 x HDMI Multiview Outputs
  • Supports 1080p60 Video in Multiview Mode
  • Supports DCI 2Kp30 in Switcher Mode
  • Pushbutton and RS-422 Control
  • 20 Preset Multiview Layouts
  • 2″ LCD Screen, Overlays
  • LAN Connectivity, Redundant Power Supply

AED8,499.00

Add to Wishlist

Use the 16×16 SDI Switcher and Multiviewer from Thor to connect multiple SDI sources and output them in any configuration that suits your production. Toggle between switcher or multiview modes and utilize the onboard 16 SDI inputs and 16 SDI outputs to customize your broadcast. Two SDI ports and one HDMI port make up the multiview outputs. In multiview mode the unit supports 1080p60 video and in switcher mode it supports DCI 2Kp30.

Select between 20 preset multiview layouts and UMD overlays to create an arrangement of your choice. A 2″ LCD screen allows you to monitor the current program in the queue. Control the unit using its LAN connectivity, RS-422 port, or onboard controls. Redundant power supply ports provide a fail-safe in case of emergency.

Features at a Glance
  • SDI input signal auto detection and equalization
  • Supports level A and level B signals
  • Passes ancillary data and embedded audio
  • DVI-ASI interface compatible
  • Solo any multiview input signal in full screen using shortcut key
  • Signal status overlay displays SDI input signal status
  • 2-channel audio meter monitors audio status
  • Create custom UMD overlays up to 11 characters to indicate and mark the signal source info
  • Each window can display independent time code of SDI input signal
SKU: H-16X16SDI-MW-SW Category: Tag:
Processing
Switching Type
Pushbutton, Software
Processing Resolution
DCI 2K at 30
Color Processing
4:4:4YUV
4:4:4RGB
4:2:2YUV
Input
Video Inputs
16x BNC (3G-SDI, HD-SDI, SD-SDI) Female
Input Video Format
SDI
DCI 2K at 23.98/24/25/29.97/30 fps
DCI 2KPsF at 23.98/24/25/29.97/30 fps
1080p at 24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines
480i / 525 lines
Embedded Audio Input
SDI: 16-Channel
Output
Video Outputs
16x BNC Female
2x BNC Female
1x HDMI Female
Output Video Format
SDI
1080p 24/25/30/50/60 fps
1080i 50/60 fps
720p 50/60 fps
Connectivity
Other I/O
1x DE-9/DB-9 RS-422 Input
1x RJ45 Input
Video Standard Compliance
SMPTE 259M/292M/296M/372M/424M
Display
Display Size
2″
Hardware
Wi-Fi
No
Bluetooth
No
Power
Power I/O
2x Barrel Input
Power Consumption
Power Supply: 12 VDC at 5 A
Device: 36 W
Environmental
Operating Temperature
32 to 140°F / 0 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
Operating Humidity
0 to 90%
General
Rack Form Factor
1 RU
Dimensions
19 x 5.9 x 1.7″ / 482.5 x 148.6 x 44 mm
Weight
4.4 lb / 2 kg
