Thor 2-Channel 3G-SDI/HDMI H.264 IPTV Video Streaming Encoder

Add to Wishlist
Key Features
  • IPTV Video Streaming Encoder
  • 2 x 3G-SDI & 2 x HDMI Inputs
  • Resolutions up to 1080p60
  • LCD and Front Panel Control

9,999.00 د.إ

Add to Wishlist

The 2-Channel 3G-SDI/HDMI H.264 IPTV Video Streaming Encoder from Thor is a compact, dual-channel unit that features two HDMI and two 3G-SDI inputs for digital video sources up to 1080p60 and an IP output up to 1080p30. It offers front panel control with an LCD display to show settings and functions being accessed, but it can also be controlled using MNS (managed network services) via one of the unit’s two RJ45 ports. The other RJ45 port is for IP streaming and it supports UDP, RTP (unicast and multicast), and HLS protocols. The device supports H.264 video encoding with low latency and a bit rate of 2 to 14 Mb/s.

SKU: H-SPARTAN-2 Category: Tag:

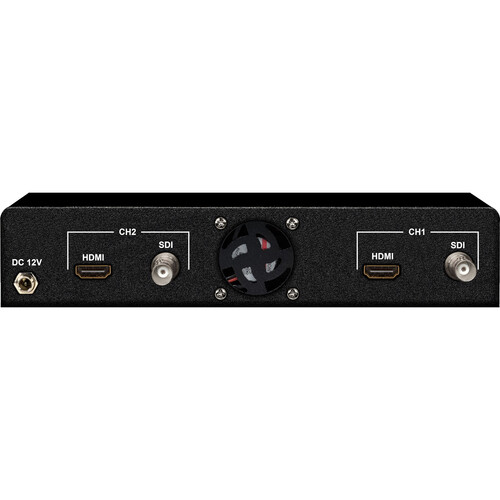

Inputs / Outputs
Video Inputs
2x BNC (3G-SDI) Female
2x HDMI Female
Audio Inputs
No
Video Outputs
1x RJ45 (RTMP/RTSP) Female
Audio Outputs
No
Other I/O
1x RJ45 Control
Expansion Slots
No
Format Support
Input Video Format
HDMI / SDI (4:2:2/4:2:0)
1080p at 50/60 fps
1080i at 50/60 fps
720p at 50/60 fps
576i / 625 lines
480i / 525 lines
Output Video Format
RJ45 (4:2:2/4:2:0)
1080p 30 fps
Standards
HDR Support
No
Dolby Compatibility
Dolby Digital
IP Streaming
Video IP Encoding
H.264
Audio IP Encoding
AAC, MPEG Layer 2
Power
Power I/O
1x Barrel (12 VDC at 2 A) Input
Environmental
Operating Temperature
41 to 104°F / 5 to 40°C
Operating Humidity
80%
General
Dimensions
8.7 x 8.1 x 1.7″ / 220 x 206 x 44 mm
Weight
2.2 lb / 1 kg
