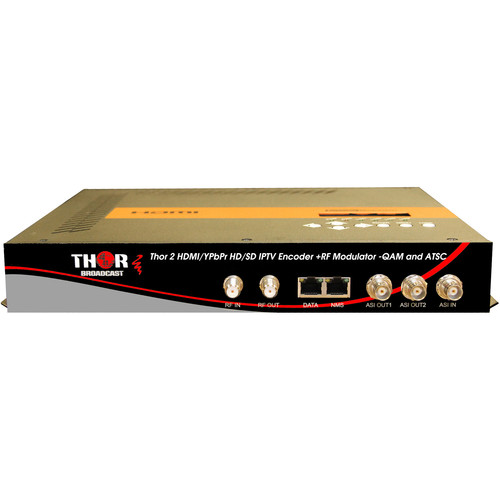

Thor 2-Channel HDMI/YPbPr/CVBS to Digital RF Encoder Modulator System

Add to Wishlist

د.إ13,299.00

Add to Wishlist

Thor QAM-IPLLĀ Overview

TheĀ 2-Channel HDMI/YPbPr/CVBS to Digital RF Encoder Modulator SystemĀ fromĀ ThorĀ integrates encoding (MPEG-2, MPEG-4/AVC H.264) and modulation to convert HDMI/YPbPr/CVBS signals to digital RF output. It is equipped with one ASI input and an output with two ASI ports and one IP port. The signal source could be from satellite receivers, CCTV cameras, Blu-ray players, OTA antennas, and more. The output signals are to be received by TVs, STB, and more with the same corresponding standard.

  • Suitable for metro, market halls, hotels, stadiums, and more
  • MPEG-2 HD and MPEG-4 AVC H.264 HD video encoding
  • DD AC3 (2.0), MPEG-4-AAC, MPEG-2-AAC, MPEG-1 layer II audio encoding
  • Supports DD AC3 (2.0/5.1/7.1) pass-through
  • Supports AC3 dialog normalization
  • Two HDMI/YPbPr/CVBS (Pr in) channels input
  • ASI input for remux; one RF input for RF mix
  • Four DVB-C and four ATSC RF outputs in one device
  • Two separate ASI outputs to mirror MPTS or one carrier programs
  • IP (two SPTS and one MPTS) output
  • Supports CC (closed captioning) EIA608
  • Supports low delay
  • Supports LCN (Logical Channel Number) and VCT (Virtual Channel Table)
  • LCD display, remote control, and firmware
  • Web-based NMS management; updates via Web
SKU: H-2ADHD-QAM-IPLL Category: Tag:
Video
Video HDMI
Encoding:
MPEG-2, MPEG-4 AVC/H.264

Interface:
2 x HDMI

Resolutions:
1080p 60/50 (for MPEG-4 AVC/H.264 only)
1080i 60/50
720p 60/50

Low Delay:
Normal, Mode 1, Mode 2, Manual

Aspect Ratios:
4:3, 16:9
CVBS
Encoding:
MPEG-2, MPEG-4 AVC/H.264

Interface:
2 x CVBS(RCA)

Resolutions:
576i 50
480i 60
YPbPr Interface
Encoding:
MPEG-2, MPEG-4 AVC/H.264

Interface:
2 x YPbPr (RCA)

Resolutions:
1080i 60/50
720p 60/50
Audio
HDMI
Encoding:
MPEG-1 layer II, MPEG-2-AAC, MPEG-4-AAC
DD AC3 (2.0)
DD AC3 (2.0/5.1/7.1) pass-through

Interface:
2 x HDMI
2 x SPDIF

Sample Rate: 48 kHz
Bit Rate: 64/96/128/192/256/320 kb/s
Audio In (L/R)
Encoding:
MPEG-1 layer II, MPEG-2-AAC, MPEG-4-AAC
DD AC3 (2.0)
DD AC3 (2.0/5.1/7.1) pass-through

Interface:
2 x Stereo
4 x Mono
2 x SPDIF

Sample Rate: 48 kHz
Bit Rate: 64/96/128/192/256/320 kb/s
DVB-C Modulator
Standard
J.83A (DVB-C), J.83B, J.83C
MER
ā‰„ 43 dB
RF Frequency
36 to 960 MHz, 1 kHz step
RF Output Level
-30 to -10 dBm (77 to 7 dbĀµV), 0.1 dB step
Symbol Rate
5.000 to 9.000 Ms/s adjustable
RF Output
4 x DVB-C adjacent carriers, combined output
Constellation
J.83A: 16/32/64/128/256 QAM
J.83B: 64/256 QAM
J.83C: 64/256 QAM
Bandwidth
J.83A: 8M
J.83B: 6M
J.83C: 6M
ATSC Modulator
Standard
ATSC A/53
Constellation
8 VSB
RF Output Level
-30 to -10 dBm (77 to 97 dbĀµV), 0.1 dB step
MER
ā‰„ 42 dB
RF Frequency
36 to 960 MHz, 1 kHz step
RF Output
4 x ATSC adjacent carriers, combined output
System
Local Interface Control
LCD and control buttons
Remote Management
Web NMS
Stream Output Format
Two separate ASI outputs (BNC type, 100M)
IP (2 x SPTS and 1 x MPTS) over UDP/RTP out (RJ45, 100M)
Interface
NMS Interface: RJ45, 100M
Language
English
General
Power Supply
100 to 240 VAC
Operation Temperature
32 to 113Ā°F / 0 to 45Ā°C
Dimensions
13.1 x 9.1 x 1.7″ / 33.3 x 23.2 x 4.4 cm
Weight
5.5 lb / 2.5 kg
Packaging Info
Package Weight
6.4 lb
Box Dimensions (LxWxH)
18 x 8 x 4″
