Thor 4-Channel HD-SDI to ATSC Encoder, Modulator, and IPTV Streamer


Key Features
  • HD-SDI Encoder, Modulator, IPTV Streamer
  • Broadcast HD Video on ATSC RF Antenna
  • 1 x ASI BNC, 4 x HD-SDI BNC Inputs
  • 1 x RF, 2 x ASI BNC Outputs
  • 2 x RJ45 for IPTV and NMS
  • 70 ms Low Latency for Live Events
  • HTTP Management GUI
  • 4 x BNC Cables and Power Cord Included

AED24,499.00

Thor ATSC-IPLLĀ Overview

Broadcast HD-SDI video over North American ATSC RF tuners and IPTV with theĀ H-4SDI-ATSC-IPLL 4-Channel HD-SDI to ATSC Encoder, Modulator, and IPTV StreamerĀ fromĀ Thor. The H-4SDI-ATSC-IPLL can encode, modulate, send via IPTV server individually, or perform all three tasks at the same time. Input up to four 3G-SDI signals via four BNC ports or one 120 Mb/s ASI input, and output via one RF or two muxed 19 Mb/s ASI outputs.

The encoder supports all standard HDTV resolutions, and it’s well suited for live events thanks to its low-latency encoding as low as 70 ms. The modulator allows signals to be distributed to ATSC tuners and provides 8VSB (8-level vestigial side band) for the combination of additional, locally integrated carrier content.

The IPTV stream out the RJ45 port supports unicast or multicast IGMP UDP, RTP, and RTSP output, MPEG-2 and H.264 video compression at up to 1080p60 resolution, and 48 kHz MPEG-1/2/4 AAC audio up to 320 kb/s. The H-4SDI-ATSC-IPLL is managed via an HTTP network management system (NMS) via an RJ45 port. Use the GUI to configure input and output encoding, format, bitrate, compression, frequency modulation, sub-channel information, and more.

A power cord and four HD-SDI BNC cables are included.

  • Combination encoder, modulator, IPTV server, and ASI mux
  • Distribute or broadcast any live HD-SDI digital video source as North American ATSC RF antenna and IPTV Channels
  • Four HD-SDI inputs support up to 3G-SDI at 1080p60; one ASI input supports SPTS or MPTS up to 120 Mb/s
  • Two 1-60 Mb/s ASI outputs, one 30-960 MHz RF output, RJ45 IP streaming out
  • Low latency between 70 to 110 ms, suitable for live events
  • Encodes with MPEG-2 or H.264 video codecs at 0.5 to 19 Mb/s
  • LCD display, HTTP GUI network management system (NMS) on port 80
  • Includes power cord and four HD-SDI BNC cables
SKU: H-4SDI-ATSC-IPLL Category: Tag:

Thor ATSC-IPLLĀ Specs

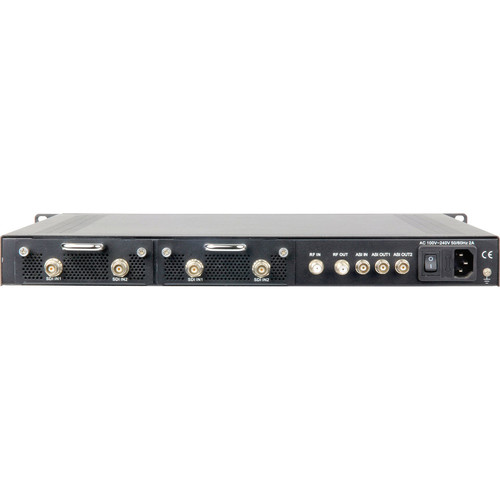

Inputs
4 x BNC: SDI, 3G-SDI, HD-SDI; 50 Ohms
1 x BNC: ASI, 1 to 120 Mb/s
1 x RF
Outputs
2 x BNC: ASI, 1 to 60 Mb/s
1 x RF
RF Frequency Range
30 to 960 MHz, 1 kHz Step
RF Power
5 to 35 dBm, Adjustable
Video Resolutions
1080p: 60/59.94/50 (H.264 Codec ONLY)
1080i: 60/59.94/50
720p: 60/59.94/50
Video Codec Support
MPEG-2 HD: 1.5 to 19.5 Mb/s
H.264 HD: 0.8 to 19.5 Mb/s
Supported Audio Codecs
MPEG-1 Layer II
MPEG-2 AAC
MPEG-4 AAC
Audio Sample Rate
48 kHz
Supported Audio Bit Rates
64, 96, 128, 192, 256, 320 kb/s
Management Protocols
HTTP Webserver, Port 80
IP Streaming
MPEG-TS MPTS over RTP, RTSP, UDP
Unicast and IGMP Multicast Support
Power
100 to 240 VAC, Auto-Switching
20 W
Operating Temperature
32 to 110°F / 0 to 43°C
Dimensions
19 x 11.8 x 1.7″ / 48.2 x 30 x 4.4 cm
Weight
7 lb / 3.2 kg
Packaging Info
Package Weight
12.74 lb
Box Dimensions (LxWxH)
22.75 x 22.5 x 5.5″
