Thor 8-Channel HDMI Digital RF Encoder Modulator (1 RU)


Key Features
  • 8 HDMI and 8 Baseband Video Inputs
  • RF Output
  • HDCP Compliant
  • Low 50 to 100ms Latency
  • Closed Caption Support
  • LCD Display and Front Panel Control
  • MPEG2 Video Encoding

AED21,299.00

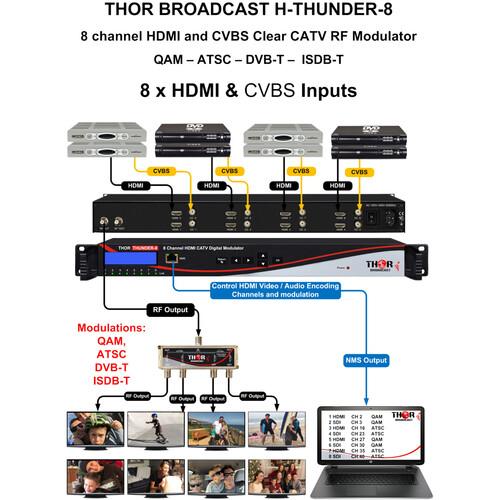

TheĀ 8-Channel HDMI Digital RF Encoder ModulatorĀ fromĀ ThorĀ is a 1 RU unit that outputs the RF signal via a single F-type connector and features eight HDMI inputs for digital video up to 1080p60 and eight RCA baseband video inputs that support analog sources or cameras, as well as closed captioning.

The HDCP compliant RF encoder/modulator offers front panel control with an LCD display to show settings and functions being accessed, but it can also be controlled using MNS (managed network services) via the unit’s RJ45 LAN port. It supports MPEG2 video encoding, AAC, and DD AC3 audio encoding, with a low latency of only 50 to 100 ms. The device receives updates via the network when connecting using the RJ45 port.

Key Features

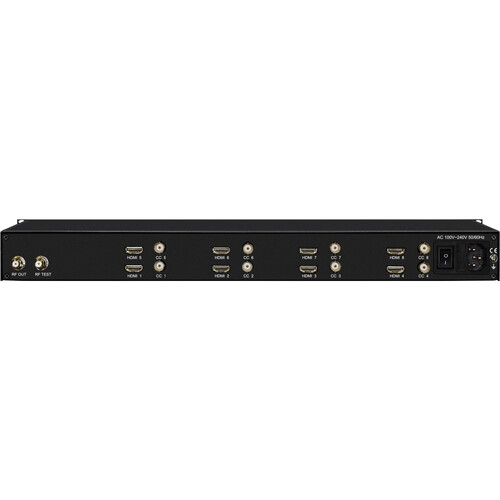

  • Eight HDMI inputs and eightĀ CVBS inputs via RCA
  • HDCP compliant with any HDMI source, such as DVD players, cable & satellite receivers
  • Resolutions up to 1080p60
  • MPEG2 video encoding
  • MPEG layer 2, AAC, and DD AC3 Audio Encoding
  • CC (closed captioning) EIA 608
  • LCN (logical channel number) support
  • DVB-C DIGITAL QAM, ATSC, DVB-T, ISDB-T RF in one device with modulation dynamic switching
  • NMS control via RJ45 LAN port
  • LCD display and front panel control
SKU: H-THUNDER-8 Category: Tag:
Display
Panel Type
LCD
Size
Not Specified by Manufacturer
Touchscreen
No
Inputs / Outputs
Video I/O
8x HDMI Input
8x RCA (Composite) Input
Power
Power Source
AC Input (Built-In)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Color
Black
Dimensions
19 x 12.9 x 1.7″ / 48.3 x 32.8 x 4.3Ā cm
Weight
Not Specified by Manufacturer
