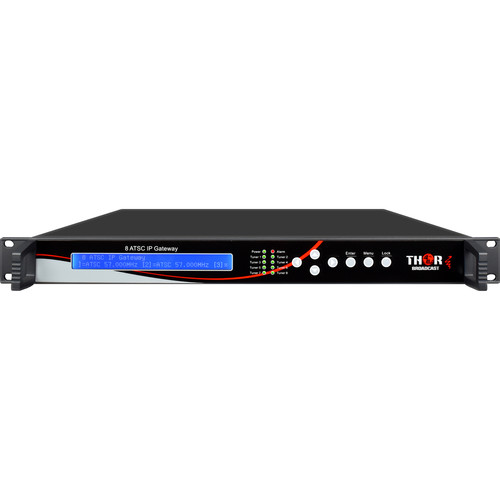

Thor 8 x ATSC Antenna Tuners to IPTV and ASI Output

Add to Wishlist

د.إ17,499.00

Add to Wishlist

Thor 8ATSC Overview

The 8 x ATSC Antenna Tuners to IPTV and ASI Output from Thor can convert all the TV programs inside the eight frequencies directly to IPTV multicast, unicast, or muxed ASI output. You can output up to 45 SPTS RTP/UDP multicast streams on any computer, tablet, mobile, or IP decoder.

  • Converts eight antenna RF to IPTV streaming SPTS and ASI
  • ASI and IP output
  • Output ASI MPTS data mux of selected TV services to feed any modulators/servers/transcoders/ASI inputs
  • Supports MPTS over UDP, RTP/RTSP output as mirror of ASI output (RJ45)
  • Integrated demodulating and multiplexing functions
  • You can select which channels to stream out
  • Supports multiplexing one program to all outputs
  • Supports closed captioning
  • Full IP control and network management through browser
  • LCD local control on the front panel
  • IPTV output unicast or multicast IGMP UDP
  • ASI output with multiplexer cherry picking
  • Low latency up to 10-20 ms available
  • AC3, MPEG2 audio
  • MPEG2 video or MPEG4 H.264 compression
SKU: H-8ATSC-IP Categories: , Tag:

hor 8ATSC Specs

Input
8 x ATSC antenna
1 x ASI
Video Codecs
MPEG-2 HD 1.5-19.5 Mb/s
H.264 HD 0.8-19.5 Mb/s
Audio Codecs
MPEG-1 layer 2
MPEG-2 AAC
MPEG-4 AAC AC3 Dolby
Audio Sample Rate
48 kHz
Audio Bit Rates
64, 96, 128, 192, 256, and 320 kb/s
Modulation
Modulation Standard: ATSC, DVB-C, DVB-S2
RF Frequency Range
30-960 MHz for QAm and ATSC
850-2100 MHz for L-band
RF Input Power Operating Range
5-35 dBmV
DVB-ASI
Output:
2 x BNC (maximum 180 Mb/s)

Input:
BNC (1-120 Mb/s)
Programs selected by PID
Programs muxed to all outputs
IPTV
Output: MPTS over UDP, RTP/RTPS out as mirror of ASI output (RJ45)
Power Input
100-240 VAC auto-switching
20 W
Operating Temperature
32 to 110°F / 0 to 43.3°C
Dimensions
19 x 17 x 2″ / 48.3 x 43.2 x 5.1 cm
Weight
9 lb / 4.1 kg
