Thor 8 x QAM Cable Tuners to IPTV Gateway System


Key Features
  • Transmit QAM TV Signals over IP/Internet
  • 8 x Independent QAM Tuner Inputs
  • IP RTSP/RTMP/UDP Multi/Unicast Output
  • For Antenna/Satellite Dish/Cable Sources
  • 1 RU Rackmount Design
  • Dedicated Network Management Port

AED17,499.00

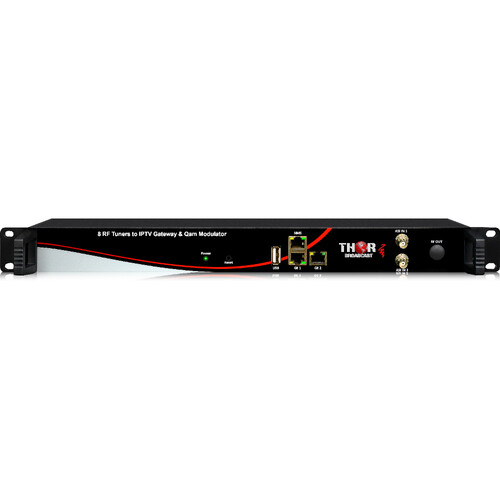

Thor 8QAM-IPĀ Overview

If you need to decode over-the-air or cable QAM signals to integrate them into your IP streaming workflow, theĀ 8 x QAM Cable Tuners to IPTV Gateway SystemĀ fromĀ ThorĀ is a single box that can convert DVB-C QAM Annex A or B signals to IPTV signals into a TS, SPS, multicast, or unicast output stream. This rackmount unit features eight QAM inputs that support various source signals such as antenna, satellite dish, or cable TV for broadcast facilities.

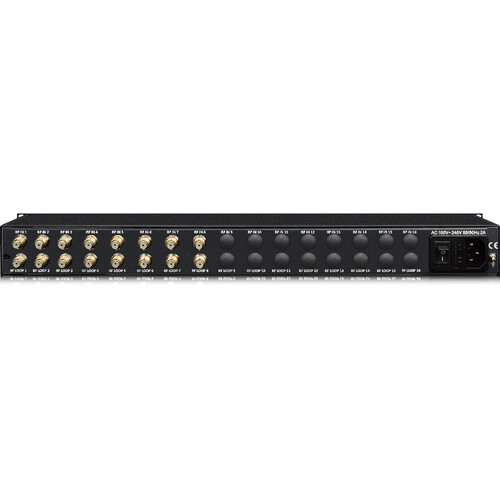

The unit features very low latency and two RJ45 Ethernet outputs for either IP TS or SPTS mode with converted subchannels or MPTS mode with a single stream. There are also eight QAM loop outputs on the back of the unit. A dedicated management Ethernet port allows you to configure and manage the unit.

Key Features
  • Eight independent off-air QAM tuners input to IP TS SPTS multicast or unicast outputs
  • Eight RF loop outputs per tuner
  • Each QAM frequency subchannel transport stream can be cherry-picked and encapsulated to IP Multicast or unicast stream
  • Select which channels to stream out via SPTS
  • Integrated demodulating and multiplexing functions
  • Closed captions supported
  • Multiplex one program to all outputs
  • Full IP control and Network Management through browser
  • Low latency of 10 to 20 ms
  • Supports AC3 and MPEG2 audio and MPEG2 and MPEG4 H.264 video
SKU: H-8QAM-IP Category: Tag:
Power
Power Source
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
20 W
Environmental
Operating Temperature
32 to 110°F / 0 to 43°C
Physical
Dimensions
19 x 9 x 3″ / 48.3 x 22.9 x 7.6Ā cm
Weight
6Ā lb / 2.7Ā kg
